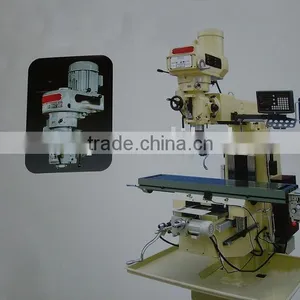

Help CenterTurret Milling Machine SWX-525
Related Products
-
Vertical Milling Machine SWX223NegotiableMOQ: 1 Set -
China Turret Milling Machine (SWX-425)NegotiableMOQ: 1 Set
-
Milling Machine SWX-630NegotiableMOQ: 1 Set
-
Vertical Turret Milling Machine SWX-630NegotiableMOQ: 1 Set
-
Vertical Milling Machine/Milling Machine/Miller SWX-630NegotiableMOQ: 1 Set
Specifications
Turret Milling Machine1.table size:1370x254mm
2.travel:780/865x407x407mm
3.ram travel:610mm
4.weight:1450kg
one.SWX-525 Features:
1.X axis and Y axis adopt the square lead rail.And the rigidity is good.
2.The wear resistence of X axis and Y axis is excellent by heating tratement of high-frequency.That may increase the life span.
3.It adopts the high faction cast iron.So it doesn't distort after two processing.
4.Adopting meehanite casting, precision bored and honed milling head,precision hardened and ground ways and table.
two.Specifications:
Model |
Unit |
SWX-525 |
Spindle taper |
|
ISO40 |
Spindle speeds |
|
80-5440(16 steps) 60-4200(variable) |
Quill diameter |
mm |
Ø 86/ Ø 105 |
Quill travels |
mm |
127 |
Quill feeds |
mm |
0.04/0.08/0.15 |
Head tilt |
degree |
±45°F/B,±90°L/R |
Spindle motor |
HP |
3HP/5 HP |
Table size |
mm |
1370×254/300(10"/12"×54") |
Longitudinaltravel(X) |
mm |
780/865 |
Cross travel(Y) |
mm |
407 |
Vertical travel(Z) |
mm |
407 |
T-slot |
mm |
16×3×64 |
Ram travel |
mm |
610 |
Weight |
kg |
1450 |
three.Accessories:
Model |
Standard Accessories |
Special Accessories |
|
SWX-525 |
Hand oil lubricator |
Clamping board |
Pull rod |
6 machine vice (angle lock or hydraulic) |
|
Toolbox with tools |
Automatic feed equipment of table(L/R or F/B) |
|
Wayover forward and back |
Collets of R8 (7PCS) |
|
Operatation Manual |
Tool holder and collets of NT30 (7PCS) |
|
Electrical box |
Tool holder and collets of NT40 (7PCS) |
|
Worklamp |
Colling system and waterpond |
|
|
Optical scale |
|
|
Horizontal milling device |
four.Production capacity
|
Company Brief Nantong sunway technology company is established in 2000year.We are the professional manufacturer of vertical machining center,cnc gantry milling machine,cnc engraving and milling machine,electrical discharge machine and so on.Our machine have been exported to Europe,America,Southeast Asia,Korea and many foreign countries,we also supply OEM service. |
|
|
Assembly shop of vertical machining center We follow strict assembly technique after we check each parts are eligible.
|
|
|
Assembly shop of cnc engraving and milling machine
|
|
|
Complete engraving and milling machine After finishing leave factory testing,we will use waterproof and anti extrusion to protect the machine’s safety during transportation. |
|
|
Gantry milling machine We could supply OEM service and custom design service. |
|
|
Electrical discharge machine which will be exported to SAMSUNG,Korea Our electrical discharge machine have exported to SAMSUNG(Korea), MAKINO(Japan),Brazil,Argentina,Mexico,Turkey.All machines runs well,they have not broken till now,we always trust”no maintenance service is the best service”. |
|
|
Metal plate Our metal plate use laser cutting and international advanced welding technique,while supply elegant appearance for surface of machine. |
|
|
Casting Our casting are made for resin sand,grade HT250,we are the sole casting factory which exported to DMG(German) in our domestic and meanwhile we are the supplier of Foxconn(supplier of Apple Inc) and supply 6000 sets casting to Foxconn. |
|
|
Gantry machining center Using famouse brand gantry machining center,is the key point to guarantee the precisio and surface finishment of machining face. |
|
|
Detection of assembling In strict accordance with German standard to do precision detection onour linear rail,ball screw,table surface, to guarantee the integral precision of machine. |
|
|
Precision detection
|
|
|
Laser inspection equipment Owning the advanced laser inspection equipment,which was made in USA,are stable guarantees of improving the quality and precision of machines..
|
|
