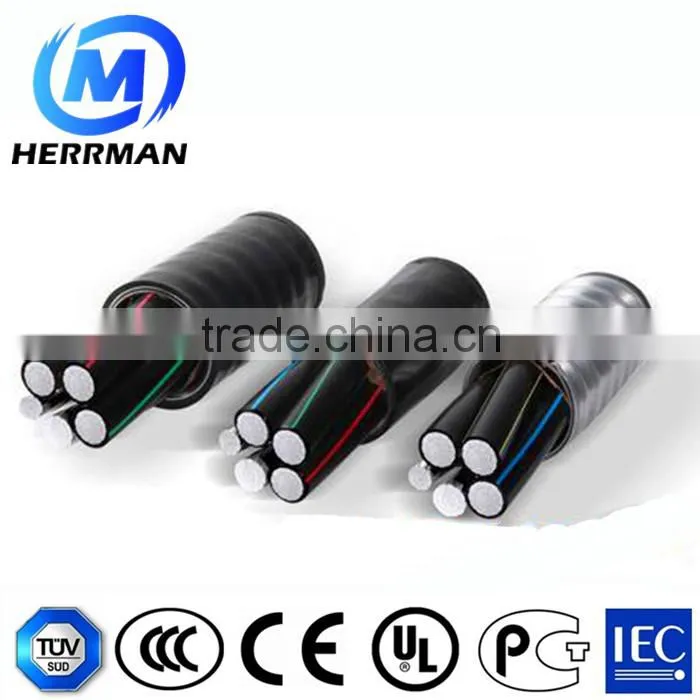

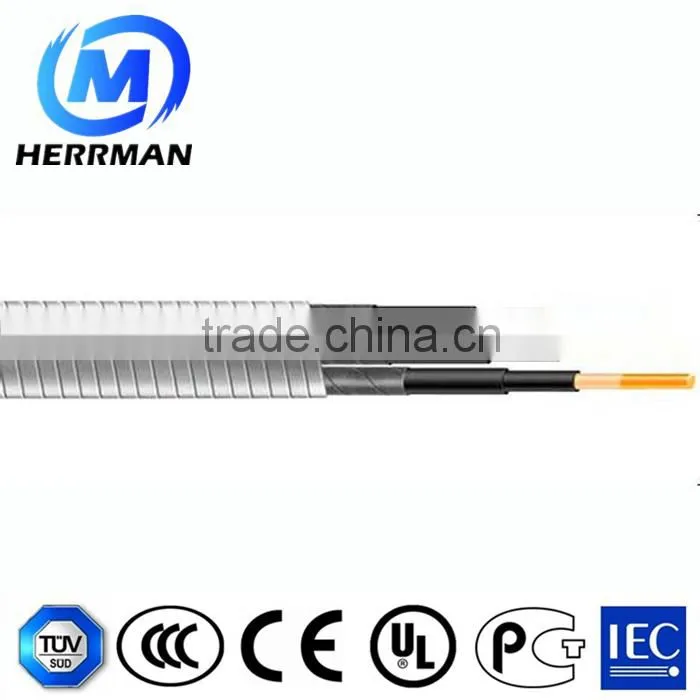

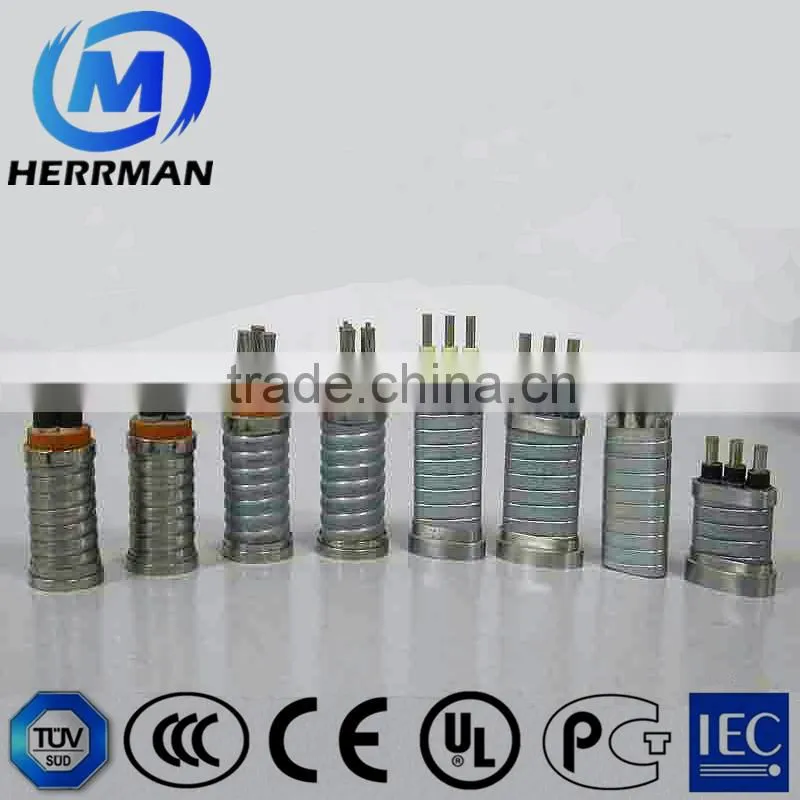

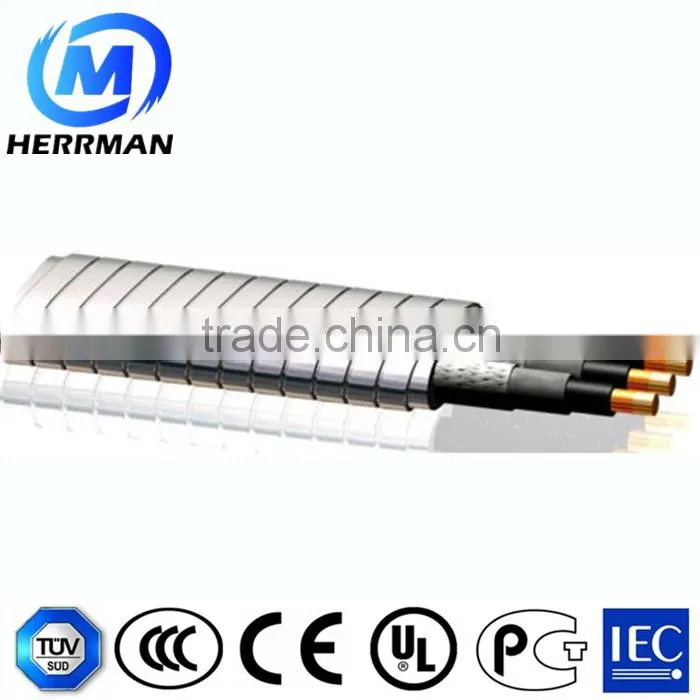

Alumium Alloy Conductor Alumium Alloy Tape Armoured Submersible Cable
1. Implemented Standard
Enterprise standard
2. Product Introduction
The crosssection of conductor is 42mm2 and below. The well temperature is from 50℃ to 180℃, the max. continuous working temperature of conductor is 204℃. The insulation material that can be used is as below: PP, EPR, polyimideF46, fluoroscopic, XLPE, etc. The material of inner jacket includes NBR, compound of the neoprene and PVC, EPR, fluoroplastics, lea, etc. The outer sheath material is as the galvanized steel tape, stainless steel tape, etc. All kinds of cables for submersible oil pump can be developed according to the customer’s requirements.
3. Type and Name
Cable type |
Description |
Max working temperature℃ |
Product range (cross section) mm2 |
QYPN |
PP insulated and NBR sheathed, galvanized steel tape interlocked armoring, cable for submersible oil pump |
96 |
10,13,16,20,33,42 |
QYPNY |
PP insulated and NBR sheathed, galvanized steel tape interlocked armoring, round cable for submersible oil pump |
96 |
10,13,16,20,33,42 |
QYEN |
EPR insulated and NBR sheathed, galvanized steel tape interlocked armoring, cable for submersible oil pump |
140 |
10,13,16,20,33,42 |
QYENY |
EPR insulated and NBR sheathed, galvanized steel tape interlocked armoring, round cable for submersible oil pump |
140 |
10,13,16,20,33,42 |
QYEE |
EPR insulated and sheathed, galvanized steel tape interlocked armoring, cable for submersible oil pump |
175 |
10,13,16,20,33,42 |
QYEEY |
EPR insulated and sheathed, galvanized steel tape interlocked armoring, round cable for submersible oil pump |
175 |
10,13,16,20,33,42 |
QYEQ |
EPR insulated and lead sheathed, galvanized steel tape interlocked armoring, cable for submersible oil pump |
204 |
10,13,16,20,33,42 |
QYYEQ |
Polyimide-F46 composite film and EPR insulated, lead sheathed, galvanized steel tape interlocked armoring, cable for submersible oil pump |
232 |
10,13,16,20,33,42 |
QYYEEY |
Polyimide-F46 composite film and EPR insulated, EPR sheathed, galvanized steel tape interlocked armoring, round cable for submersible oil pump |
204 |
10,13,16,20,33,42 |
QYJEQ |
Polyimide-F46 composite film and EPR insulated, lead sheathed, galvanized steel tape interlocked armoring, lead wire for submersible oil pump |
200 |
10,13,16,20,33 |
