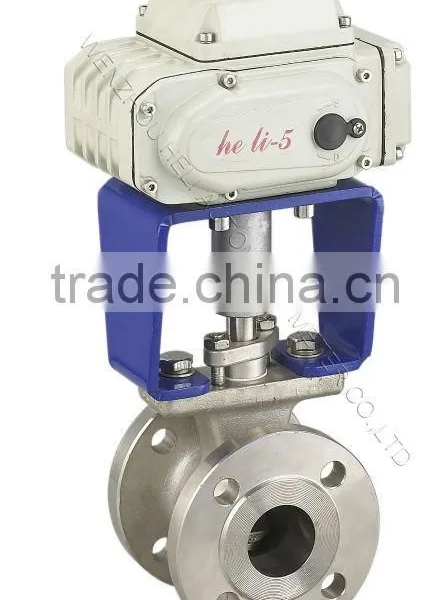

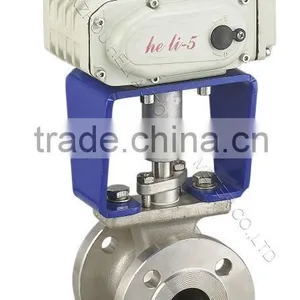

Electric V-Type Adjustable Ball Valve

Name: Electric V-Type Adjustable Ball Valve
Brand: HeLi
SKU: 117246347

US$ 1 - 1,000 MOQ: 1 Piece

Key Specifications

Standard or Nonstandard:

Standard

Structure:

Ball

Pressure:

High Pressure

Wenzhou Heli Automatic Meter Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Standard or Nonstandard Standard

Structure Ball

Pressure High Pressure

Power Hydraulic

Material Casting

Temperature of Media Medium Temperature

Media Water

Port Size DN15~250

Place of Origin Zhejiang, China

Model Number HL-10

Brand Name HeLi

Product Description Model	HL-10
Power	DC12V		DC24V	DC220V	AC24V		AC110V	AC220V	AC380V
Motor power	40W,23W
Rated current	4.8A		2.4A	0.32A	3A		0.64A	0.24A	0.19A
Output torque	100Nm				50Nm/60Nm/100Nm
Action time	10S				13S/15S/20S/30S
Circuit control		B,S,R,H,A,K,D,T
Rotary angle		0-90°
Weight		4 Kg
Voltage-with standing value		500VAC/1min				1500VAC/1min
Insulated resistance		100MΩ/300VDC				100MΩ/500VDC
Protection class		IP67
Surrounding Temperature		-25°C~60°C(The other temperature can be customized)
Installation angle		Any angle
Case material		Aluminium die-casting components
Optional function		Overload protection, heater

Nominal diameter DN(mm)		DN15~DN250
Nominal pressure		PN1.6~6.4MPa
Nominal pressure	strength test	PN2.4~9.6MPa
	seal test	PN1.76~7.0MPa
Materials/Code name		C	P	R
Major parts	Valve body	WCB	304	304
	Valve ball	WCB	304	304
	Valve Stem	stainless Steel
	O-ring	PTFEStainless steelcemented carbide
	Packing	PTFEflexible graphite
Applicable Operating Mode	Applicabe medium	Watersteamoils	nitrose	acetic acid
	Suitable temperature	-28~400°C	-28~500°C
End connection	Wafer typeflange typeflange by JB79-59 standard
