Home > Industrial Equipment & Components > Valve > Ball Valve > Hard Seal Butterfly Valve With Electric Actuator

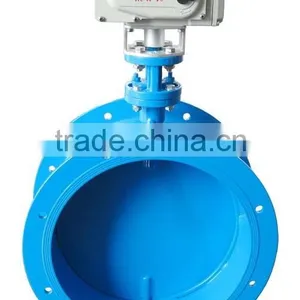

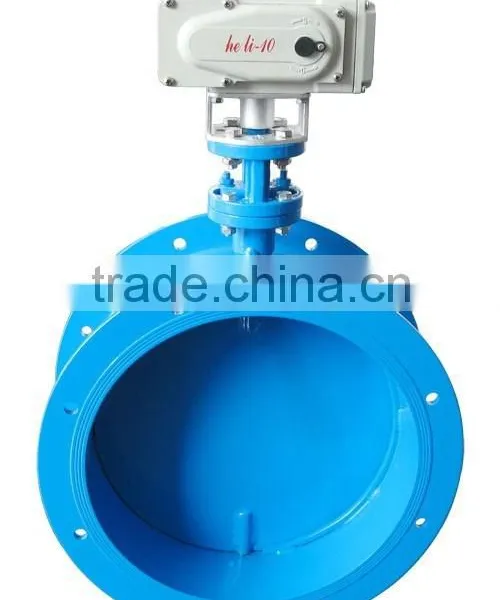

Hard Seal Butterfly Valve With Electric Actuator
US$ 1 - 1,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Butterfly
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wafer PN16 Electric Butterfly Valve With CEUS$ 1 - 500MOQ: 1 Set -
Soft Seal Electric Butterfly ValveUS$ 150 - 150MOQ: 10 Sets
-
High Performance Motorized Butterfly Valve With CEUS$ 150 - 300MOQ: 10 Sets
-
Electric Metallic Seal Wafer Butterfly ValveNegotiableMOQ: 1 Set
-
Electric Metallic Seal Wafer Butterfly ValveUS$ 1 - 1,000MOQ: 1 Piece
Standard or Nonstandard
Standard
Structure
Butterfly
Pressure
Medium Pressure
Power
Other, Electromotion
Material
Casting
Temperature of Media
Medium Temperature
Port Size
150Nm/250Nm/300Nm/500Nm
Place of Origin
Zhejiang, China
Model Number
HL-50
Brand Name
HELI
Item:hard seal butterfly valve
|
Model
|
HL-50 |
||||||
Power |
DC24V |
DC220V |
AC24V |
AC110V |
AC220V |
AC380V |
|
Motor power |
90W |
||||||
Rated current |
1A |
0.9A |
8.5A |
2A |
0.92A |
.45A |
|
Output torque |
150Nm/250Nm/300Nm/500Nm |
||||||
Action time |
9S/15S/20S/30S/60S |
||||||
Circuit control |
B,S,R,H,A,K,D,T |
||||||
Rotary angle |
0-90° |
||||||
Weight |
7.8 Kg |
||||||
Voltage-with standing value |
500VAC/1min |
1500VAC/1min |
|||||
Insulated resistance |
100MΩ/300VDC |
100MΩ/500VDC |
|||||
Protection class |
IP67 |
||||||
Surrounding Temperature |
-25°C~60°C(The other temperature can be customized) |
||||||
Installation angle |
Any angle |
||||||
Case material |
Aluminium die-casting components |
||||||
Optional function |
Overload protection, heater |
||||||
