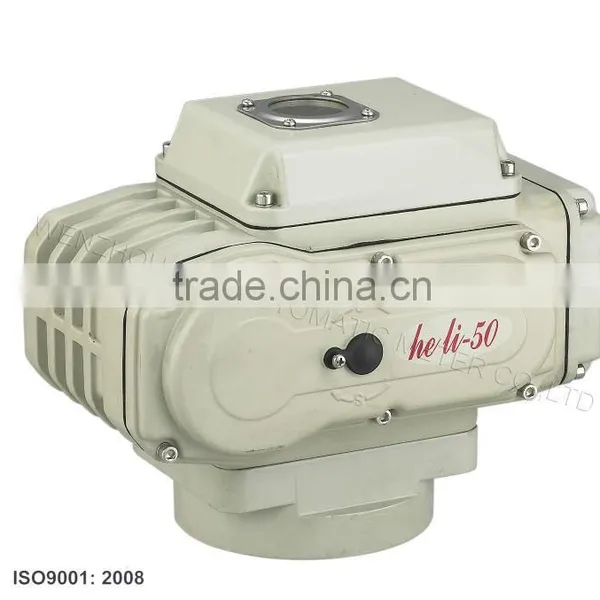

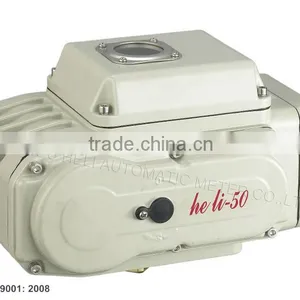

Help CenterElectric Rotary Actuators With Proportion Control
Related Products
-
Smart Part Turn Electric Valve Actuator / Device (HL-50)US$ 1 - 620MOQ: 1 Set -
Modulating Type Electric Valve Actuator / Device (HL-100)US$ 1 - 820MOQ: 1 Set
-
Perfect Electric Actuator for ISO5211US$ 1 - 360MOQ: 1 Set
-
Electric Valve Actuator/Device(HL-10)US$ 1 - 460MOQ: 1 Set
-
12VDC Modulating Type Electric Valve Actuator With 4~20mAUS$ 1 - 460MOQ: 1 Set
Electric Actuator
1. Detailed information
|
Model
|
HL-50 |
||||||
Power |
DC24V |
DC220V |
AC24V |
AC110V |
AC220V |
AC380V |
|
Motor power |
90W |
||||||
Rated current |
1A |
0.9A |
8.5A |
2A |
0.92A |
.45A |
|
Output torque |
150Nm/250Nm/300Nm/500Nm |
||||||
Action time |
9S/15S/20S/30S/60S |
||||||
Circuit control |
B,S,R,H,A,K,D,T |
||||||
Rotary angle |
0-90° |
||||||
Weight |
7.8 Kg |
||||||
Voltage-with standing value |
500VAC/1min |
1500VAC/1min |
|||||
Insulated resistance |
100MΩ/300VDC |
100MΩ/500VDC |
|||||
Protection class |
IP67 |
||||||
Surrounding Temperature |
-25°C~60°C(The other temperature can be customized) |
||||||
Installation angle |
Any angle |
||||||
Case material |
Aluminium die-casting components |
||||||
Optional function |
Overload protection, heater |
||||||
2. Packing
4PCS/62*45*23.5/CTN 33KGS/CTN
3. Delivery time
refer to quantity and production department plan
4.Payment Terms
We do payment in L/C at sight
But always is in T/T,30% deposit and 70% balance before shipment.
5.Supply Ability
500 Set/Sets per Week 2,000pcs/month
6. Sample:
We may need 7 days to make the sample with 1 pc ,
also we need the sample fee and the express fee,but there would be return after place order.
7. MOQ: 10pcs

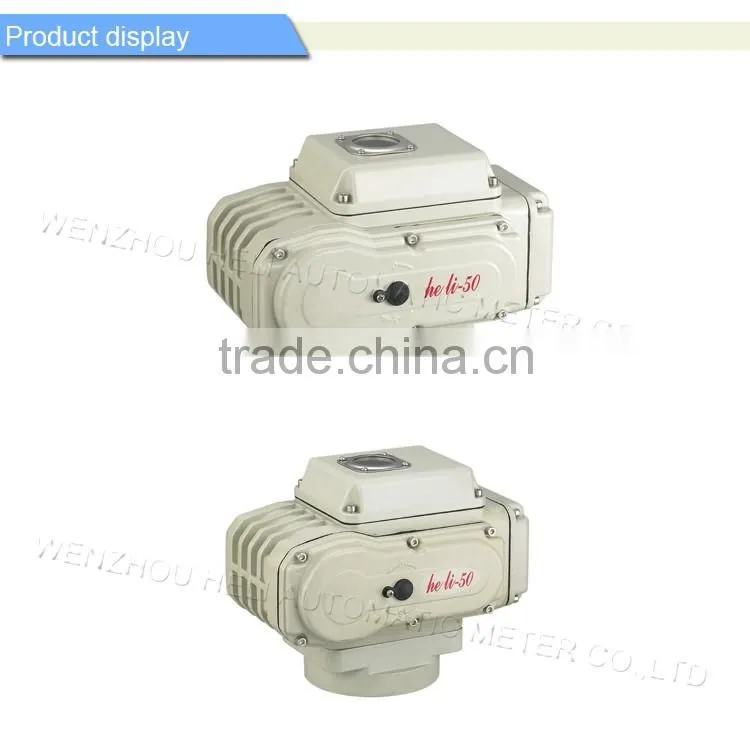

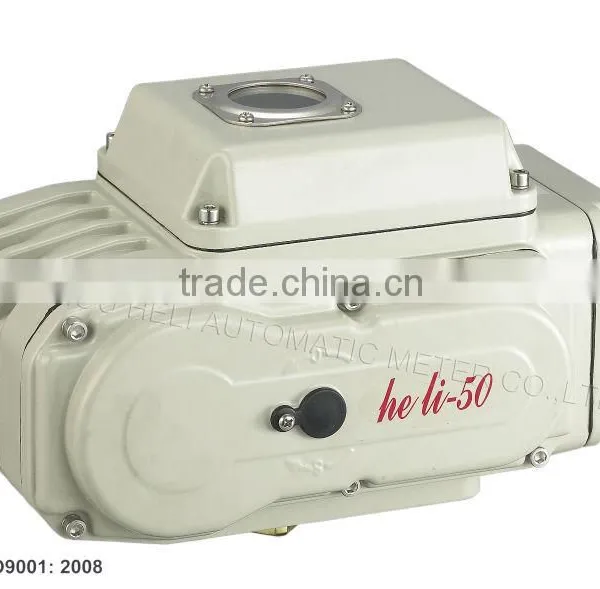

8. Detailed pictures
