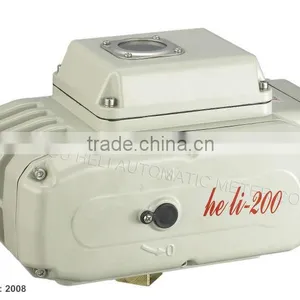

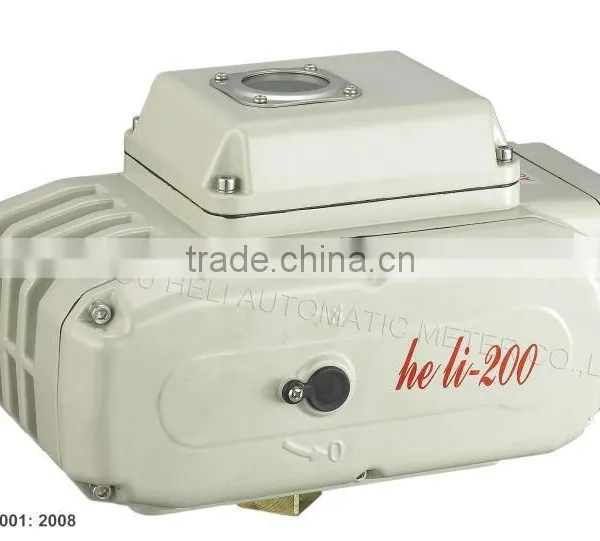

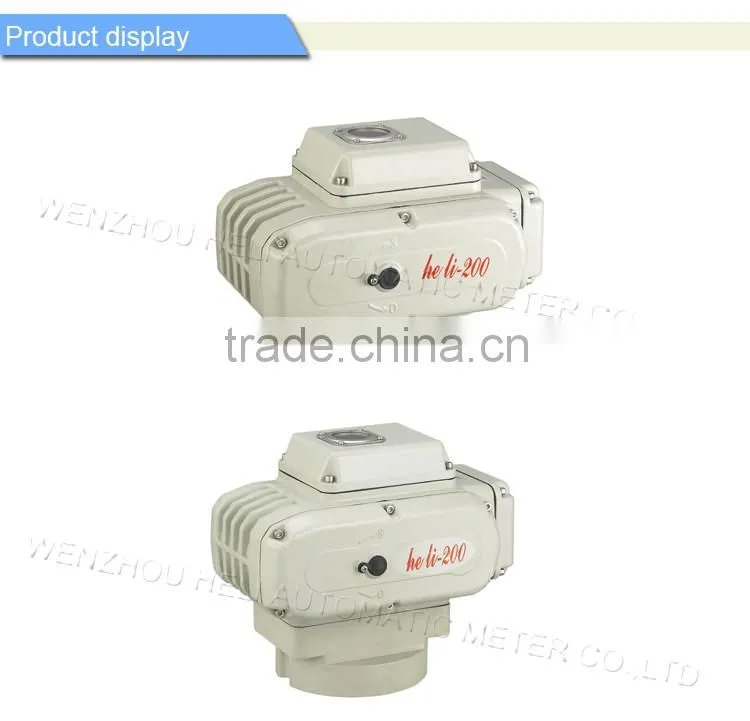

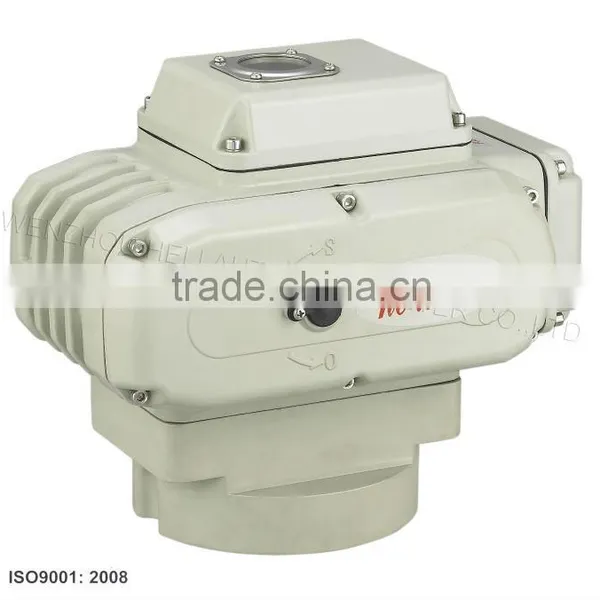

Electric actuator valve
*0~90 °rotary
*Guarantee:1 year
*Excellent sealing
*Long time life
*12VDC,24VDC,24VAC,110VAC,220~240VAC,220~240VDC,380~420VAC,50/60HZ
*WCB,SS304,SS316
*ON/OFF control ,passive contact control,position signal control,opens degree signal,Modulating control
*T/T, L/C, Western Union
*high quality,low noise
*body material: aluminium die-casting components
*space heater is optional

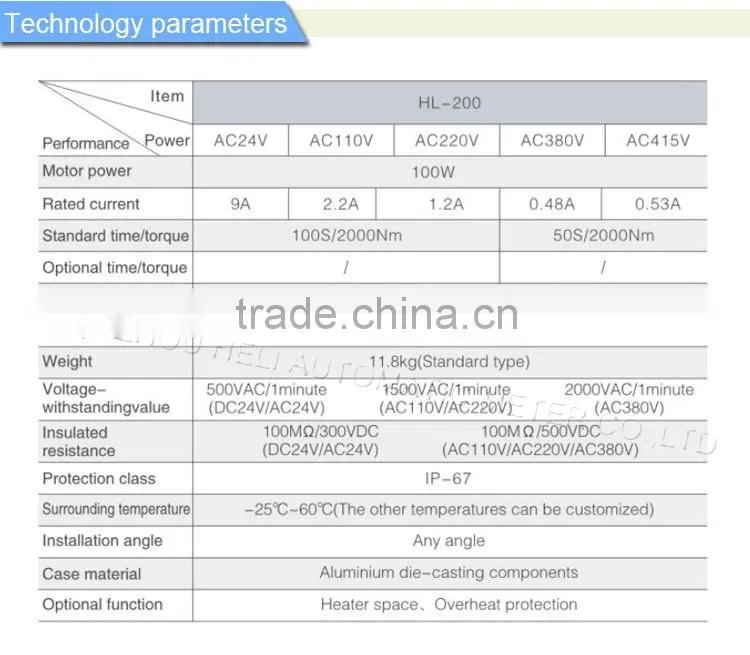

Model |
HL-200 |
||||
Voltage |
AC24V
|
AC110V |
AC220V
|
AC380V |
|
Motor Power |
100W |
||||
Rated current |
9A
|
2.2A |
1.2A
|
0.48A |
|
Output Torque |
2000N.m |
2000N.m |
|||
Action Time |
100S |
50S |
|||
Rotary angle |
0~90° |
||||
Weight |
11.8kg |
||||
Voltage-with standing valve |
1500VAC/1minute |
||||
Insulated resistance |
100 MΩ/500VDC |
||||
Protection Class |
IP67 |
||||
Surrounding temperature |
-25°C~60°C(The other temperatures can be customized) |
||||
Installation angle |
Any angle |
||||
Case material |
Aluminium-casting components |
||||
Optional function |
Overload protection |
||||
