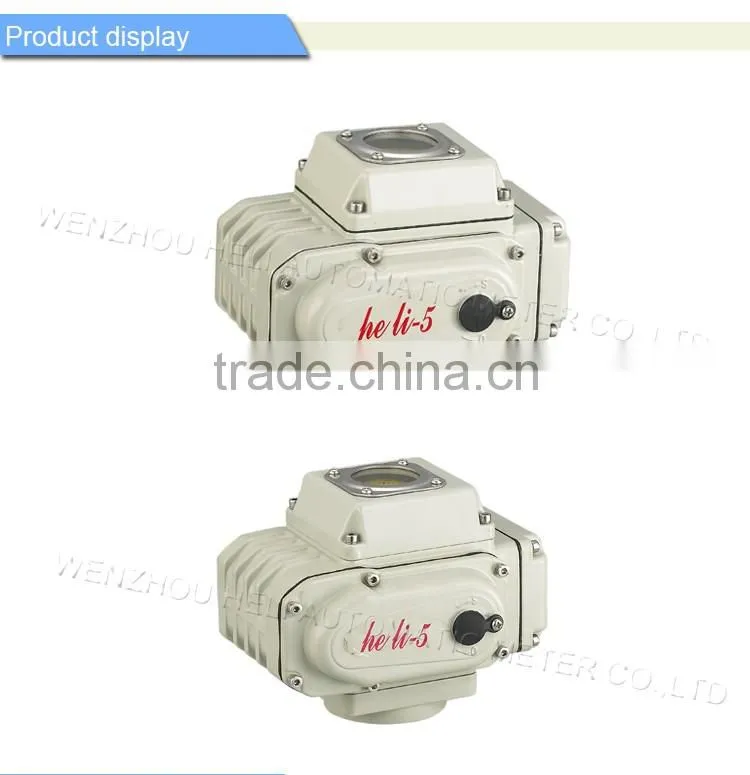

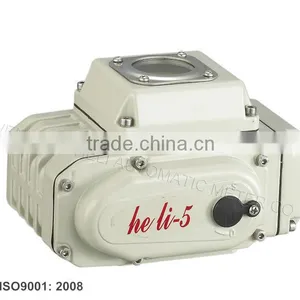

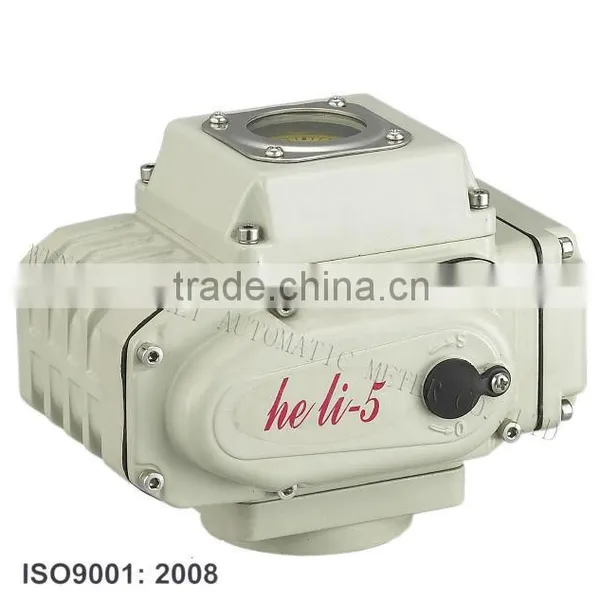

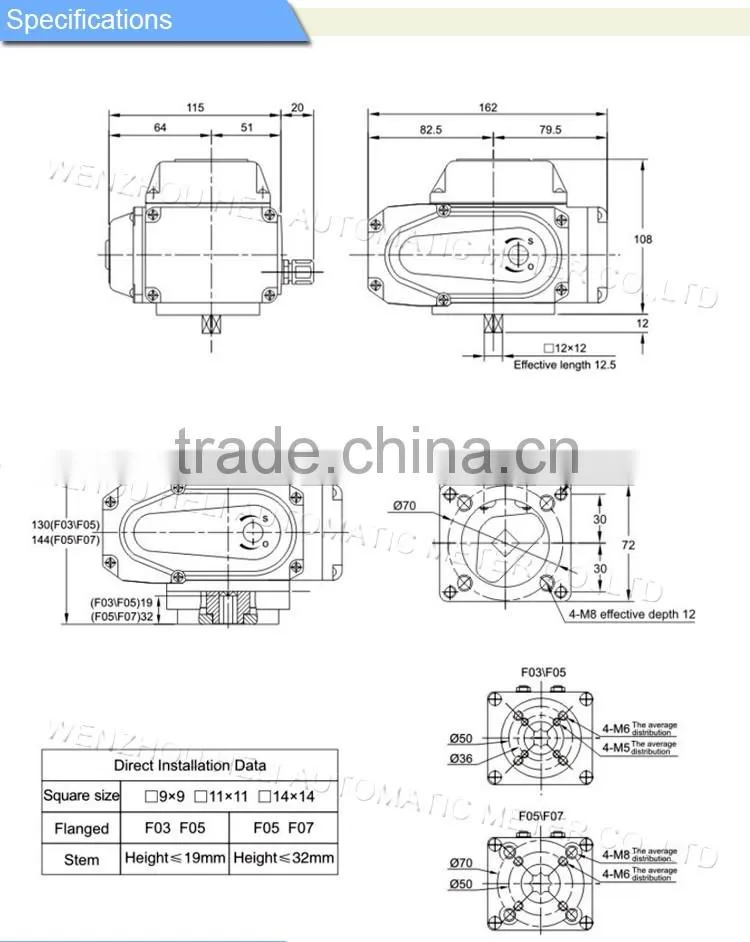

Help CenterRotary Electric Valve Actuator (HL-5)
Related Products
-
DC24V Rotation Electric Valve Actuator (HL-200)US$ 1 - 500MOQ: 1 Piece -
12VDC Rotary Electric Valve Actuator (HL-200)US$ 1 - 500MOQ: 1 Piece
-
High Quality Direct Installation Rotary Electric Actuator(HL-10)US$ 1 - 460MOQ: 1 Piece
-
OEM Electric Actuators With On-off Control (HL-100)US$ 1 - 820MOQ: 1 Piece
-
Electric Actuators With Proportion ControlUS$ 1 - 910MOQ: 1 Piece
Electric actuator
*Excellent sealing
*Long time life
*12VDC,24VDC,24VAC,110VAC,220~240VAC,220~240VDC,380~420VAC,50/60HZ
*WCB,SS304,SS316

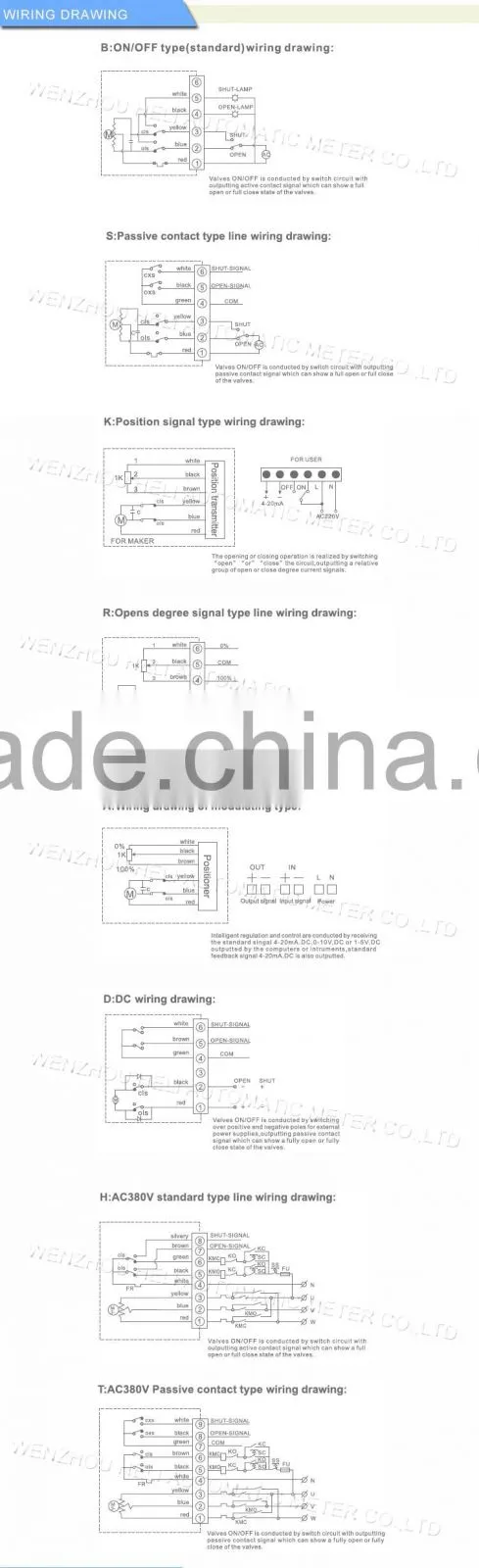

*ON/OFF control ,passive contact control,position signal control,opens degree signal,Modulating control
*T/T, L/C, Western Union
*high quality,low noise

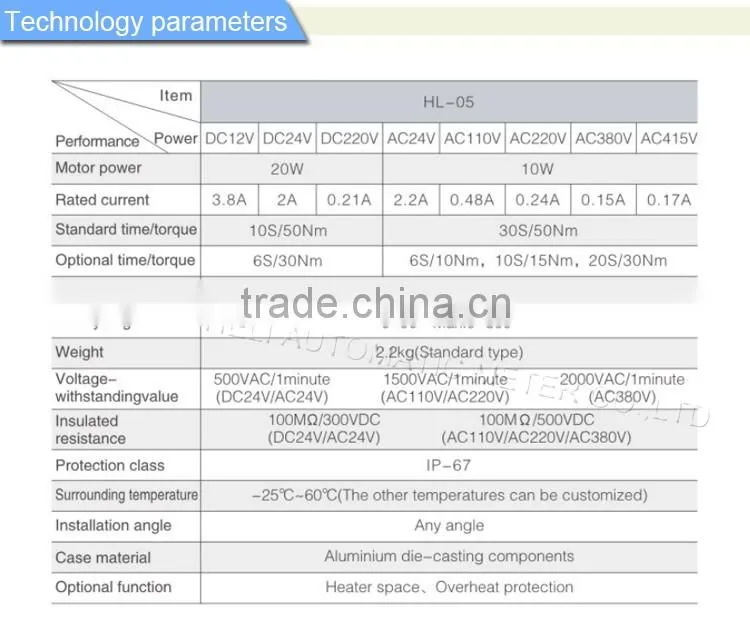

Model |
HL-05 |
||||||
Voltage |
DC12V |
DC24V |
DC220V |
AC24V |
AC110V |
AC220V |
AC380V |
Motor Power |
10W,20W |
||||||
Rated current |
3.8A |
2A |
0.21A |
2.2A |
0.48A |
0.24A |
0.15A |
Output torque |
30N.m/50N.m |
15N.m/30N.m/50N.m |
|||||
Action time |
6S/10S |
10S/20S/30S |
|||||
Rotary angle |
0~90° |
||||||
Weight |
2.2kg |
||||||
Voltage-with standing valve |
500VAC/1minute |
1500VAC/1minute |
|||||
Insulated resistance |
100 MΩ/300VDC |
100 MΩ/500VDC |
|||||
Protection Class |
IP67 |
||||||
Surrounding temperature |
-25°C~60°C(The other temperatures can be customized) |
||||||
Installation angle |
Any angle |
||||||
Case material |
Aluminium-casting components |
||||||
Optional function |
Overload protection function, Heater |
||||||
