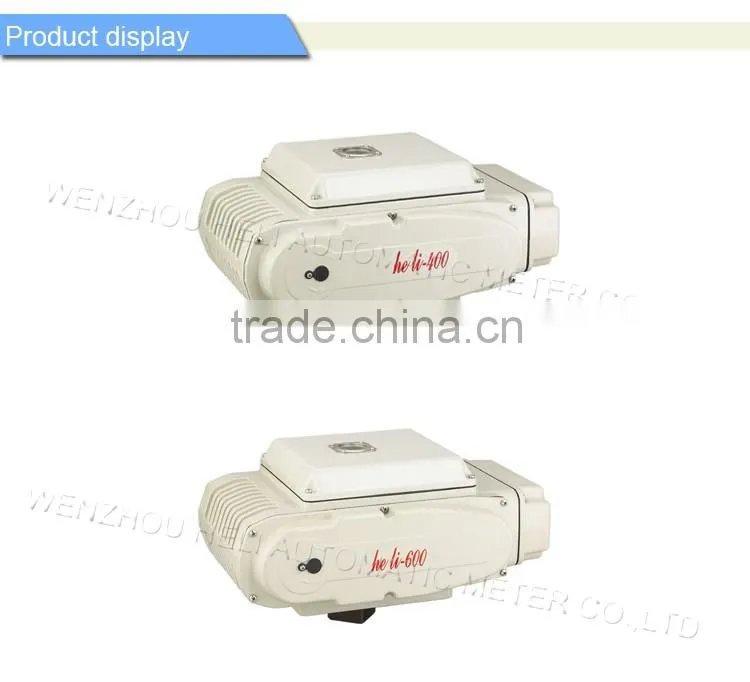

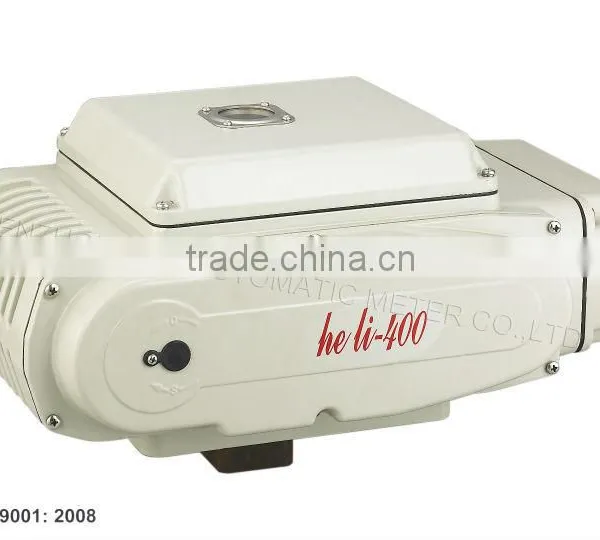

Help CenterElectric Valve Actuator (HL-400)
Related Products
Product Details:
| Standard or Nonstandard | Standard |
|---|---|
| Structure | Ball |
| Pressure | Low Pressure |
| Power | electromotion |
| Material | Alloy |
| Temperature of Media | Low Temperature |
| Media | Water |
| Place of Origin | Zhejiang, China (Mainland) |
| Model Number | HL-400 |
| Brand Name | HELI |

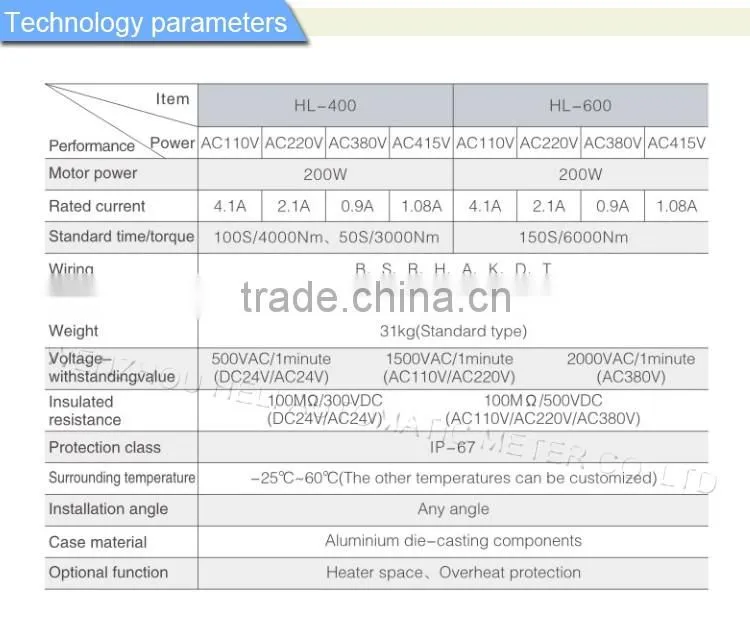

Model |
HL-400 |
|||
Voltage |
AC110V |
AC220V |
AC380V |
|
Motor Power |
200W |
|||
Rated current |
4.1A |
2.1A |
0.9A |
|
Output Torque |
4000N.m |
|||
Action Time |
100S |
|||
Rotary angle |
0~90° |
|||
Weight |
31kg |
|||
Voltage-with standing valve |
1500VAC/1minute |
|||
Insulated resistance |
100 MΩ/500VDC |
|||
Protection Class |
IP67 |
|||
Surrounding temperature |
-25°C~60°C(The other temperatures can be customized) |
|||
Installation angle |
Any angle |
|||
Case material |
Aluminium-casting components |
|||
Optional function |
Overload protection function, Heater |
|||
