PZ - 40 Microwave Vacuum Double Chamber Puffing Drying Machine

PZ - 40 Microwave Vacuum Double Chamber Puffing Drying Machine thumbnail-1
PZ - 40 Microwave Vacuum Double Chamber Puffing Drying Machine thumbnail-2
PZ - 40 Microwave Vacuum Double Chamber Puffing Drying Machine thumbnail-3
PZ - 40 Microwave Vacuum Double Chamber Puffing Drying Machine thumbnail-4
PZ - 40 Microwave Vacuum Double Chamber Puffing Drying Machine photo-1
PZ - 40 Microwave Vacuum Double Chamber Puffing Drying Machine photo-2
PZ - 40 Microwave Vacuum Double Chamber Puffing Drying Machine photo-3
PZ - 40 Microwave Vacuum Double Chamber Puffing Drying Machine photo-4
US$ 5,000 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
SENERGE
Model Number:
PZ-40
Contact Supplier Request Quote Chat Now
Shanghai Trihope International Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo Tianjin Lianyungang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name SENERGE
Model Number PZ-40
Power(W) 40kw
Weight 4000KG
Dimension(L*W*H) L2700*W3300*H2100mm
Warranty 3 Years

PZ - 40 microwave vacuum double chamber puffing drying machine

PZ - 40 microwave vacuum double chamber puffing drying machine



1. PZ - 40 microwave vacuum double chamber puffing drying machine  basic function



Used for Biomass dehydration processing

Used for dried fruits puffing processing







2. PZ-40 Composition

2.0 Outline

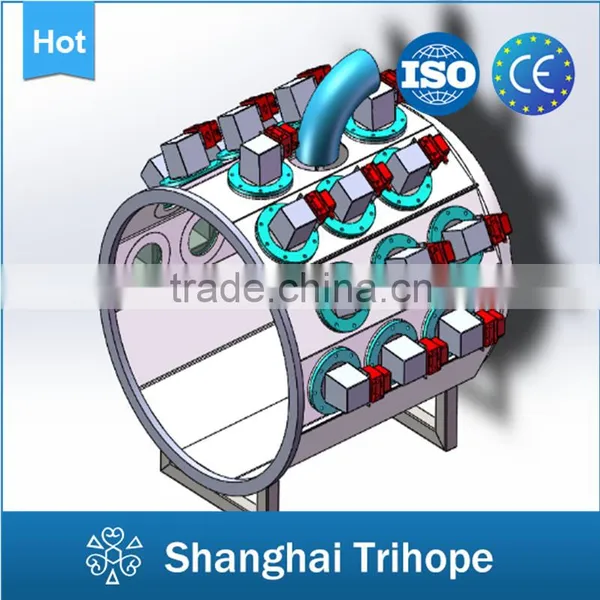

PZ-40 Configuration consist of double drum and two vacuum chamber. The biaxial

swing mechanism can make the material in the drum rolling continuously and heating well-proportioned. Opening barrel can axially pull out or push in and rotate 180 degrees, make it easy to loading and unloading.

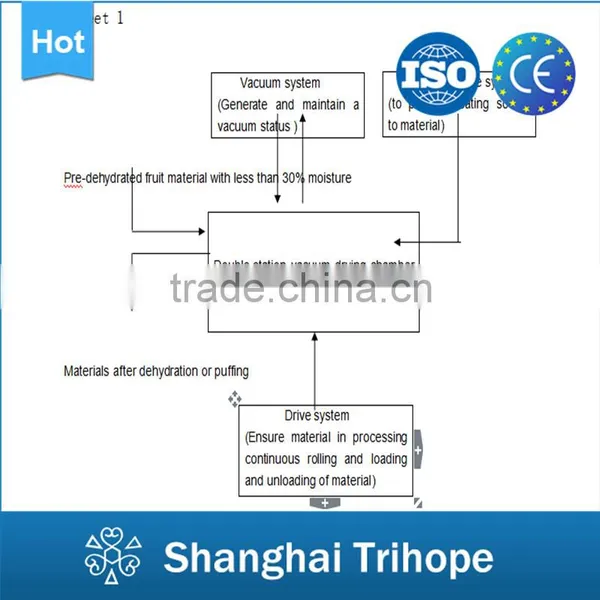

PZ-40 consist of vacuum dryer chamber (2sets) ,microwave system , vacuum system , drive

system  and control system etc.







Equipment parameter:

No.

Name

Parameter

Remark

1

Microwave output power

40KW



2

Microwave output frequency

2450±50MHZ



3

The opening roller size

Φ=1000mm

L=1000mm



4

single barrel allowed loading volume

<20kg



5

Vacuum chamber dimension

Φ=1200mm

L=1100mm



6

working room vacuum degree

0.095±0.001 Mpa



7

total rated power

55KW



8

Dimension

L2700*W3300*H2100mm



9

Weight

4000KG



3.PZ-40 Operating conditions and environmental requirements

5.1 Raw Material: Pre-dehydrated dry fruit  with <30% moisture

5.2 Power supply 380V±10%,50HZ±1%

5.3 Environment temperature -10 ºC ~ +45 ºC

5.4 Environment humidity

relative hunidity<80%

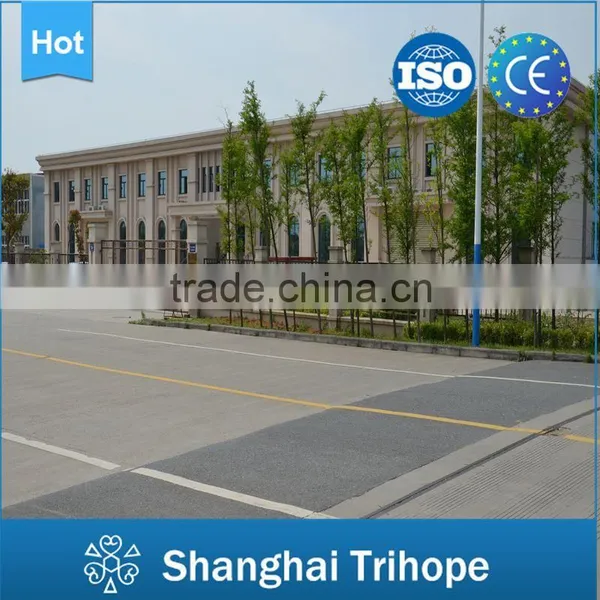

COMPANY AND FACTORY

PZ - 40 microwave vacuum double chamber puffing drying machine

Shanghai TRIHOPE International Co., Ltdwas registered in Shanghai China in the year of 2003. Its total investment is about USD 2 Million. Being a professional foreign trading company, TRIHOPE is also the marketing institute of its sister company M/s SENERGE Electric Equipment Co., Ltd,which is a professional equipment manufacturer.
SENERGE Electric Equipment Company (SENERGE) was established in 2009, located in Shanghai Zhang Jiang Pinghu Hi-Tech Zone. The total investment of SENERGE is more than 5 million USD. SENERGE has full range of good machines and tools to ensure its machining process and offer customer good quality products.

OUR TEAMMATES

PZ - 40 microwave vacuum double chamber puffing drying machine

Chen Jiabing (Chief Designer)

More than 35 years working experience of design and manufacturing in transformer industry. Served as tranformer and transformer equipment design and technology in Shanghai Transformer Factory, ALSTOM, AREVA, and other domestic transformer factories.

Wei Wang (Chief Production Officer)

With 35 years working experience in transformer industry. Served as transformer manufacturing in Shanghai Transformer Factory, ALSTOM, AREVA, and other domestic transformer factories.

Wang Daming ( Chief Service Officer)

Master degree of enigneering. 25 years working experience. Once worked in Pakistan, Indonesia overseas factories; visited nearly 40 countries, traveling throughout Africa, South America, America, Oceania, Asia and other places, with a wealth of experience working overseas.

PZ - 40 microwave vacuum double chamber puffing drying machine

SENERGE Electric Equipment Co.,Ltd has established the R&D Center with collaboration Shandong University and it is the practice base Graduate students of Shandong University Science Engineering college. The R&D Center keep studying and researching the advanced technology and development of transformer and power equipment industry.

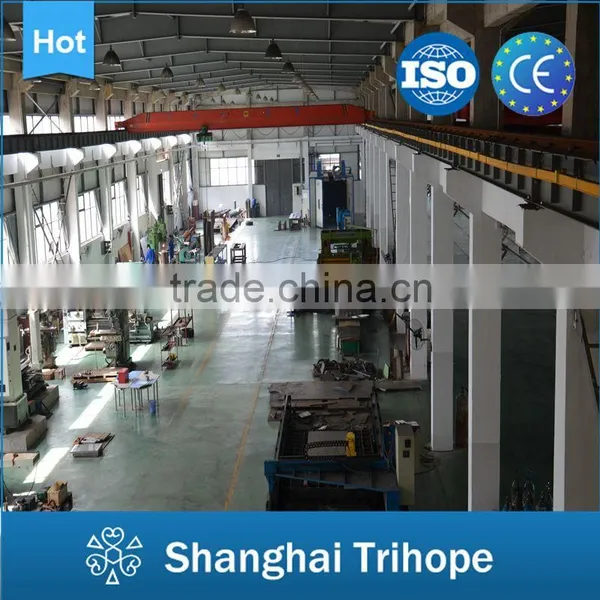

FACTORY EQUIPMENT
