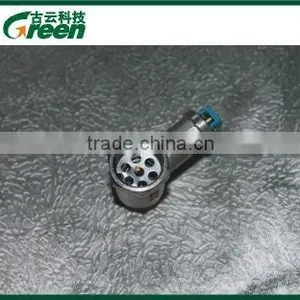

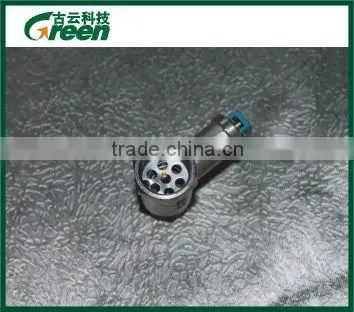

Help CenterBronze Safety Valve
Related Products
Features:
Model No. |
GY-V02 |
Material |
Brass HPB59-1 |
Material of Valve core |
Brass, customerized |
Spring |
Stainless steel |
Seal |
NBR |
Relief Pressure |
0.35-0.85 Mpa |
Inlet Water Pressure |
0.02-0.03Bar |
The pressure which activate Non-return valve |
0.5-3 Bar |
Thread size |
1/2” BSP; 3/4’’ BSP |
Drain lever |
Available |
Remarks:
1, Our water heater safety valves are available in brass valve body and valve core, which has much higher quality than plastic cores in the normal market.
2, The products are easy and convenient to install. When reaching the calibrated pressure, the valves open automatically and discharge atmosphere to protect the whole system
2, It is approved by customers that our safety valves have longer life and greater performances then others in the market, which is based on the STRICTEST MANAGEMENT of Raw Material, Production, Technical process and Testing.
3, Special design is acceptable as per customers’ requirements.
4, When you order, please specify:
(1) Which kind of valve core is the preference? Brass/Plastic
(3) Drain lever/Handle is available, but won’t be installed if you don’t need it.
(4) Drawing or Sample required for special configuration.
(5) Whether need to plate nickel.
We guarantee
(1) every single product is under strict test before dispatching
(2) higher quality than normal market products
