Functional characteristics:
1.5-1000MHz optimized circuit design, you could custom your desired frequency bandwidth based on the system.
2. Digital display input optical power.
3. 2 way optical receiver function standby for each other, which improve network reliability.
4. AGC controling range is -6 ~ +2dBm
6. EOC mixing function is customizable.
Technical parameters:
Item |
Unit |
Specification |
Note |
forward working bandwidth |
MHz |
47/87 ~ 862 |
optional |
Input optical power |
dBm |
-6~+2 |
|
optical working wavelength |
nm |
1200 ~ 1600 |
dual windows |
optical reflection loss |
dB |
>50 |
|
equivalent input noise current |
PA √ Hz |
≤ 8 |
|
RF flatness in band |
dB |
±0.75 |
|
output reflection loss |
dB |
≥16(47~550MHz) / ≥14(550~862MHz) |
|
Link C/N |
dB |
≥ 51 |
|
Link C/CSO |
dB |
≥ 60 |
|
Link C/CTB |
dB |
≥ 65 |
|
classic output level |
dBμV |
104 |
AGC controling range: -6~+2dBm |
LF frenquency |
MHz |
5 ~ 65 or 5 ~ 42 |
optional |
Power loss |
W |
≤15 |
|
Dimention |
mm |
290 x 205 x 120 |
|

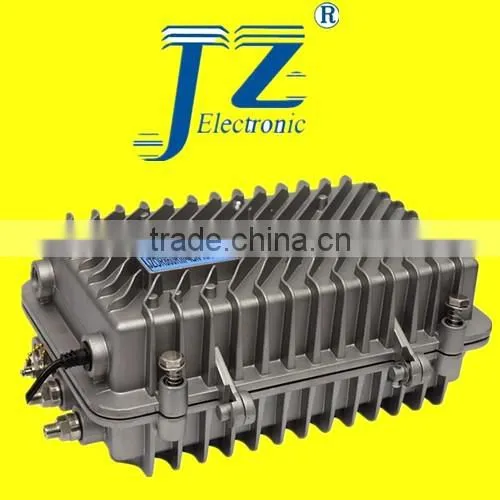

Picture:
We are manufacturer
1. We are "The Best Cooperation Partner" awarded by NXP Company; "Golden Customer" by American ORTEL Company.
2. We have imported top-level NXT, Samsung, Omron automaticly flow production line and imported detecting equipments such as Agilent,Tektronix,EXFO, etc.
3. We have exported products from 2004,our international market extends all over the word.
Our services:
1.Your inquiry related to our products or prices will be replied within 24hours.
2.Well-trained and experienced staffs to answer all your enquires in fluent English.
3.OEM & ODM, any your customized requirements we can try to help you realize.
4.Protection of your sales area ,ideas of design and all your private information.
5. 1 years warranty.
Welcome your inquiry
