Meanwell 150W Modified Sine Wave DC-AC Power Inverter 150w dc to ac Inverter dc Inverter

Name: Meanwell 150W Modified Sine Wave DC-AC Power Inverter 150w dc to ac Inverter dc Inverter
Brand: Meanwell
SKU: 117410027

US$ 1 - 10 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Meanwell

Model Number:

A301-150-B2

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Meanwell

Model Number A301-150-B2

Output Power Other, 150W

Output Type Single

Input Voltage Other, 12V

Output Voltage 110V

Output Frequency 47~63Hz

Output Current 1.36A

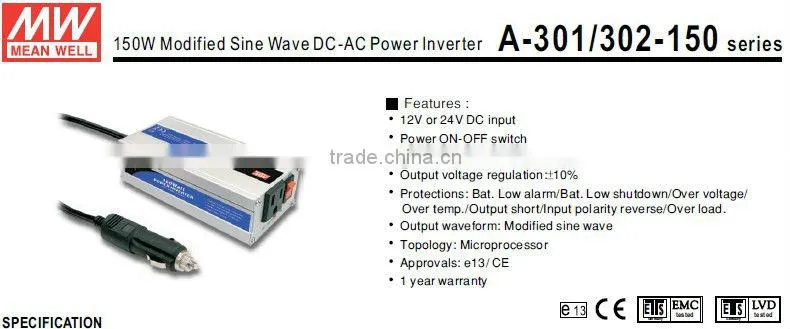

Product Overviews

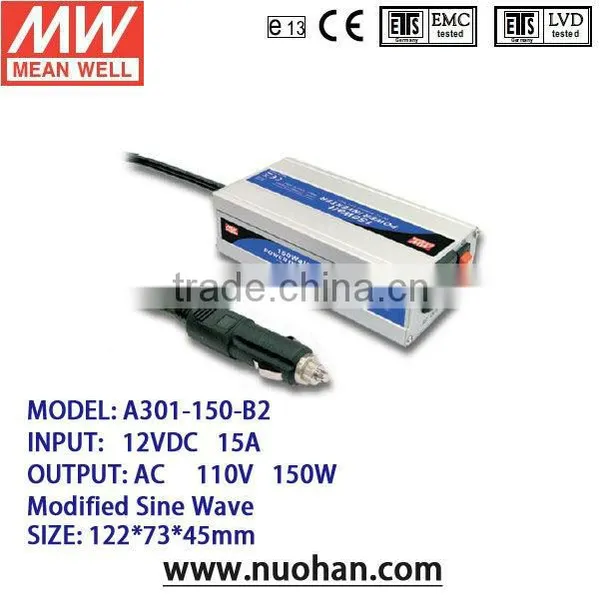

Original MEAN WELL

A301-150-B2

Output: 110V 1.36A 150W

Input:10~15VDC

Warranty: 1 years

Certificates: CE,e13

Specifications

ORDER NO.		A301-150-B2
OUTPUT	SAFETY MODEL NO.	A-300-150W
	AC VOLTAGE	110V
	RATED POWER	150W
	SURGE POWER	300W
	WAVEFORM	Modified Sine Wave
	FREQUENCY	60Hz ±1%
	AC REGULATION	±10%
	STANDARD RECEPTACLES	TYPE-2* 1ea
	LED INDICATOR	Green LED for power on
INPUT	DC CURRENT	15A
	NO LOAD CURRENT DRAW	0.25A
	DC VOLTAGE	12V
	VOLTAGE RANGE	10~ 15VDC
	EFFICIENCY (Typ.)	78%
	DC CONNECTOR	700mm Cigarette plug*1ea
	FUSE	15A* 1ea
PROTECTION	BAT. LOW ALARM	10± 0.5V
	BAT. LOW SHUTDOWN	9.5 ± 0.5V
	OVER VOLTAGE	15~17V
	OVER TEMPERATURE	60± 5°C / 140± 9F
	OUTPUT SHORT	Shut-off; BrokeN
	BAT. POLARITY	By fuse open
ENVIRONMENT	WORKING TEMP.	0~+30°C at 100% load, 40°C at 50% load
	WORKING HUMIDITY	20~90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-30~+70°C / -22~ +158 F, 10~95%RH
	TEMP. COEFFICIENT	±0.05%/°C (0~50°C)
SAFETY&EMC	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH
	EMI CONDUCTION & RADIATION	Compliance to EN55022 class B, 72/ 245/ CEE, 2006/96/CE
	EMC IMMUNITY	Compliance to EN61000-4-2,3
	LVD	Compliance to EN60950
OTHERS	MTBF	200Khrs min. MIL-HDBK-217F (25°C)
	DIMENSION	1227345mm (LWH)
	PACKING	0.5Kg ; 30pcs / 17Kg / CARTON
	COOLING	By air convection
	APPLICATIONS	Home appliance, office and portable equipment and vehicle ...etc.
