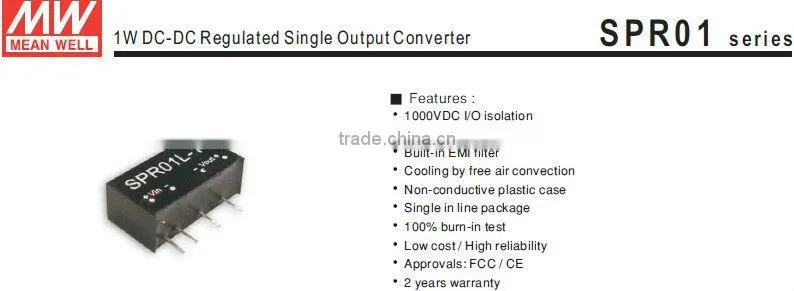

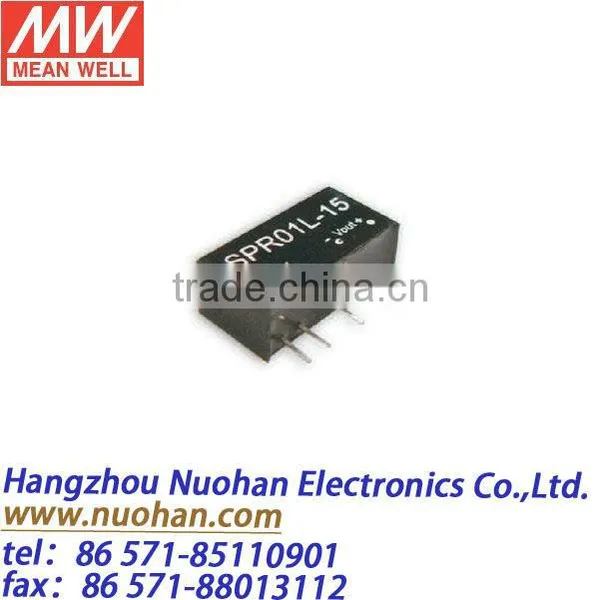

Help CenterMeanwell 1W DC-DC Regulated Single Output Converter dc Switching Power Supply
Related Products
-
Mean Well NSD15-12S12 15w 12v dc dc Regulated Single Output ConverterUS$ 1 - 10MOQ: 1 Piece -
Meanwell 10W DC-DC Regulated Dual Output 10w Switching Power Supply/dual Voltage Switching Power SupplyUS$ 1 - 10MOQ: 1 Piece
-
Meanwell 500W 12V Single Output DC-DC ConverterUS$ 1 - 10MOQ: 10 Pieces
-
Meanwell 300W Railway Single Output DC-DC Converter 24v Switching Power SupplyUS$ 1 - 10MOQ: 1 Piece
-
Meanwell 300W Railway Single Output DC-DC Converter 48v Switching Power SupplyUS$ 1 - 10MOQ: 10 Pieces

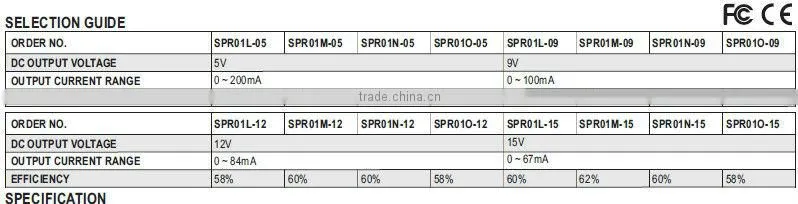

OUTPUT |
RATED POWER |
1W |
|
RIPPLE & NOISE (max.) Note.2 |
100mVp-p |
||
LINE REGULATION |
±1.0% |
||
LOAD REGULATION Note.3 |
±1.0% |
||
VOLTAGE ACCURACY |
±2.0%(Typ.) ±3.0%(max.) |
||
SWITCHING FREQUENCY |
50KHz min. |
||
INPUT |
VOLTAGE RANGE |
21.6 ~ 26.4V |
|
NORMAL VOLTAGE |
24V |
||
INPUT CURRENT |
Full load |
67mA |
|
No load |
10mA |
||
FILTER |
Capacitor type |
||
PROTECTION |
Fuse recommended |
||
|
PROTECTION (Note. 4) |
OVER LOAD |
>110% rated output power |
|
Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
SHORT CIRCUIT |
All output equipped with short circuit |
||
Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
ENVIRONMENT |
WORKING TEMP. |
-25~+71°C (Refer to output load derating curve) |
|
WORKING HUMIDITY |
20 ~ 90% RH on-condensing |
||
STORAGE TEMP., HUMIDITY |
-25~+105°C, 10~95%RH |
||
TEMP. COEFFICIENT |
0.03%/°C (0~ 50°C) |
||
VIBRATION |
10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes |
||
|
SAFETY & EMC |
WITHSTAND VOLTAGE |
I/P-O/P:1KVDC |
|
ISOLATION RESISTANCE |
I/P-O/P: 100M Ohms / 500VDC / 25°C / 70% RH |
||
ISOLATION CAPACITANCE |
80pF max. |
||
EMC EMISSION |
Compliance to EN55022 Class B, FCC part 15 Class B |
||
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8, light industry level, criteria A |
||
OTHERS |
MTBF |
700khrs min.MIL-HDBK-217F(25°C ) |
|

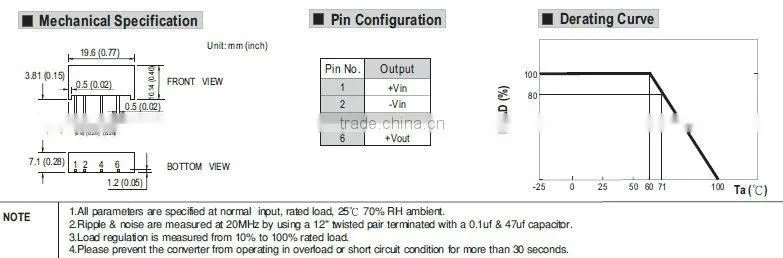

DIMENSION |
19.6*7.1*10.2mm or 0.77"*0.28"*0.40" inch (L*W*H) |
||
WEIGHT |
2.3g |
||
NOTE |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf capacitor. 3.Load regulation is measured from 10% to 100% rated load.
4.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds. |
||
