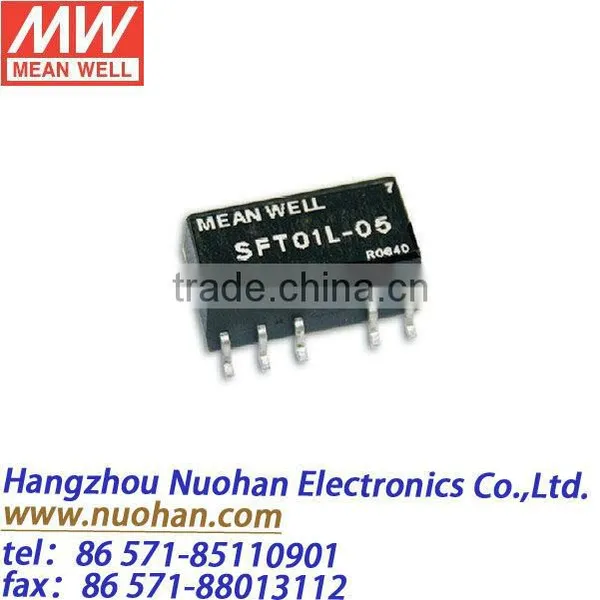

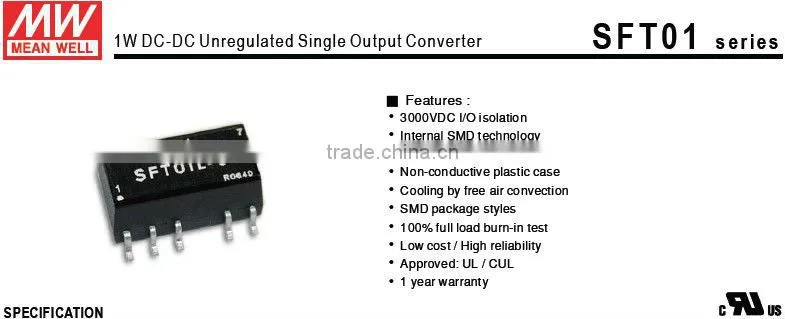

Meanwell 1W DC-DC Unregulated Single Output Converter 12v dc Switching Power Supply

Name: Meanwell 1W DC-DC Unregulated Single Output Converter 12v dc Switching Power Supply
Brand: Meanwell
SKU: 117411403

US$ 1 - 10 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Meanwell

Model Number:

F1212T-1W

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Meanwell

Model Number F1212T-1W

Output Power Other, 1W

Output Type Single

Input Voltage Other, 10.8 ~ 13.2V

Output Voltage 12V

Output Current 0 ~ 84mA

MODEL NO.			F1212T-1W
ORDER NO.			SFT01M-12
	DC OUTPUT VOLTAGE		12V
	OUTPUT CURRENT RANGE		0 ~ 67mA
	EFFICIENCY		73%
	RATED POWER		1W
	RIPPLE & NOISE (max.) Note.2		100mVp-p
	LINE REGULATION Note.3		±1.2% for 1% input variation
	LOAD REGULATION Note.4		±8.0%
	VOLTAGE ACCURACY		±8.0%
	SWITCHING FREQUENCY(Typ.)		100KHz min.
INPUT	VOLTAGE RANGE		10.8 ~ 13.2V
	NORMAL VOLTAGE		12V
	INPUT CURRENT	Full load	123mA
		No load	19mA
	PROTECTION		Fuse recommended
PROTECTION	OVER LOAD		Momentary
			Protection type : Broken
	SHORT CIRCUIT		Momentary
			Protection type : Broken
ENVIRONMENT	WORKING TEMP.		-40~+85°C (Refer to derating curve)
	WORKING HUMIDITY		20 ~ 90% RH on-condensing
	STORAGE TEMP., HUMIDITY		-40~+105°C, 10~95%RH
	TEMP. COEFFICIENT		0.03%/°C (0~ 50°C)
	VIBRATION		10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC	SAFETY STANDARDS		UL60950-1, CSA C22.2
	WITHSTAND VOLTAGE		I/P-O/P:3KVDC
	ISOLATION RESISTANCE		I/P-O/P: 100M Ohms / 500VDC / 25°C/ 70% RH
OTHERS	MTBF		500khrs min.MIL-HDBK-217F(25°C )

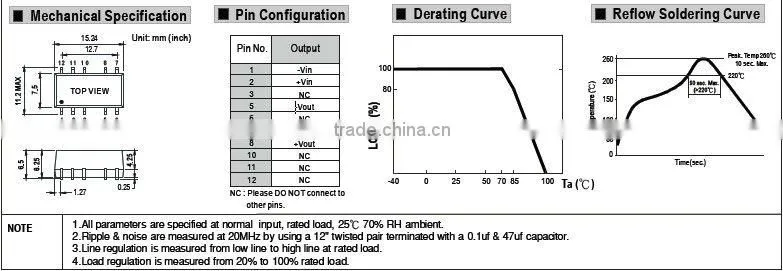

	DIMENSION		15.247.5 6.5mm o r 0.6"0.2 95"0.24" inch (LW H)
	WEIGHT		1.7g
NOTE	1. All parameters are specified at normal input, rated load, 25°C 70% RH ambient . 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3.Line regulation is measured from low line to high line at rated load. 4.Load regulation is measured from 20% to 100% rated load.
