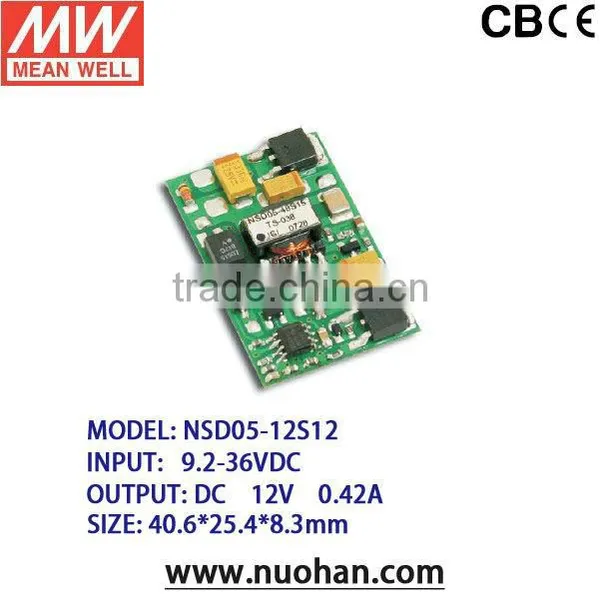

Help CenterMeanwell 5W DC-DC Regulated Single Output 12v Switching Power Supply/switch Power Supply Transformer
Related Products
-
Meanwell 15W 24V Single Output DC-DC Converter Switching Power SupplyUS$ 1 - 10MOQ: 10 Pieces -
Meanwell 300W Railway Single Output DC-DC Converter 5v Switching Power SupplyUS$ 1 - 10MOQ: 10 Pieces
-
Meanwell 300W Railway Single Output DC-DC Converter Switching Power Supply/12v Dc-dc ConverterUS$ 1 - 10MOQ: 10 Pieces
-
Meanwell 3W DC-DC Regulated Dual Output Converter 3w Switching Power SupplyUS$ 1 - 10MOQ: 1 Piece
-
Mean Well 15v 30w Switching Power Supply 30W 15V ConverterUS$ 1 - 20MOQ: 1 Piece
MODEL |
NSD05-12S12 |
|
OUTPUT |
DC VOLTAGE |
12V |
RATED CURRENT |
0.42A |
|
CURRENT RANGE |
0 ~ 0.42A |
|
RATED POWER |
5.04W |
|
CAPACITIVE LOAD (max.) |
120uF |
|
RIPPLE & NOISE (max.) Note.2 |
75mVp-p |
|
VOLTAGE TOLERANCE Note.3 |
±2.0% max. |
|
LINE REGULATION |
±1.0% |
|
LOAD REGULATION |
±1.0% |
|
INPUT |
RATED DC INPUT |
12VDC |
VOLTAGE RANGE |
9.2 ~ 36VDC |
|
EFFICIENCY (Typ.) |
82% |
|
DC CURRENT |
0.7A/12VDC |
|
SHUTDOWN IDLE CURRENT |
5mA/12VDC |
|
PROTECTION |
OVER LOAD |
Above 105% rated output power |
Protection type : Over power limiting, recovers automatically after fault condition is removed | ||
OVER VOLTAGE(CLAMP) |
13.5 ~ 16.5V |
|
Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
SHORT CIRCUIT |
Recovers automatically after fault condition is removed |
|
FUNCTION |
ON/OFF CONTROL |
Logic "1" or open circuit : ON Logic "0" or short to PIN2 : OFF |
ENVIRONMENT |
WORKING TEMP. |
-25~+70°C |
WORKING HUMIDITY |
0~95% RH max. |
|
STORAGE TEMP., HUMIDITY |
-40~+85°C, 0~95%RH |
|
TEMP. COEFFICIENT |
0.03%/°C (0~ 60°C) |
|
|
SAFETY & EMC (Note 4) |
SAFETY STANDARDS |
IEC60950-1 CB approved by TUV |
ISOLATION VOLTAGE |
I/P-O/P:1KVDC |
|
ISOLATION RESISTANCE |
I/P-O/P:100M Ohms / 500VDC / 25°C / 70% RH |
|
EMC EMISSION |
Compliance to EN55022 (CISPR22) Class B |
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8; EN55024, light industry level, criteria A |
|
OTHERS |
MTBF |
914.4K hrs min. MIL-HDBK-217F (25°C) |
DIMENSION |
40.6*25.4*8.3mm (1.6"*1"*0.327") (L*W*H) |
|
PACKING |
0.007Kg; 700pcs/5.9Kg/0.97CUFT |
|
NOTE |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 5.To insure proper operation, a 47uF/100V electrolytic capacitor with Esr <1Ω must be added to the input line. 6.EMC filter suggestion(TBD): |
|
