Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > Mean Well SCW05A-12 5W 12V Converter 5W SMPS 12v

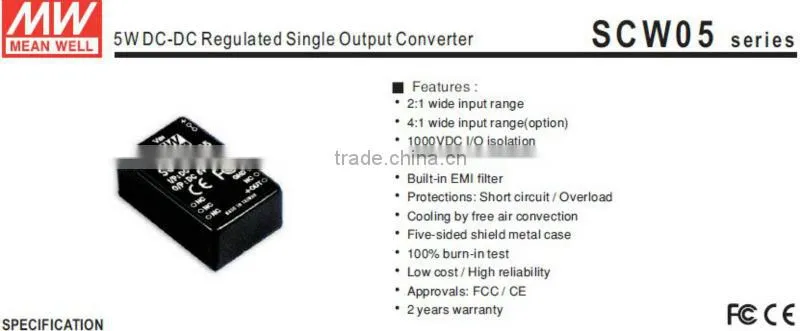

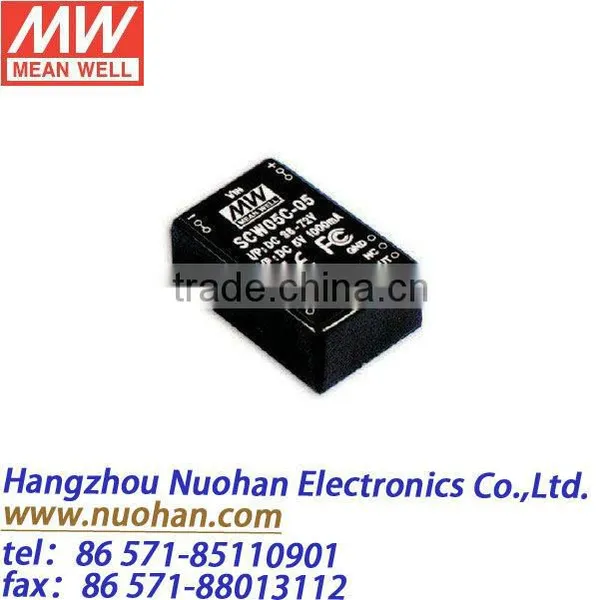

Mean Well SCW05A-12 5W 12V Converter 5W SMPS 12v

Name: Mean Well SCW05A-12 5W 12V Converter 5W SMPS 12v
Brand: Meanwell
SKU: 117411671

Mean Well SCW05A-12 5W 12V Converter 5W SMPS 12v thumbnail-1

Mean Well SCW05A-12 5W 12V Converter 5W SMPS 12v photo-1

US$ 1 - 10 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Meanwell

Model Number:

SCW05A-12

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Meanwell

Model Number SCW05A-12

Output Power Other, 5.6W

Output Type Single

Input Voltage Other, 9 ~ 18VDC

Output Voltage 12V

Output Frequency 47~63Hz

Output Current 94 ~ 470mA

Specifications

ORDER NO.		SCW05A-12
OUTPUT	DC OUTPUT VOLTAGE	12V
	CURRENT RANGE	94 ~ 470mA
	RATED POWER	5.6W
	RIPPLE & NOISE (max.) Note.2	60mVp-p
	LINE REGULATION Note.3	±0.5%
	LOAD REGULATION Note.4	±0.5%
	VOLTAGE ACCURACY	±2.0%
	SWITCHING FREQUENCY	50KHz min.
INPUT	VOLTAGE RANGE	A: 9 ~ 18VDC B: 18 ~ 36VDC C: 36 ~ 72VDC
	EFFICIENCY (Typ.)	80%
	DC CURRENT	Full load	A: 617mA B: 301mA C: 147mA
		No load	A: 41mA B: 22mA C: 12mA
	FILTER	Pi network
	PROTECTION	Fuse recommended
PROTECTION (Note. 5)	OVER LOAD	150 ~ 250% rated output power
		Protection type : Hiccup mode, recovers automatically after fault condition is removed
	SHORT CIRCUIT	All output equipped with short circuit
		Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT	WORKING TEMP.	-40~+71°C (Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 90%RH non-condensing
	STORAGE TEMP., HUMIDITY	-40~+105°C, 10~95%RH
	TEMP. COEFFICIENT	0.03%/°C (0~ 50°C)
	VIBRATION	10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC	WITHSTAND VOLTAGE	I/P-O/P:1KVDC
	ISOLATION RESISTANCE	I/P-O/P: 100M Ohms / 500VDC / 25°C/ 70% RH
	ISOLATION CAPACITANCE	80pF max.
	EMC EMISSION	Compliance to EN55022 Class B, FCC part 15 Class B
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8 light industry level, criteria A
	MTBF	900khrs min.MIL-HDBK-217F(25°C )

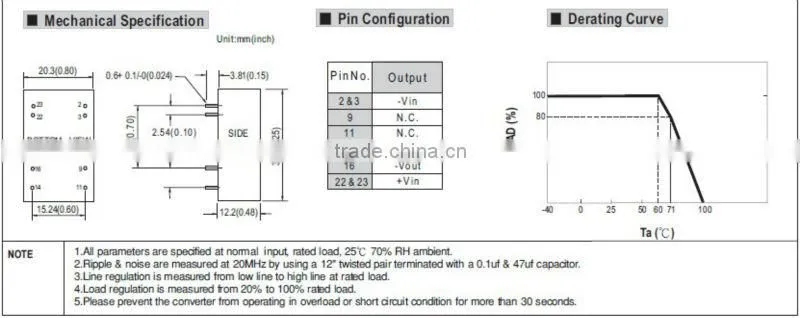

	DIMENSION	31.820.312.2mm or 1.25"0.80"0.48" inch (LWH)
	WEIGHT	15g
NOTE	1. All parameters are specified at normal input, rated load, 25°C 70% RH ambient . 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3.Line regulation is measured from low line to high line at rated load. 4.Load regulation is measured from 20% to 100% rated load. 5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.
