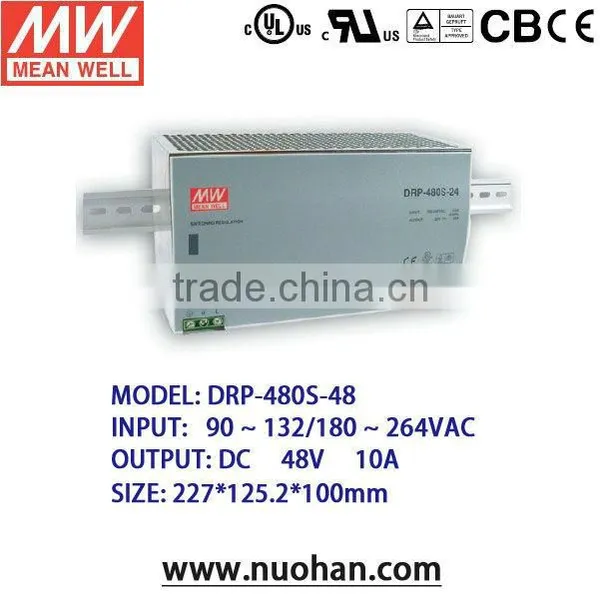

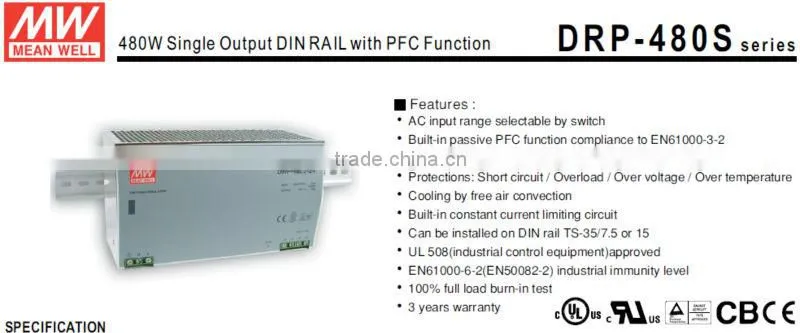

Meanwell 480W 48V Industrial DIN Rail Power Supply/480W Single Output With PFC Function

Name: Meanwell 480W 48V Industrial DIN Rail Power Supply/480W Single Output With PFC Function
Brand: Meanwell
SKU: 117417183

Meanwell 480W 48V Industrial DIN Rail Power Supply/480W Single Output With PFC Function thumbnail-1

Meanwell 480W 48V Industrial DIN Rail Power Supply/480W Single Output With PFC Function photo-1

US$ 1 - 100 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Taiwan, China

Brand Name:

Meanwell

Model Number:

DRP-480S-48

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Taiwan, China

Brand Name Meanwell

Model Number DRP-480S-48

Input Voltage 90 ~ 132VAC/180 ~ 264VAC by switch 254 ~ 370VDC

Output Voltage 48V

Output Power 480W

Output Frequency 47~63Hz

Output Current 10A

MODEL		DRP-480S-48
OUTPUT	DC VOLTAGE	48V
	RATED CURRENT	10A
	CURRENT RANGE	0~10A
	RATED POWER	480W
	RIPPLE & NOISE (max.) Note.2	120MVP-P
	VOLTAGE ADJ.RANGE	48~55V
	VOLTAGE TOLERANCE Note.3	±1.0%
	LINE REGULATION	±0.5%
	LOAD REGULATION	±1.0%
	SETUP. RISEHOLD. TIME	1200ms, 40ms/230VAC,115VAC at full load
	HOLD UP TIME (Typ.)	23ms/230VAC,115VAC at full load
INPUT	VOLTAGE RANGE Note.6	90 ~ 132VAC/180 ~ 264VAC by switch 254 ~ 370VDC
	FREQUENCY RANGE	47~63HZ
	POWER FACTOR (Typ.)	0.7/230VAC only
	EFFICIENCY (Typ.)	89%
	AC CURRENT (Typ.)	8A/115VAC 3.2A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 27A/115VAC 45A/230VAC
	LEAKAGE CURRENT	<3.5mA / 240VAC
PROTECTION	OVER LOAD	105~150%rated output power
	OVER LOAD	Protection type : Constant current limiting, recovers automatically after fault condition is removed
	OVER VOLTAGE	56~66V
	OVER VOLTAGE	Protection type : Shut down o/p voltage, re-power on to recover
	OVER TEMPERATURE	100°C±5°C (TSW : Detect on heatsink of power switch)
	OVER TEMPERATURE	Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

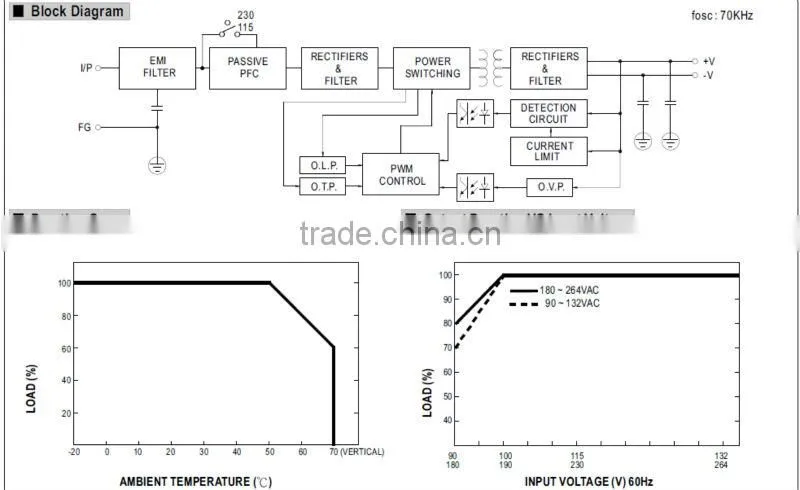

ENVIRONMENT	WORKING TEMP	-20~+70°C (refer to output load derating curve)
	WORKING HUMIDITY	20~90% RH non-condensing
	STORAGE TEMP HUMIDITY	-40~+85°C, 10~95%RH
	TEMPCOEFFICIENT	±0.03%(0~50°C)
	VIBRATION	Component:10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
SAFETY&EMC Note 4)	SAFETY STANDARDS	UL508, UL60950-1, TUV EN60950-1 approved
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	ISOLATIONRESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
	EMI CONDUCTICN& RADIATION	Compliance to EN55011 (CISPR11), EN55022 (CISPR22), EN61204-3 Class B
	HARMONICCURRENT	Compliance to EN61000-3-2,-3
	EMS IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11, ENV50204, EN55024, EN61000-6-2 (EN50082-2), heavy industry level, criteria A
QTHERS	MTBF	187.9Khrs min MIL-HDBK-217F(25°C)

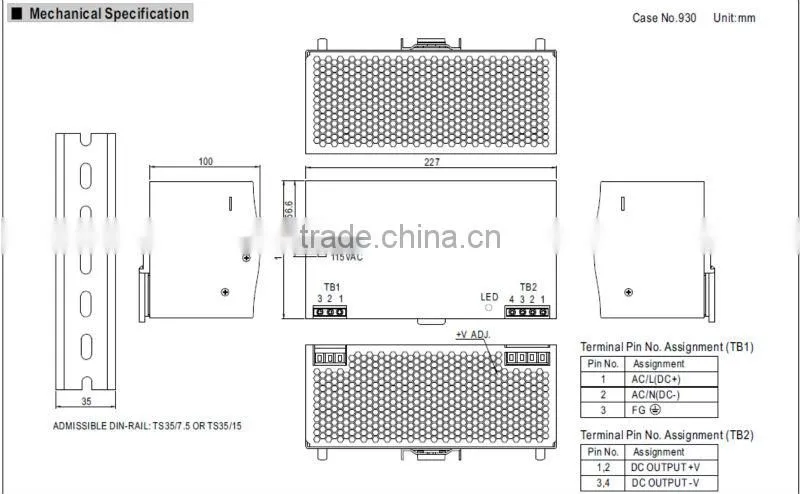

	DIMENSION	227125.2100mm(LWH)
	PACKING	2.6Kg; 6pcs / 16.6Kg / 1.75CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 °Cof ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
