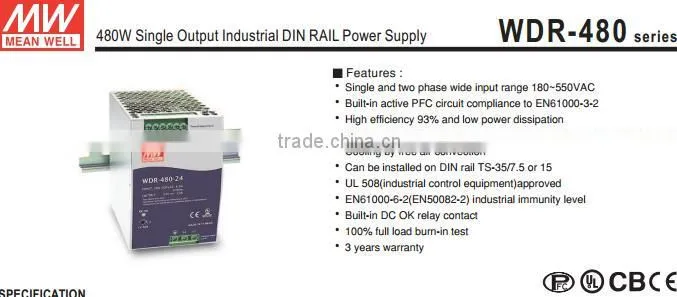

Mean Well 480w 48V Din Rail Power Supply UL CE CB EMC WDR-480-48

Name: Mean Well 480w 48V Din Rail Power Supply UL CE CB EMC WDR-480-48
Brand: Mean Well
SKU: 117417443

Mean Well 480w 48V Din Rail Power Supply UL CE CB EMC WDR-480-48 thumbnail-1

Mean Well 480w 48V Din Rail Power Supply UL CE CB EMC WDR-480-48 photo-1

US$ 1 - 50 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Mean Well

Model Number:

WDR-480-48

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai or shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Mean Well

Model Number WDR-480-48

Input Voltage 180 ~ 550VAC 254 ~ 780VDC

Output Voltage 48V

Output Power 480W

Output Frequency 47~63Hz

Output Current 10A

MODEL		WDR-480-48
OUTPUT	DC VOLTAGE	48V
	RATED CURRENT	10A
	CURRENT RANGE	0 ~ 10A
	RATED POWER	480W
	RIPPLE&NOISE (max.) Note.2	100mVp-p
	VOLTAGE ADJ. RANGE	48 ~ 55V
	VOLTAGE TOLERANCE Note.3	±1.0%
	LINE REGULATION	±0.5%
	LOAD REGULATION	±1.0%
	SETUP, RISE, HOLD UP TIME	800ms,150ms/,18ms/ 400VAC 2000ms,150ms,16ms/230VAC at full load
INPUT	VOLTAGE RANGE	180 ~ 550VAC 254 ~ 780VDC
	FREQUENCY RANGE	47 ~ 63Hz
	POWER FACTOR (Typ.)	PF>0.84/400VAC PF>0.84/230VAC
	EFFICIENCY (Typ.)	93%
	AC CURRENT (Typ.)	1.6A/400VAC 4A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 50A
	LEAKAGE CURRENT	<3.5mA / 240VAC
PROTECTION	OVER LOAD	105 ~ 130% rated output power
	OVER LOAD	Protection type : Constant current limiting, recovers automatically after fault condition is removed
	OVER VOLTAGE	56 ~ 65V
	OVER VOLTAGE	Protection type : Shut down o/p voltage, auto-recovery after 1 minute if the fault condition is removed
	OVER TEMPERATURE	95 °C ± 5°C (TSW) detect on heatsink of ; (12V),110 5 (24V) power transistor 100 °C ± 5 °C (48V) (TSW1) detect on heatsink of power diode
	OVER TEMPERATURE	Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

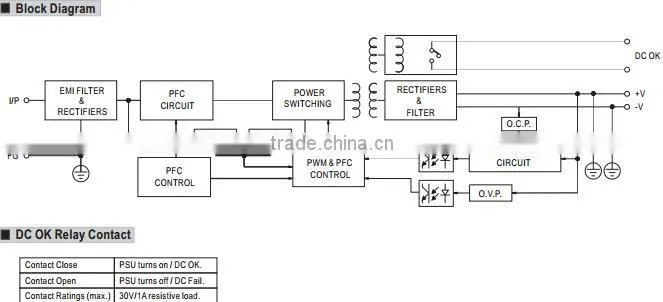

FUNCTION	DC OK REALY CONTACT RATINGS (max.)	60Vdc/0.3A, 30Vdc/1A, 30Vac/0.5A resistive load
ENVIRONMENT	WORKING TEMP.	-30~+70°C (Refer to derating curve)
	WORKING HUMIDITY	20~95% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40~+85°C, 10~95%RH
	TEMP. COEFFICIENT	±0.03%/°C (0~50°C)
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC (Note 4)	SAFETY STANDARDS	UL508 approved, IEC60950-1 CB approved by SIQ, design refer to GL
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC
	EMC EMISSION	Compliance to EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level, criteria A approved
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
OTHERS	MTBF	112.8K hrs min. MIL-HDBK-217F (25 )

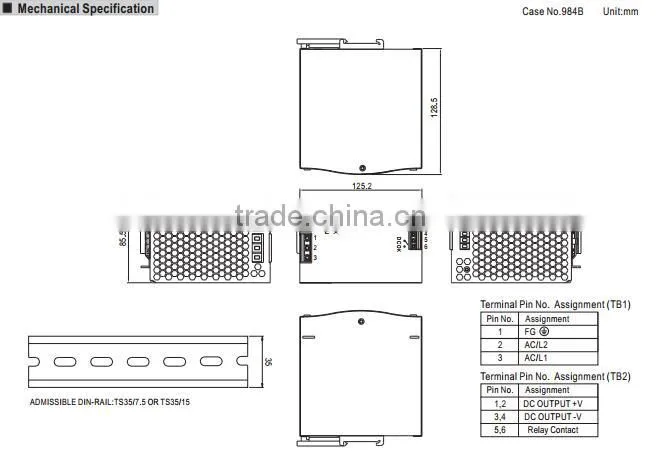

	DIMENSION	85.5125.2128.5mm (WHD)
	PACKING	1.7Kg; 8pcs/14.6Kg/0.9CUFT
NOTE	1 All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. . Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 5. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended. 6. Derating may be needed under low input voltage. Please check the derating curve for more details.
