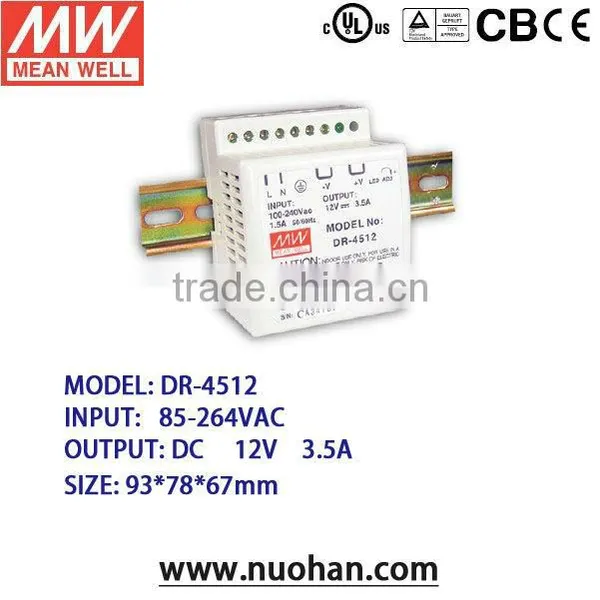

Help Center12V 3.5A Power Supply/Mean Well 45W 12V Single Output Industrial DIN Rail Power Supply
Related Products
-
Mean Well MDR-40-48 40W 48V DIN Rail Power Supply 40W 48V DIN Power SupplyUS$ 1 - 10MOQ: 1 Piece -
Meanwell DR-45-15 45W 15V Industrial DIN Rail Power SupplyUS$ 1 - 10MOQ: 1 Piece
-
Mean Well 480W 24V Power Supply DIN RAIL With PFC Function PFC Power SupplyNegotiableMOQ: 1 Piece
-
Mean Well MDR-100-24 100W 24V DIN Power Supply DIN Rail Power SupplyUS$ 1 - 100MOQ: 1 Piece
-
Mean Well 240W 48V Single Output Industrial DIN RAIL Power SupplyNegotiableMOQ: 5 Pieces
MODEL |
DR-4512 |
|
|
OUTPUT |
DC VOLTAGE |
12V |
RATED CURRENT |
3.5A |
|
CURRENT RANGE |
0~3.5A |
|
RATED POWER |
42W |
|
RIPPLE & NOISE (max.) Note.2 |
200MVP-P |
|
VOLTAGE ADJ.RANGE |
10.8~13.2V |
|
VOLTAGE TOLERANCE Note.3 |
±1.0% |
|
LINE REGULATION |
±1.0% |
|
LOAD REGULATION |
±1.0% |
|
SETUP. RISEHOLD. TIME |
800ms, 60ms/230VAC at full load |
|
HOLD TIME(TYP.) |
100ms/230VAC at full load |
|
|
INPUT |
VOLTAGE RANGE Note.6 |
85~264VAC 120~370VDC |
FREQUENCY RANGE |
47~63HZ |
|
EFFICIENCY (Typ.) |
77% |
|
AC CURRENT (Typ.) |
1.5A/115VAC 0.75A/230VAC |
|
INRUSH CURRENT (Typ.) |
COLD START 28A/115VAC 56A/230VAC |
|
LEAKAGE CURRENT |
<1mA / 240VAC |
|
|
PROTECTION |
OVER LOAD |
105~160%rated output power |
Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||
|
OVER VOLTAGE |
13.8~16.2V |
|
Protection type : Shut off o/p voltage, clamping by zener diode | ||
|
OVER TEMPERATURE |
Tj 135°C typically (U1) detect on heat sink of power transistor |
|
Protection type : Shut down o/p voltage, re-power on to recover | ||
|
ENVIRONMENT |
WORKING TEMP |
-10~+50°C (refer to output load derating curve) |
WORKING HUMIDITY |
20~90% RH non-condensing |
|
STORAGE TEMP HUMIDITY |
-20~+85°C 10~95%RH |
|
TEMPCOEFFICIENT |
±0.03%(0~50°C) |
|
VIBRATION |
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 |
|
|
SAFETY&EMC Note 4) |
SAFETY STANDARDS |
UL508, TUV EN60950-1 approved |
WITHSTAND VOLTAGE |
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
|
ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC |
|
|
EMI CONDUCTICN& RADIATION |
Compliance to EN55011, EN55022(CISPR22)classB |
|
HARMONI CCURRENT |
Compliance to EN61000-3-2,-3 |
|
EMS IMMUNITY |
Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, ENV50204, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A |
|
|
QTHERS |
MTBF |
364.5Khrs min MIL-HDBK-217F(25°C) |
DIMENSION |
93*78*67mm(L*W*H) |
|
PACKING |
0.31Kg 48pcs / 16.1Kg / 1.3CUFT |
|
NOTE |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 °Cof ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. |
|
