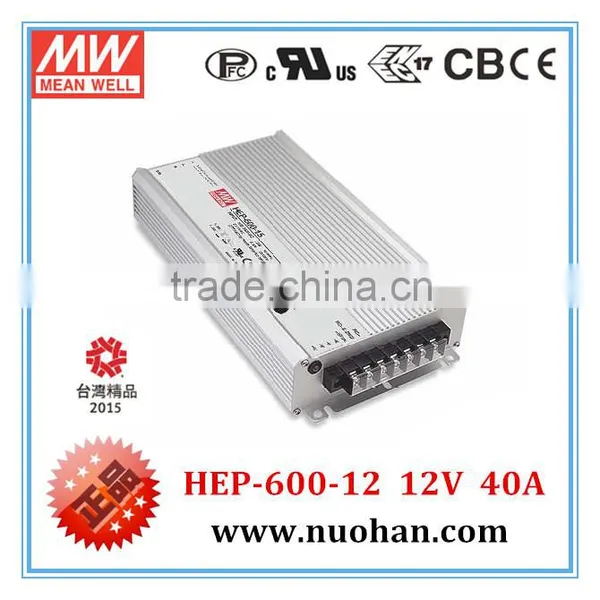

Mean Well HEP-600-12 600W 12V Power Supply 600w Power Supply

Name: Mean Well HEP-600-12 600W 12V Power Supply 600w Power Supply
Brand: MEAN WELL
SKU: 117427965

Mean Well HEP-600-12 600W 12V Power Supply 600w Power Supply thumbnail-1

Mean Well HEP-600-12 600W 12V Power Supply 600w Power Supply photo-1

US$ 1 - 170 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

MEAN WELL

Model Number:

HEP-600-12

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name MEAN WELL

Model Number HEP-600-12

Output Power Other, 480W

Output Type Single

Input Voltage Other, 90 ~ 264VAC 127 ~ 373VDC

Output Voltage 12V

Output Frequency 47 ~ 63Hz

Output Current 40A

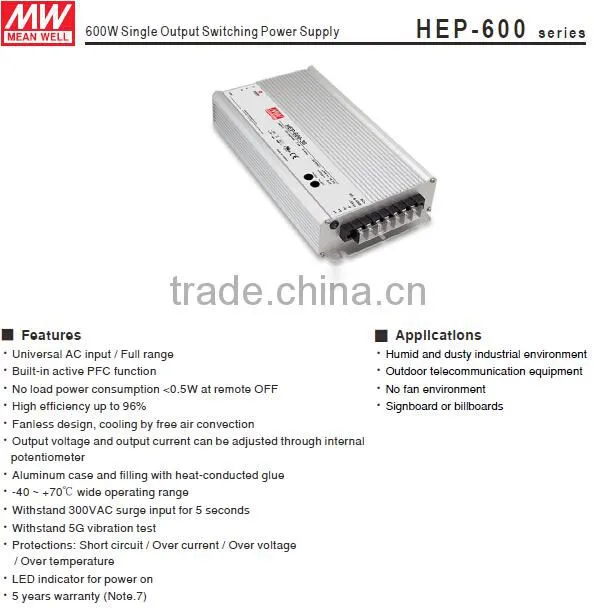

Product Overviews

Original MEAN WELL

HEP-600-12

Input: 90 ~ 264VAC 127 ~ 373VDC

Output: 12V 40A

Safety standards: CE, CB, TUV, EMC

Warranty: 5 years warranty

Specification

MODEL		HEP-600-12
OUTPUT	DC VOLTAGE	12V
	RATED CURRENT	40A
	RATED POWER	480W
	RIPPLE & NOISE (max.) Note.2	150mVp-p
	VOLTAGE ADJ. RANGE	10.2 ~ 12.6V
	CURRENT ADJ. RANGE	Can be adjusted by internal potentiometer
		20~40A
	VOLTAGE TOLERANCE Note.3	±3.0%
	LINE REGULATION	±0.5%
	LOAD REGULATION	±2.0%
	SETUP, RISE TIME Note.5	500ms, 80ms at full load 230VAC/115VAC
	HOLD UP TIME (Typ.)	15ms at full load 230VAC /115VAC
INPUT	VOLTAGE RANGE Note.4	90 ~ 264VAC 127 ~ 373VDC
	FREQUENCY RANGE	47~63HZ
	POWER FACTOR (Typ.)	PF>0.98/115VAC, PF>0.95/230VAC at full load
	EFFICIENCY (Typ.)	93%
	AC CURRENT (Typ.)	7A / 115VAC 3.3A / 230VAC
	INRUSH CURRENT (Typ.)	COLD START 70A(twidth=1000 s measured at 50% Ipeak) at 230VAC
	LEAKAGE CURRENT	<0.75mA / 240VAC
PROTECTION	OVER Current	105 ~ 125%
		Protection type : Constant current limiting, recovers automatically after fault condition is removed
	SHORT CIRCUIT	Constant current limiting, recovers automatically after fault condition is removed
	OVER VOLTAGE	13 ~ 16V
		Protection type : Shut down o/p voltage, re-power on to recover
	OVER TEMPERATURE	Shut down o/p voltage, re-power on to recover
FUNCTION	REMOTE ON/OFF CONTROL	Power on : "Hi" >2 ~ 5V or Open circuit Power off : "Low" <0 ~ 0.5V or Short circuit
	5V STANDBY	5VSB : 5V 0.5A ; tolerance ±5%, ripple : 100mVp-p(max.)

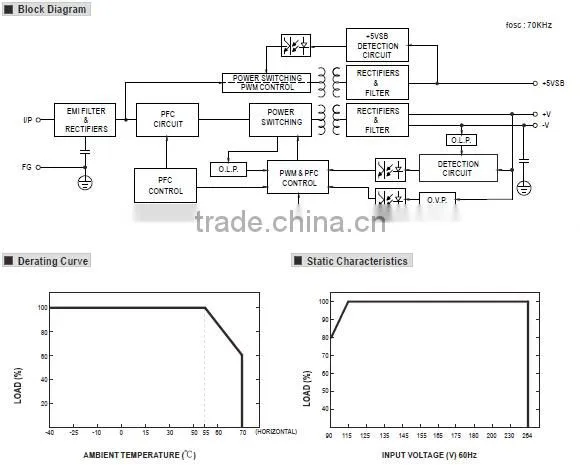

ENVIRONMENT	WORKING TEMP.	-40 ~ +70℃(Refer to "Derating Curve")
	WORKING HUMIDITY	20 ~ 95% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40 ~ +85℃, 10 ~ 95% RH
	TEMP. COEFFICIENT	±0.03%/℃(0 ~ 60℃)
	VIBRATION	10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY	SAFETY STANDARDS	UL60950-1, TUV EN60950-1 approved
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
	EMC EMISSION	Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, heavy industry level, criteria A
OTHERS	MTBF	76.9K hrs min. MIL-HDBK-217F (25℃)
	DIMENSION	28014448.5mm (LWH)
	PACKING	3.9Kg; 4pcs/16.6Kg/0.9CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. Derating may be needed under low input voltages. Please check the static characteristics for more details. 5. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time. 6. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. 7. Refer to warranty statement.
