Woodworking Auotomatic Edge Banding Machine
US$ 5,000 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, edge bander machine, automatic edge banding machine
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MD45SA Woodworking Automatic Edge Banding MachineUS$ 10,000 - 15,000MOQ: 1 Set -
MD60G-6 Woodworking Automatic Edge Banding MachineUS$ 10,000 - 15,000MOQ: 1 Set
-
MD60G-7 Woodworking Automatic Edge Banding MachineUS$ 10,000 - 15,000MOQ: 1 Set
-
MD45S Woodworking Auotomatic Edge Banding MachineUS$ 5,000 - 10,000MOQ: 1 Set
-
MD516-3 Woodworking Automatic Edge Banding MachineUS$ 5,000 - 8,000MOQ: 1 Set
Condition
New
Type
Other, edge bander machine, automatic edge banding machine
Place of Origin
Shandong, China
Brand Name
HZH
Model Number
MD45S
Voltage
380V
Power(W)
7.24Kw
Dimension(L*W*H)
2280x840x1260mm
Weight
930Kg
Certification
ISO9001/CE
Warranty
One year
After-sales Service Provided
Engineers available to service machinery overseas

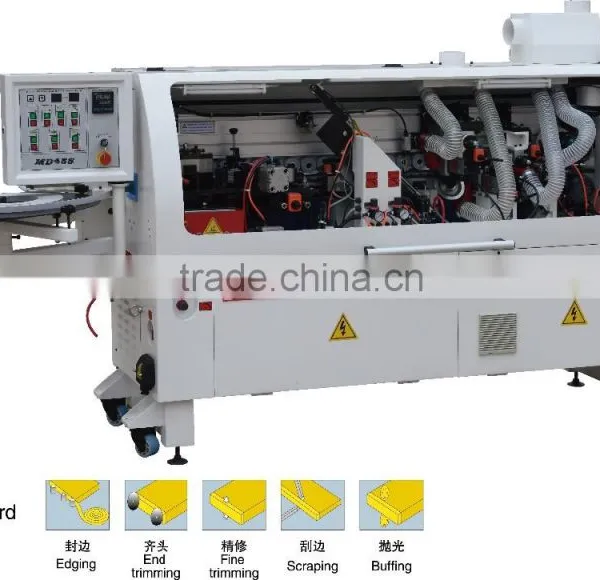

We offer High quality Woodworking Auotomatic Edge Bander Machine MD45S
Product Description
| Thickness of panel:10-45mm |
| Min width of panel:60mm |
| Min length of panel:160mm |
| Belt height:12-47mm |
| Thickness of belt:0.4-3mm(PVC) |
| Panel feeding speed:0-14m/min(Stepless) |
| Air pressure:0.7Mpa |
| End cutting motor:2x0.35KW 12000r/min 200HZ |
| Fine trimming motor:2x0.5KW 12000r/min 200HZ |
| Buffing motor:2x0.18KW 1400r/min 50HZ |
| Heating power of glue tank:2.6KW |
| Panel feeding motor:1.1KW |
| Glue spindle motor:0.75KW |
| Power of accessorial heater:0.12KW |
| Total power:7.24KW |
| Outline size:2280x840x1260mm |
| Net Weight: about 930kg |

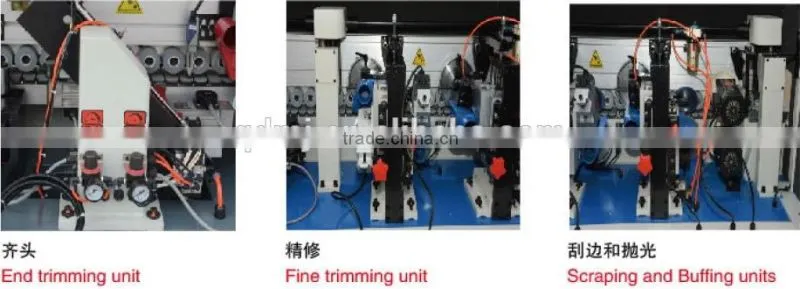

This machine is specially designed and exclusive for foreign market by us,which is multifunction but favourable price.It is used for MDF,wooden board and shaving board.It can complete the processes of feeding workpiece,feeding coiled material,edging,end cutting,fine trimming,scraping and buffing.It can achieve the level as same as foreign machines and the price is favourable.It is especially suitable for the factory producing board furniture.
Packaging & Shipping
Package: Plastic film package.
Delivery: About 30 days after receive the down payment.
