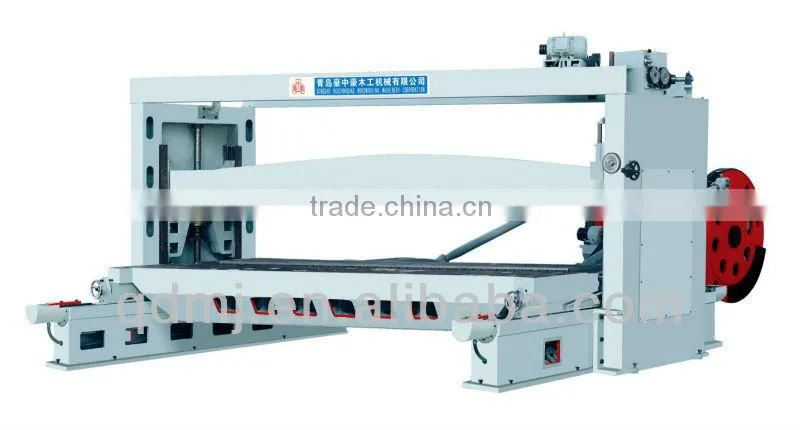

We Supply High Quality Woodworking Horizontal Veneer Slicer Machine BB1131B
| Model | BB1131B |
| Max.slong cap.for the flitch | 3000*510*700mm |
| Size of the knife | 3100*200*20mm |
| Slicing thickness | 0.07-2.0mm |
| Slicing speed | 18-32pcs/min |
| Flitch clamping method | auto & manul |
| Total power | 26.44Kw |
| flitch clamping method | auto & manul |
| main motor | 22Kw |
| rise & down motor | 3Kw |
| Clamping motor | 0.18Kw*8 |
| Installing size | 7698*4152*2808mm |
| Weight | 19000Kg |
video online: /v_show/id_XNTM4MjU2MTY0.html
1 Double V-chutes are used for both sides the machine, with high parallel; special polymer wear-resistant material coated on the surface.Machine runs in higher stability and with less friction.
2 Serve motor control system is used for timber feeding, guarantees the veneer thickness in a high precision, avoiding blade scratch on the timber
3 Whole casted beam holds the log stongly, and hydraulic driven hooks clamp the log tightly and effectively. Vacuum disc system is used inside the log beam to help holding the big timber in order to avoid logs deforming or dropping down during cutting procedure
4 All switch button are gathered in a cabinet.Single person can operate the machine avoiding the dangerous caused by fault
5 Special designed big size driving gear runs smoothly with a low noie when it runs ina high speed
#Double V-chutes
#presure bar adjusting advice
#wood-clamp mechanism
high power motor

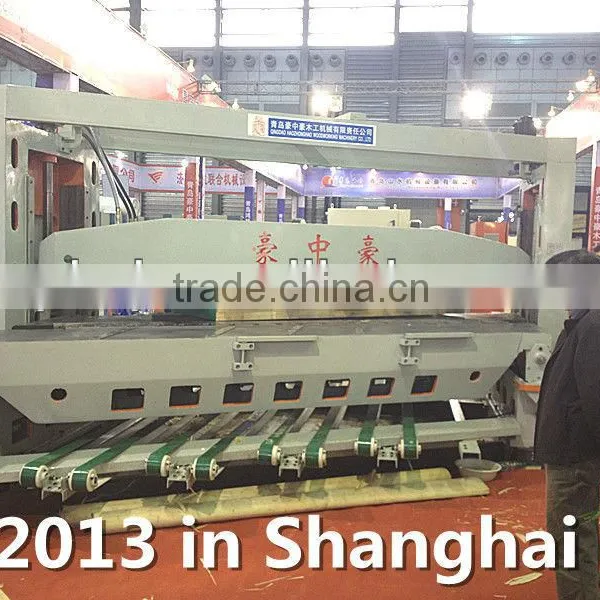

We are in The 12th International Forestry and Woodworking Machinery Exhibition in Shanghai with Veneer Slicer machine
Slicing the veneer in the exhibition

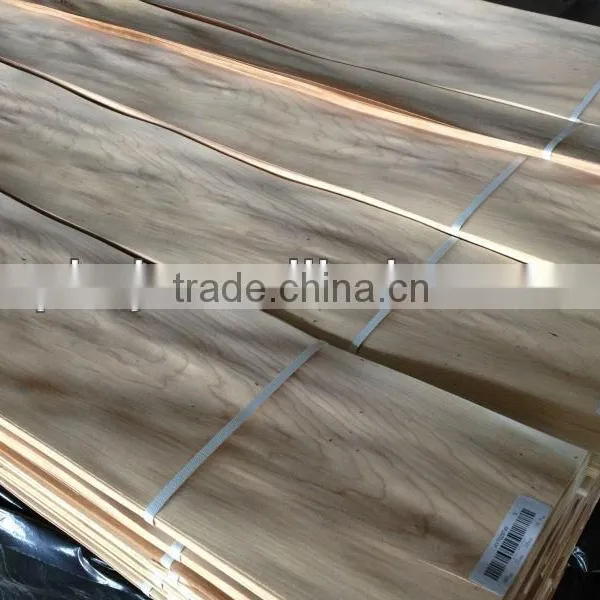

sliced veneer in factory
Payment: 30% by T/T deposit in advance as down payment, balance by T/T before shipment.
Package: Bare packing and fit in container directly.
Delivery: About 30 days after receive the down payment.
Warranty: Machine supplied quality guarantee period is: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.
