Top Electric Bicycle Torque Sensor

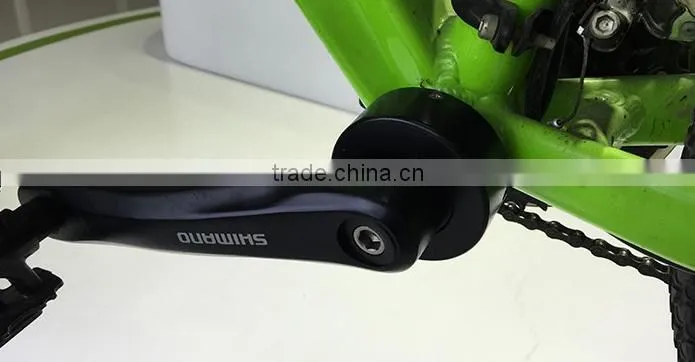

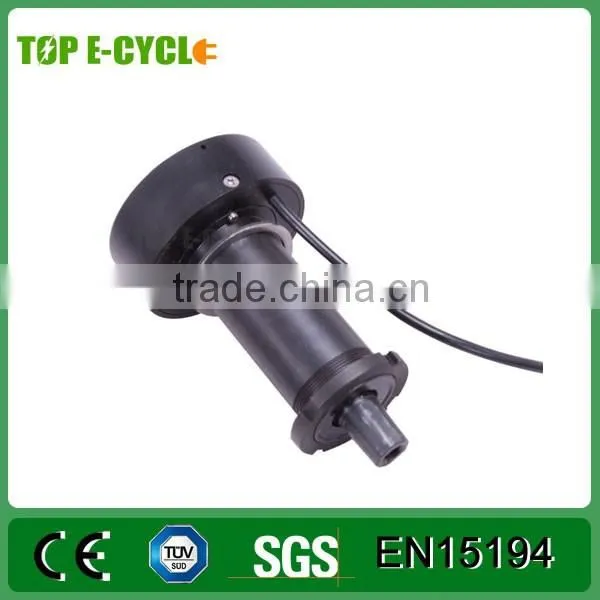

1.Pictures Of torque sensor
2.Descriptions Of torque sensor
Bottom Bracket Torque Sensor
| Position | B.B Width | BB Diameter | Weight | Effective Force Range |
| Bottom Bracket | 68mm | 33mm | 0.7kg | 0~35kg/f or 0~58N·m |
| Bottom Bracket |
72mm / 84mm / 90mm |
33mm | 0.75kg | 0~35kg/f or 0~58N·m |
Disc Speed Sensor
| Type | Speed Sensor |
| Sensory | 12 Pulses |
| Input Nominal Voltage | 5 DCV |
| Distance of Induction | Max 5 mm |
| Operation Temperature | -25 °C to 60 °C |
| Mounting Position | Bottom Bracket |
Pedal Torque Sensor
| Supply Voltage | 1.5V-3.8V |
| Working Time | 900 Hours |
| Working Environment | -40 °C~60 °C |
| Working Current | <1.2mA |
| Sleep Current | <10uA |
| Standby Time | 40000 hours |
3.Certifications Of Our Product
Welcome To Contact Us
Introduction Of Our Company
Q: Will the conversion kit fit my bicycle?
A: The conversion was designed to fit 90% of the bicycles, and you can check your bicycle fork(the two metal pieces that attach the wheel to the bicycle) to be sure. You will need at least 100mm for front wheel and 135mm for rear wheel.
Q: How long does it take to recharge the battery?
A: usually it takes 4—6 hours.
Q: Can the bicycle be ridden with just pedal power?
A: Yes. The choice is yours - battery power, pedal power or a combination of both.
Q: Does the electric bicycle waterproof?
A: Yes. You can ride our electric bikes in the light rain without worrying about
damaging the electric components.
Q: Could you supply OEM service?
A: MOQ 1 SETS
