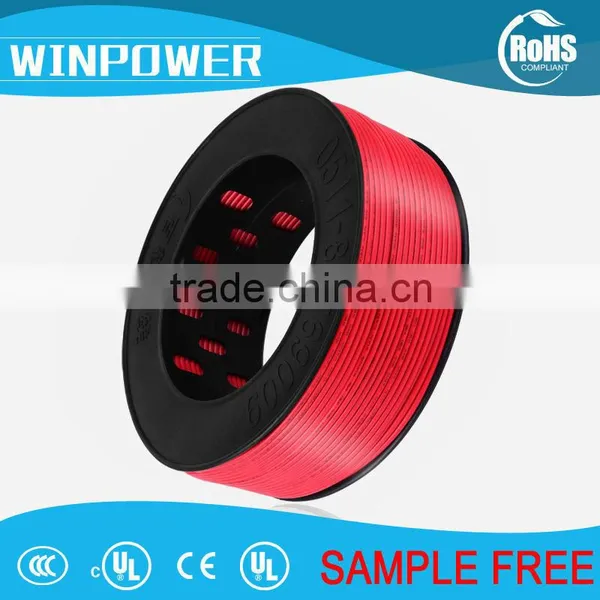

BV PVC copper buidling wire 4mm wire
Rated temperature: 70 centigrade
Rated voltage:450/750V
Reference standard: JB/T 6213.6-2006
Conductor: solid bare copper 1//2.25mm
Insulation :PVC insulation ,RoHS compliant
Uniform insulation thickness to ensure easy stripping and cutting
Generally it is applied into electrical equipment wire
CABLE CONSTRUCTION:
CONDUCTOR |
INSULATION |
MAX.COND. RESISTANCE (Ω/km,20°C,DC) |
DIELECTRIC STRENGTH (VAC,1min) |
|||
|
AWG |
CONSTRUCTION (No./mm) |
DIA.(mm) |
THICKNESS (mm) |
O.D. (mm) |
||
1.5 |
1/1.38 |
1.15 |
0.70 |
2.40 |
12.1 |
3000 |
32/0.20 |
1.31 |
0.70 |
2.60 |
12.1 |
3000 |
|
2.5 |
1/1.78 |
1.58 |
0.80 |
3.05 |
7.41 |
3000 |
49/0.25 |
2.02 |
0.80 |
3.60 |
7.41 |
3000 |
|
4 |
1/2.25 |
2.60 |
0.80 |
4.10 |
4.61 |
3000 |
56/0.3 |
3.42 |
0.80 |
4.00 |
4.61 |
3000 |
|
6.0 |
84/0.30 |
3.42 |
0.80 |
5.20 |
3.08 |
3000 |
10.0 |
84/0.40 |
4.56 |
1.00 |
6.30 |
1.83 |
3000 |
16.0 |
126/0.40 |
5.60 |
1.00 |
8.0 |
1.15 |
3000 |
