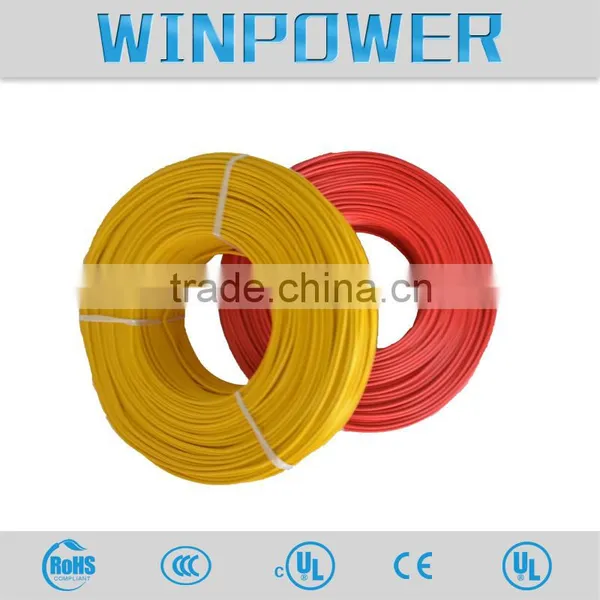

227 IEC 06 (RV ) 1.0mm Single Core Wire Factory
US$ 0.001 - 99
MOQ: 6 Kilometers
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Winpower
Model Number:
IEC 06(RV )1.0 mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Port of Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
227 IEC 06 (RV ) 0.75 mm Single Core Oxygen Free Copper WireUS$ 0.001 - 99MOQ: 6 Kilometers -
227 IEC 08 (RV-90) 0.5 MM2 Stranded Tinned Copper Electrical WireUS$ 0.001 - 99MOQ: 6 Kilometers
-
227 IEC 08 (RV-90) Pvc Insulated 1.0mm Stranded Copper WireUS$ 0.001 - 99MOQ: 6 Kilometers
-
227 IEC 08 (RV-90) Pvc Insulated 1.5mm Copper Electrical WireUS$ 0.001 - 99MOQ: 6 Kilometers
-
227 IEC 08 (RV-90) 2.5 MM2 Strand Copper PVC Electrical WireUS$ 0.001 - 99MOQ: 6 Kilometers
Place of Origin
Jiangsu, China
Brand Name
Winpower
Model Number
IEC 06(RV )1.0 mm
Type
Insulated
Application
Other, internal wiring
Conductor Material
Copper
Conductor Type
Stranded
Insulation Material
PVC
60227 IEC 06 (RV ) 0.5 mm single core wire factory
Product Description
- Rated temperature: 70 degree centigrade
- Rated voltage: 300V/500V
- Reference Standard: GB /T5023-2008
- Conductor: stranded bare copper conductor 36/0.20mm
- Insulation: PVC insulation, comply with ROHS environmental standard
- Flame Retardant Test: GB12666.2 flame test
- Uniform thickness to ensure stripping and cutting easily
- general purpose internal wiring of appliance
CABLE CONSTRUCTION:
CONDUCTOR |
INSULATION |
MAX.COND. RESISTANCE (Ω/km,20°C,DC) |
DIELECTRIC STRENGTH (VAC,5min) |
|||
|
CROSS SECTION (mm2) |
CONSTRUCTION (No./mm) |
DIA. (mm) |
THICKNESS (mm) |
O.D. (mm) |
||
0.5 |
16/0.2AS |
0.88 |
0.6 |
2.1 |
40.1 |
2500 |
0.75 |
24/0.20AS |
1.13 |
0.6 |
2.4 |
26.7 |
2500 |
1.0 |
32/0.20AS |
1.24 |
0.6 |
2.5 |
20.0 |
2500 |
Company Information
Packaging & Shipping
FAQ
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2009
Factory Size
3,000-5,000 square meters
Total Employees
11 - 50 People
