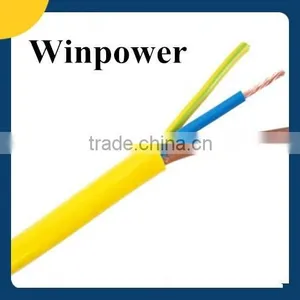

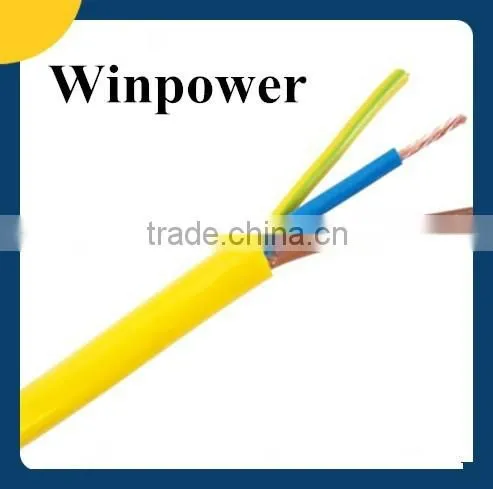

227 IEC 53 PVC jacket RVV cable 3*0.75mm
Rated temperature:70 centigradee
Rated Voltage:300V/500V
Reference standards: GB5023.5-2008
Stranded bare copper conductor 0.75mM*3
PVC Jacket ,compliant RoHS environmental standards
Pass GB 12666.2 flame test
Unifomal insulation thickness ,to make easy stripping and cutting
Generally it applied into internal wire
CONDUCTOR |
INSULATION
|
JACKET |
MAX.COND. RESISTANCE (Ω/km,20°C,DC) |
DIELECTRIC STRENGTH (VAC,1min)
|
|||||
|
| |||||||||
AWG |
CONSTRUCTION (No./mm) |
DIA. (mm) |
Core (No.) |
THICKNESS (mm) |
O.D. (mm) |
THICKNESS (MM) |
O.D. (MM) |
||
|
0.75
|
24/0.20
|
1.13
|
2 |
0.61 |
2.35 |
0.80 |
3.95*6.30 |
26.7
|
2000 |
2 |
0.61 |
2.35 |
0.80 |
6.30 |
2000 |
||||
3 |
0.61 |
2.35 |
0.82 |
6.70 |
2000 |
||||
4 |
0.61 |
2.35 |
0.82 |
7.30 |
2000 |
||||
|
1
|
32/0.20
|
1.31
|
5 |
0.61 |
2.35 |
0.93 |
8.2 |
20.0
|
2000 |
2 |
0.60 |
2.50 |
0.80 |
6.60 |
2000 |
||||
3 |
0.60 |
2.50 |
0.86 |
7.10 |
2000 |
||||
4 |
0.60 |
2.50 |
0.93 |
7.90 |
2000 |
||||
5 |
0.60 |
2.50 |
0.93 |
8.60 |
2000 |
||||
