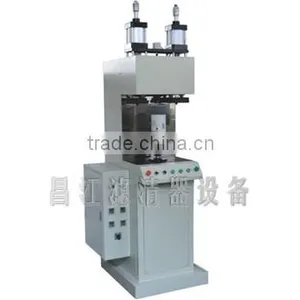

Full Auto Fuel Filter Seaming Machine Oil Filter Making Machine , 12cans / Min From Filter Manufacturing Equipment
US$ 500 - 24,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
CHANGJIANG
Model Number:
CJNF-130A Wi
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO AND SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Auto Turntable Seaming Oil Filter Making Machine With High SpeedUS$ 500 - 24,000MOQ: 1 Set -
Can Seaming Machine Air Filter Manufacturing Equipment With 4KW MotorUS$ 500 - 24,000MOQ: 1 Set
-
Oil Filter Element Spiral Tube Making Machine Filter Manufacturing EquipmentUS$ 500 - 24,000MOQ: 1 Set
-
Multi-function Screen Printing Machine of Oil Filter Making MachineUS$ 500 - 24,000MOQ: 1 Set
-
Fast Speed Round Oil Filter Making Machine for Silk Printing , Easy OperationUS$ 500 - 24,000MOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
CHANGJIANG
Model Number
CJNF-130A Wi
After-sales Service Provided
Engineers available to service machinery overseas
Detailed Product Description

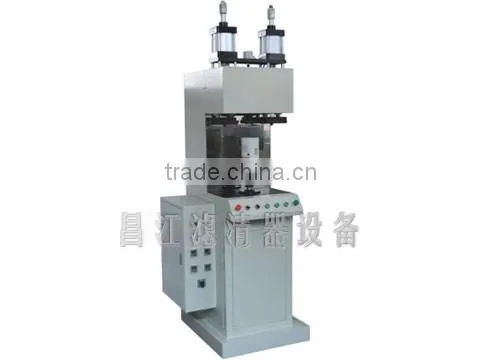

Full Auto Fuel Filter Seaming Machine Oil Filter Making Machine , 12cans / min
Specification
- Production Capacity: 8pcs/min
- Sealing Diameter: 80-130mm
- Sealing Parts Assembly Height :200-300mm
- Sealing Parts Steel Plate Max Thickness :0.5-1mm
- Delivery Range :150mm
- Motor Power:2.25kw
- Working Air Pressure:0.6Mpa
- Power Supply: 380V
- M/C Weight:800kg
- M/C Size: 940*640*2150
Feature
- This specially designed machine has the function of seal gluing and seaming at the same time and it is high efficiency.
- The seaming molds moving action is automatically finished by cylinder set program.
- Pressing the left right buttons manually at the same time, so that safety operation.
- This strong structure designed machine has the circulation function and its electric control is easy to operate.
- This high degree of automatic machine has the completely auto seaming circulation of the filter parts loading clutch seaming rollers advance and retreat. It is high efficiency and good seaming quality.
- This machine adopts the inverted seaming ways and far develop its working efficiency.
- The motor of the seaming machine equips the brake device which will avoid the inner pressing mold of loosening. Then the filters are seamed with high quality.
Applications
The machine is professional used to seal the shells of rotary type and fuel filter with sealing back plate.
