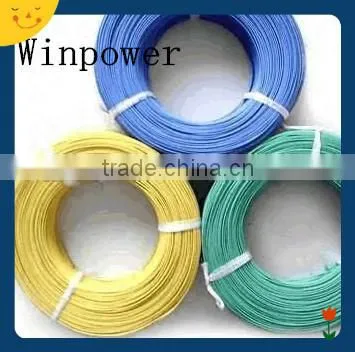

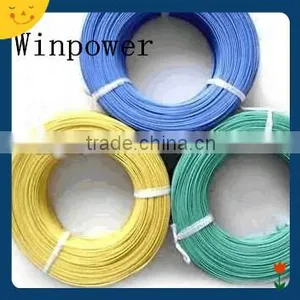

UL 1007 electrical wire for internal use
SPECIFICATION: 28AWG
REFERENCE STANDARD: UL758,UL1581,CSA C22.2No.210.2
FLAME TEST: UL VW-1, CSA FT1 flame test
RATED TEMPERATURE:80 centigrade degree
RATED VOLTAGE: 300v
CONDUCTOR: 1/0.32mm solid copper
INSULATION THICKNESS: 0.38mm pvc
OUTER DIAMETER: 1.15mm
MAX. CONDUCTOR RESISTANCE: 227Ω/km
DIELECTRIC STRENGTH: 2000v
MARKING:
E330446 AWM STYLE 1007 AWG NO. 80°C 300V VW-1 --- AWM I A 80°C 300V FT1 RoHS COMPLIANT DANYANG WINPOWER
|
CONDUCTOR |
INSULATION |
MAX.COND. RESISTANCE Ω/km,20,DC |
DIELECTRIC STRENGTH VAC,1min |
|||
|
AWG |
CONSTRUCTION (No./mm) |
DIA. (mm) |
THICKNESS mm |
O.D. (mm) |
||
30 |
1/0.254 7/0.10 |
0.25 0.30 |
0.38 0.38 |
1.10 1.15 |
361 381 |
2,000 |
28 |
1/0.32 7/0.127 |
0.32 0.38 |
0.38 0.38 |
1.15 1.20 |
227 239 |
2,000 |
26 |
1/0.404 7/0.16 |
0.40 0.48 |
0.38 0.38 |
1.25 1.30 |
143 150 |
2,000 |
24 |
1/0.511 11/0.16 |
0.51 0.61 |
0.38 0.38 |
1.35 1.45 |
89.3 94.2 |
2,000 |
22 |
1/0.643 17/0.16 |
0.64 0.76 |
0.38 0.38 |
1.50 1.60 |
56.4 59.4 |
2,000 |
20 |
1/0.813 26/0.16 |
0.81 0.94 |
0.38 0.38 |
1.65 1.80 |
35.2 36.7 |
2,000 |
18 |
1/1.024 41/0.16 |
1.02 1.18 |
0.38 0.38 |
1.90 2.00 |
22.2 23.2 |
2,000 |
16 |
1/1.29 26/0.254 |
1.29 1.49 |
0.38 0.38 |
2.20 2.40 |
14.0 14.6 |
2,000 |
Packing:1. 2000ft per roll ,with PE film as outer package.
2. 4 rolls are to be packed in one carton
Delivery: 3-15 days after receiving the down payment
Terms of payment: 1.T/T(30% down payment and pay off after receiving the duplicate of B/L)
2. L/c at sight
1. Sample Available
2. OEM are offered
3. Customer wire can be manufactured
4. Convenient transportation path to DANYANG
1) Take flight to Shanghai,and aboard Harmony train from Shanghai Station to Danyang Station about one hour
2) Take flight to Changzhou, and aboard Harmony train from Changzhou Station to Danyang station about 20 minutes.
