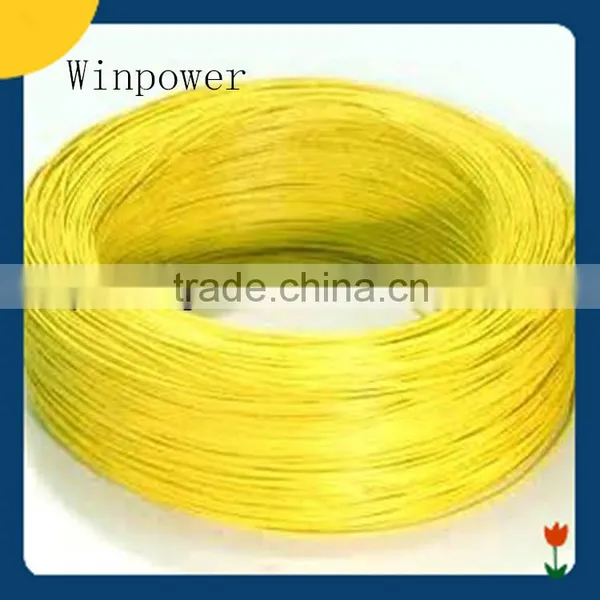

UL1569 24AWG pvc copper conductor wire for electrical equipments
All our wires and cables are made of 99.99% pure oxygen free copper and high quality PVC which comply with the European Union RoHS environmental protection instruction.
Specification: UL1569 24 AWG
Rated temperature: 105°C
Rated voltage: 300V
Reference Standard: UL758, UL1581,CSAC22.2NO.210.2
Conductor: stranded tinned copper conductor 30~10AWG
Flame Retardant Test: UL VW-1, CSA FT1 flame Test
Uniform thickness to ensure stripping and cutting easily
Aplied into the electrical equipments as internal wire
MARKING:
E330446 AWM STYLE 1569 AWG NO. 105°C 300V VW-1 --- AWM I A 105°C 300V FT1 RoHS COMPLIANT DANYANG WINPOWER
CONDUCTOR |
INSULATION |
MAX.COND. RESISTANCE (Ω/km,20°C,DC) |
DIELECTRIC STRENGTH (VAC,1min) |
|||
AWG |
CONSTRUCTION (No./mm) |
DIA.(mm) |
THICKNESS (mm) |
O.D. (mm) |
||
20 |
1/0.813 |
0.81 |
1.53 |
4.00 |
35.2 |
2,000 |
26/0.16 |
0.94 |
1.53 |
4.10 |
36.7 |
2,000 |
|
18 |
1/1.024 |
1.02 |
1.53 |
4.20 |
22.2 |
2,000 |
16/0.254 |
1.17 |
1.53 |
4.30 |
23.2 |
2,000 |
|
16 |
1/1.29 |
1.29 |
1.53 |
4.45 |
14 |
2,000 |
26/0.254 |
1.49 |
1.53 |
4.65 |
14.6 |
2,000 |
|
14 |
1/1.63 |
1.63 |
1.53 |
4.80 |
8.78 |
2,000 |
41/0.254 |
1.88 |
1.53 |
5.05 |
8.96 |
2,000 |
|
12 |
65/0.254 |
2.36 |
1.53 |
5.70 |
5.64 |
2,000 |
10 |
105/0.254 |
3.10 |
1.53 |
6.30 |
3.546 |
2,000 |
Packing:1.2000ft per roll ,with PE film as outer package
2. 4 rolls are to be packed in one carton.
Delivery: 3-15 days after receiving the down payment
Terms of payment:
1. T/T (30% down payment and pay off after receiving the duplicate of B/L)
2. L/C at sight
1. Sample Available
2. OEM are offered
3. Customer wire can be manufactured
6. Convenient transportation path to DANYANG
1) Take flight to Shanghai,and aboard Harmony train from Shanghai Station to Danyang Station about one hour
2) Take flight to Chang zhou, and aboard Harmony train from Changzhou Station to Danyang station about 20 minutes.
