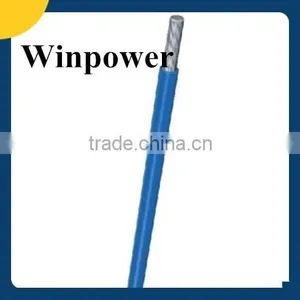

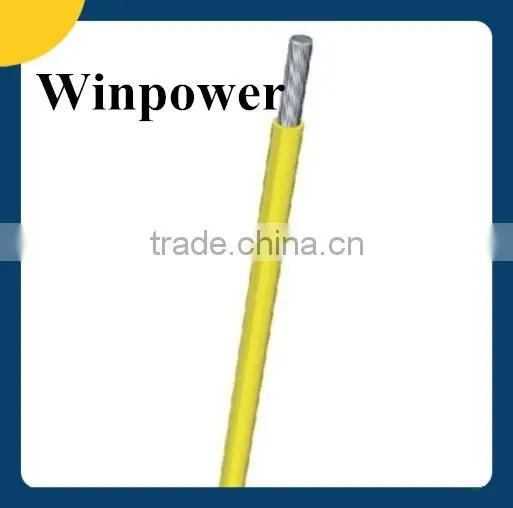

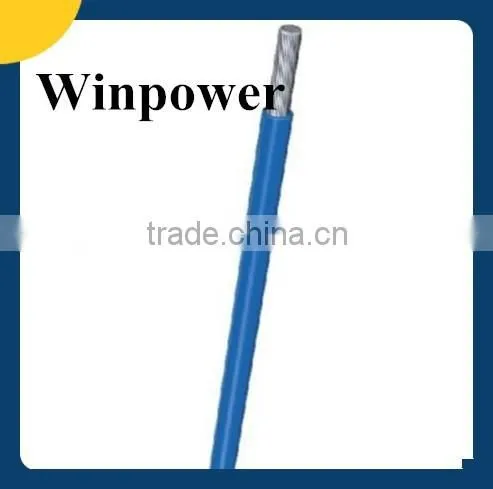

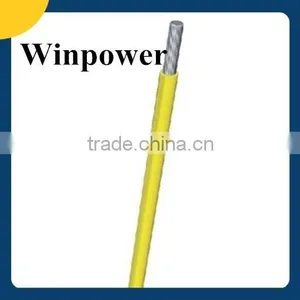

UL1672 reinforced PVC insulated 26 awg hook up wire
- Rated temperature: 105°C
- Rated voltage: 300V
- Reference Standard: UL758, UL1581,CSAC22.2NO.210.2
- Conductor: stranded tinned copper conductor 30~10AWG
- Insulation: PVC insulation and PVC jacket , comply with ROHS environmental standard
- Flame Retardant Test: UL VW-1, CSA FT1 flame Test
- Uniform thickness to ensure stripping and cutting easily
- For general purpose internal wiring of appliance
MARKING:
E330446 AWM STYLE 1672 AWG NO. 105°C 300V VW-1 --- AWM I A 105°C 300V FT1 RoHS COMPLIANT DANYANG WINPOWER
CONDUCTOR |
INSULATION |
COVERING |
MAX.COND. RESISTANCE (Ω/km,20°C,DC) |
DIELECTRIC STRENGTH (VAC,1min) |
||||
AWG |
CONSTR- UCTION (No./mm) |
DIA. (mm) |
INSULATION THICKNESS (mm) |
O.D. (mm) |
JACKET THICKNESS (mm) |
O.D. (mm) |
||
28 |
1/0.32 7/0.127 |
0.32 0.38 |
0.44 0.46 |
1.20 1.30 |
0.40 0.40 |
2.00 2.10 |
227 239 |
2,000 |
26 |
1/0.404 7/0.16 |
0.40 0.48 |
0.45 0.46 |
1.30 1.40 |
0.40 0.40 |
2.10 2.20 |
143 150 |
2,000 |
24 |
1/0.511 11/0.16 |
0.51 0.61 |
0.49 0.49 |
1.50 1.60 |
0.40 0.40 |
2.30 2.40 |
89.3 94.2 |
2,000 |
22 |
1/0.643 17/0.16 |
0.64 0.76 |
0.48 0.47 |
1.60 1.70 |
0.40 0.40 |
2.40 2.50 |
56.4 59.4 |
2,000 |
20 |
1/0.813 26/0.16 |
0.81 0.94 |
0.44 0.48 |
1.70 1.90 |
0.40 0.40 |
2.50 2.70 |
35.2 36.7 |
2,000 |
18 |
1/1.024 16/0.254 41/0.16 |
1.02 1.17 1.18 |
0.44 0.47 0.46 |
1.90 2.10 2.10 |
0.40 0.40 0.40 |
2.70 2.90 2.90 |
22.2 23.2 23.2 |
2,000 |
16 |
1/1.29 26/0.254 |
1.29 1.49 |
0.46 0.46 |
2.20 2.40 |
0.40 0.40 |
3.00 3.20 |
14.0 14.6 |
2,000 |
14 |
1/1.60 41/0.254 |
1.60 1.88 |
0.45 0.46 |
2.50 2.80 |
0.40 0.40 |
3.30 3.60 |
8.78 8.96 |
2,000 |
Packing: 2000ft are to be packed in PE film and carton
Delivery:3-15 days after receiving the down payment
Terms of payment:T/T (30% down payment and pay off after receiving the duplicate of B/L )
L/C at sight
1. Sample Available.
2. OEM are offered.
3. Special wire can be manufactured.
4. Fast delivery 7 days .
