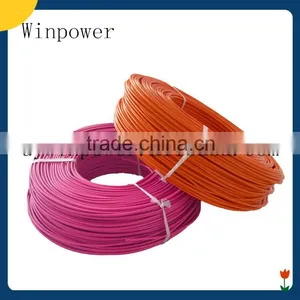

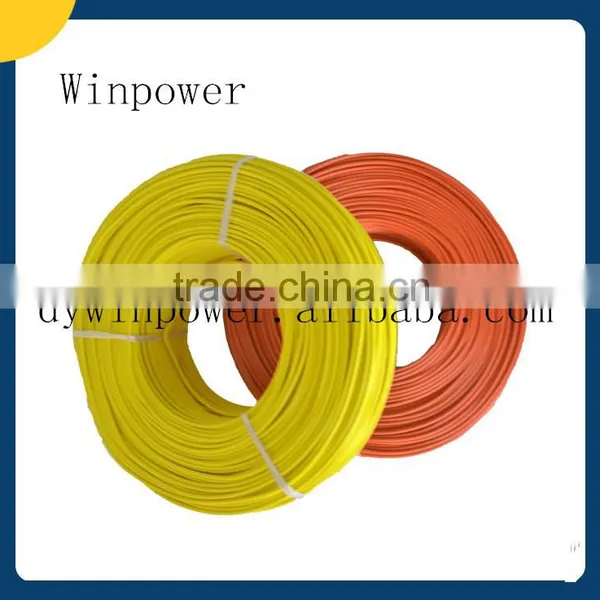

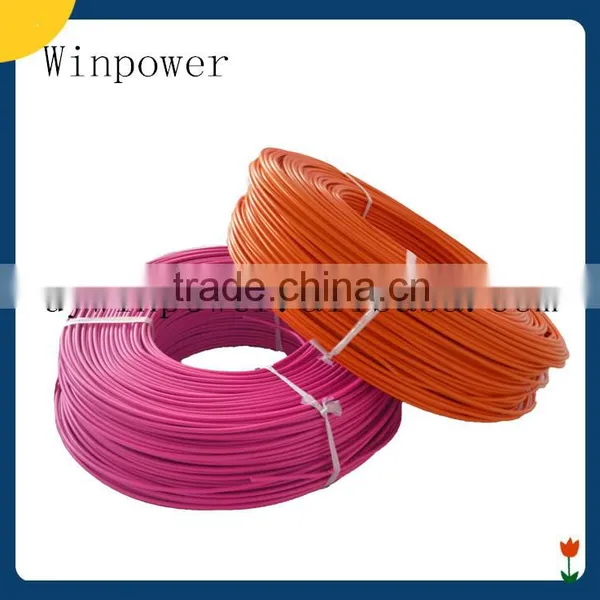

Help CenterHalogen Free Copper Wire UL10368 16AWG
Related Products
-
Multistranded Conductor Wire AWM UL10368 12AWGUS$ 0.001 - 99MOQ: 6 Kilometers -
Multistranded Conductor Wire AWM UL10368 10AWGUS$ 0.001 - 99MOQ: 6 Kilometers
-
Ul3385 30awg Xlpe Insulated Flexible WireUS$ 0.001 - 99MOQ: 6 Kilometers
-
Ul3385 Irradiated Xlpe Cross-linked Electric WireUS$ 0.001 - 99MOQ: 6 Kilometers
-
Ul3385 26AWG Cross-linked Polyethylene Electric WireUS$ 0.001 - 99MOQ: 6 Kilometers
halogen free crosslinked wire UL10368 14AWG
All our wires and cables are made of 99.99% pure oxygen free copper and high quality PE which comply with the European Union RoHS environmental protection instruction.
SPECIFICATION: 14 AWG
REFERENCE STANDARD: UL758,UL1581,CSA C22.2No.210.2
FLAME TEST: CSA FT2 flame test
RATED TEMPERATURE: 105 Deg Centigrade
RATED VOLTAGE: 300v
CONDUCTOR :41/0.254mm stranded tinned copper
INSULATION THICKNESS: 0.31mm
PE OUTER DIAMETER: 2.50 mm
MAX. CONDUCTOR RESISTANCE: 8.96 Ω/km
DIELECTRIC STRENGTH: 2000v
CONDUCTOR |
INSULATION |
MAX.COND. RESISTANCE (Ω/km,20°C,DC) |
DIELECTRIC STRENGTH (VAC,1min) |
|||
AWG |
CONSTRUCTION (No./mm) |
DIA. (mm) |
THICKNESS (mm) |
O.D. (mm) |
||
30 |
1/0.254 7/0.10 |
0.25 0.30 |
0.25 0.25 |
0.75 0.80 |
361 381 |
2,000 |
28 |
1/0.32 7/0.127 |
0.32 0.38 |
0.27 0.26 |
0.85 0.90 |
227 239 |
2,000 |
26 |
1/0.404 7/0.16 |
0.40 0.48 |
0.25 0.26 |
0.90 1.00 |
143 150 |
2,000 |
24 |
1/0.511 7/0.20 |
0.51 0.60 |
0.25 0.25 |
1.00 1.10 |
89.3 94.2 |
2,000 |
22 |
1/0.643 7/0.254 |
0.64 0.76 |
0.25 0.27 |
1.15 1.30 |
56.4 59.4 |
2,000 |
20 |
1/0.813 7/0.32 |
0.81 0.94 |
0.27 0.27 |
1.35 1.50 |
35.2 36.7 |
2,000 |
18 |
1/1.024 16/0.254 |
1.02 1.17 |
0.27 0.31 |
1.55 1.80 |
22.2 23.2 |
2,000 |
16 |
1/1.29 26/0.254 |
1.29 1.49 |
0.25 0.31 |
1.80 2.10 |
14.0 14.6 |
2,000 |
14 |
1/1.60 41/0.254 |
1.60 1.88 |
0.30 0.31 |
2.20 2.50 |
8.78 8.96 |
2,000 |
12 |
65/0.254 |
2.36 |
0.37 |
3.10 |
5.64 |
2,000 |
10 |
105/0.254 |
3.10 |
0.76 |
4.90 |
3.546 |
2,000 |
Packing: Packing : 2000ft per roll ,with PE film as outer package
Carton A: 51cm*25cm*27cm Carton B: 33cm*33cm*33cm
Delivery: 3-15 days after receiving the down payment
Terms of payment : T/T (30% down payment and pay off after receiving the duplicate of B/L)
L/C at sight
1. Sample Available.
2. OEM are offered.
3. Customer wire can be manufactured.
4. Convenient transportation path to DANYANG.
1) Take flight to Shanghai, and aboard Harmony train from Shanghai Station to Danyang Station about one hour.
2) Take flight to Changzhou, and aboard Harmony train from Changzhou Station to Danyang Station about 20 minutes.
