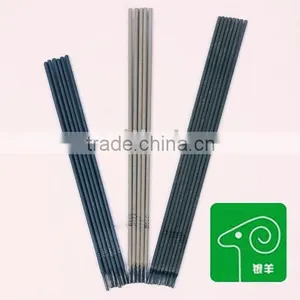

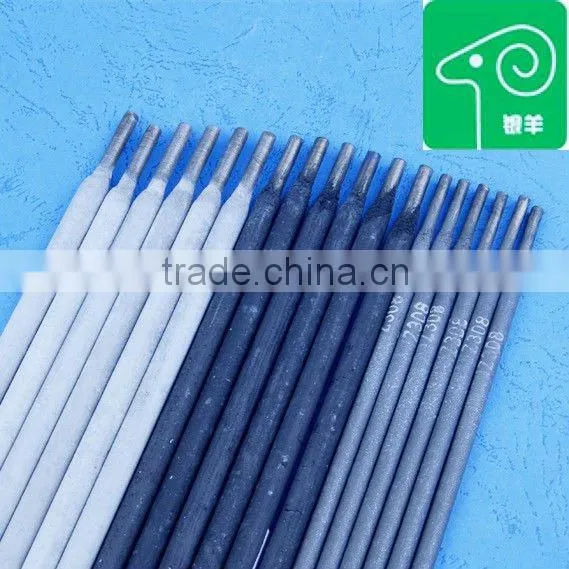

High Quanlity Carbon Steel Electrode E6013

Name: High Quanlity Carbon Steel Electrode E6013
Brand: SSTS
SKU: 117580965

US$ 700 - 1,000 MOQ: 100 Kilograms

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

SSTS

Model Number:

E6013

Ningbo Silver Sheep Tin Solder Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name SSTS

Model Number E6013

Material Stainless Steel

Length MM

Operating Current A

Welding Current A

Operating Temperature ℃

Diameter MM

Specifications

we are prfessional welding metal manufactory load in Ningbo of CHINA, we also product the carbon steelelectrode for E6013

Carbon steel electrode

AWS E6013
Applications:
Welding of steel sheet structures, light structural steels,automobile bodies, machinery guards....

AWS E6011
Applications:
Welding of shipbuilding structures such as buildings and bridges, storage tanks, pipes and pressure vessel....

AWS E7018
Applications:
Welding of carbon steel and low alloy steel....

AWS E7016
Applications:
Welding of important structures made of low alloy steel with corresponding grade of strength....

No.	Standard model control		Physical and chemical properties
	Standard model control		Chemical composition%					Mechanical Properties
	GB	AWS	C	Si	Mn	S	P	σb(MPa)	σs(Mpa)	δ5(%)	AKV(J)
J421	E4313	E6013	≤0.10	≤0.35	0.3-0.6	≤0.035	≤0.04	≥490	≥400	≥22	(-30)≥27
J422	E4303	E4303	≤0.12	≤0.25	0.3-0.6	≤0.035	≤0.04	≥490	≥400	≥22	(-30)≥27
J506Fe	E5018	E7018	≤0.12	≤0.75	≤1.6	≤0.035	≤0.04	490-660	≥510	≥27	(-40)≥47
J501Fe18	E5024	E7024	≤0.12	≤0.60	≤1.25	≤0.035	≤0.04	490-660	≥510	≥27	(-20)≥47
J506Fe-1	E5018-1	E7018-1	≤0.15	≤0.75	≤1.6	≤0.035	≤0.035	490-660	≥510	≥27	(-40)≥47
