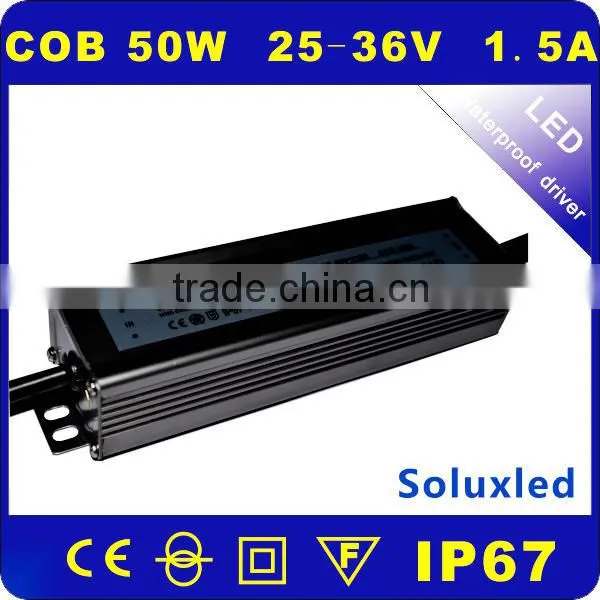

Help CenterSoluxled LED Driver Power Supply For Flood Light With PFC>0.95 IP67 50W
Related Products
-
Waterproof Led Driver IP67 With PFC 25-36V 20W 620mA Power SupplyUS$ 3.5 - 4MOQ: 1 Piece -
Soluxled IP67 3Wwaterproof Electronic Led DriverUS$ 1.05 - 2MOQ: 1 Piece
-
China Soluxled Waterproof IP67 Led Power Driver With 1*1w 2-4V 300mAUS$ 1.05 - 2MOQ: 1 Piece
-
Led Driver With Constant Current 2-4*3W Power SupplyUS$ 1.81 - 2.3MOQ: 1 Piece
-
Driver for Led Waterproof IP67 10W 9-12V 900mA Power Supply Soluxled Brand GuangdongUS$ 1 - 2MOQ: 1 Piece
Specifications
1.CE&BV certificate;2.Full aluminum shell with good radiating;
3.multifunction protection;
4.high power factor.
Product code:HG-WP-PF2250B
Output Watt |
50W COB |
Output current |
1500mA±5% |
Output voltage |
25-36V |
Input voltage |
AC100-260V |
Brand |
SOLUXLED |
Prower Factor |
PF≥0.95 |
Size |
162*42*32mm |
Load regulation |
2(%) |
Current accuracy |
5(%) |
Type |
waterproof driver |
Efficiency |
88% |
Modulation mode |
PWM |
Voltage regulation |
2(%) |
Protection |
Over current |
Short circuit | |
Over voltage | |
Over temperature |
Product characteristics:
² Constant current;
² without flicker;
² Low heat,high efficiency;
² Large selection of the parameter, long working-time;
² Using the high frequency low resistance electrolysis with 8000 hours , excellent quality and stable
performance.
² passing 100% aging test, high reliability;
² With the production of Short circuit,broken circuit,Automatic overload protection,more safety more stable.
Output characteristics:
Ø type:Constant current,seclusion type
Ø watt:50W
Ø voltage:25-36V
Ø current:1500mA
Ø ripple:2Vp-p
Ø Output groups:1
Working temperature:-30°C ~ +65°C
Quality guarantee:
ü All the driver have automatic protection of overload, short circuit, temperature,etc.
ü Guarantee:1.The warranty period is 3 years.2.During the time ,if the product have any question ,
we can change the same to you.
ü We can design the product according to your requirement. If you want to guarantee over 3 years, the
price could be negotiated separately.
Detail picture:
Ground wire Leakage Protection :
Real testing Picture :
Well Internal package :
Outside Cartons :
1 Can order samples for testing by yourself .
2 the current can be adjusted according to customer requirement (1.2 -1.5A )
3 OEM is welcome , we can printing your company Logo on the label .
About us:
Production process:
SMT Automated machines :
Custumers feedback:
The customers said good that is really good!!!

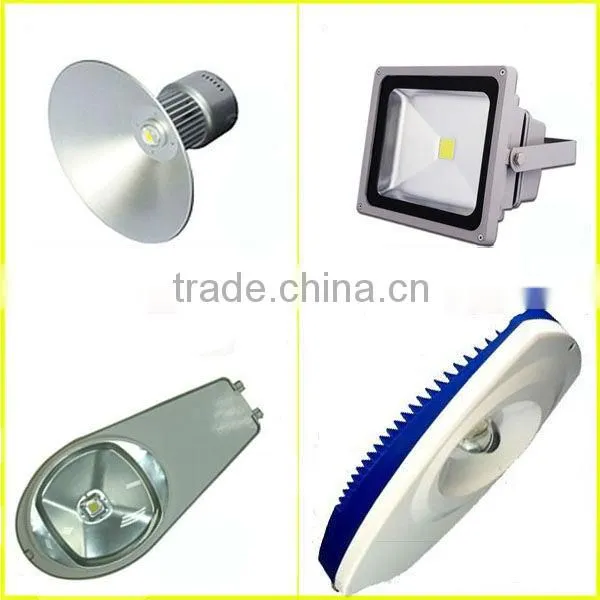

Application: widely used in flood light/street light/high bay light and others led lighting projects.
Notes:
Payment::L/C,T/T,Western union,Money grame,Ali-pay, etc.
FAQ
Q: The picture is really beautiful, if I buy the items from you, are there same with the picture on your website?
A: Yes, dear. Please don't worry about it. All the pictures are 100% originally taken by our photos. We guarantee the items you received will be the same as the described.
Q: How do I pay for my purchase?
A: We accept the following payment methods: T/T, Western Union, L/C, PayPal.
Q: Is there any tracking Number for my item?
A:Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website. The international shipping cost long time, please know about this.
Q: What if I feel confusions with the products?
A: We guarantee to provide the best after-sell service to if you have any question of our products please don't hesitate to tell us.
