Specifications
1.INPUT: AC 90-260V2.OUTPUT: 6-10*1W 310mA 18-36V
3.SIZE: 71*20*20MM
4.2 years warranty
waterproof led driver
Soluxled HG-WP2207B waterproof led driver with constant current 6-10*1W 310mA 18-36V power supply IP67
Product Information
| Type | Constant Current |
| Input Voltage | AC90-260V |
| Output Voltage | 18-36V,10-18V |
| Output Current | 310mA±5%,620mA±5% |
| Output Watt | 6-10*1W,2-4*3W |
| Output Ripple | 2Vp-p |
| Frequency | 47-63Hz |
| Efficiency | 85% |
| Modulation | PMW |
| Size | 71*20*20MM |
| Temperature | -25°C~+65°C |
| Insulation | Yes |
| Waterproof Level | IP67 |
| PF | ≤0.65 |
| MOQ | 1 pcs |
| Warranty | 2 Years |

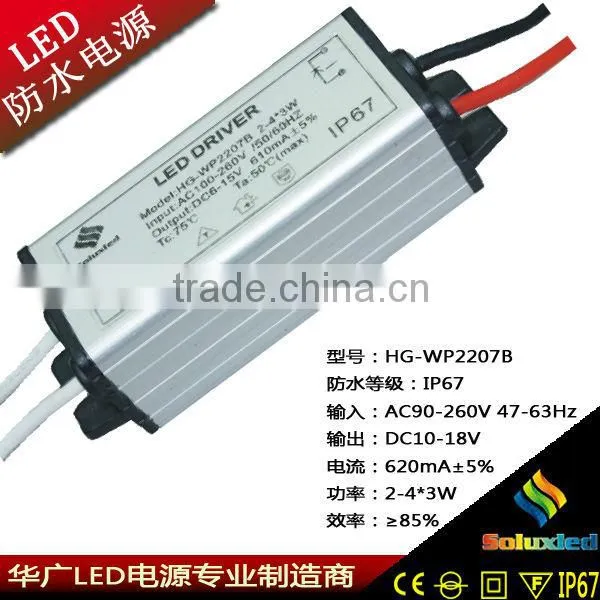

Product Picture
Certificate
Quality Guarantee
1. The warranty period is 2 years.
2. If the products have any question during the time, we can fix it or change the same to you.
3. We can design the product according to your requirement. If you want to guarantee over 3 years, the price could be negotiated separately.
Storage
1. Keep Dry, don’t shock
2. Storage in below 35°C, humidity less than 75% environment
Tips
1. The product must be connected the LED lamps, and, can't no-load power for a long time then turning on the product
2. Do not short circuit.
3. Please refer to the instruction manual before use.
4. If not sure how to use the product, please contact us before use.
Protection
² Short circuit / over current / over voltage/ Over load/ Over temperature
