Help Center2016 New Led Tube Light Driver 36w 450ma
Related Products
-
Non-isolated 24w Tube Light Led Driver Pf>0.9US$ 1 - 1.5MOQ: 1 Piece -
Isolated t5 t8 T10 Led Tube Driver 18-25w ce ApprovedUS$ 3 - 3.5MOQ: 1 Piece
-
Factory Direct Led Tube Light Driver 9-18wUS$ 0.5 - 1MOQ: 1 Piece
-
28W Non-isolated Led Driver for Tube LightUS$ 1 - 1.5MOQ: 1 Piece
-
10W 220mA DC42-82V LED Driver PF>0.95, LED Tube Light DriverUS$ 1 - 1.5MOQ: 100 Pieces
Product features:
² Full range input: AC100-260V
² Constant current, non-isolated
² 100% burn-in tests (at full load), no flicker, stable and high reliability.
² Protection: Over voltage, Over load, Over temperature, Short circuit
² IP20 for indoor installtions
² Rated output can be customized
Product information:
Item No. |
HG-PF2227B |
Type |
constant current |
| Input Voltage | AC100-260V |
| Output Voltage | DC60-82V |
| Output Current | 450mA ±5% |
| Output Power | 30-36W |
| Power Factor | 0.95 |
| Efficiency | 90% |
| Working Temperaturer | -20°C~+50°C |
| Protection | Short circuit / over current / over voltage |
| Size | 153*15*10 mm |
Weight |
30g |
MOQ |
1pcs |
Warranty |
3 years |

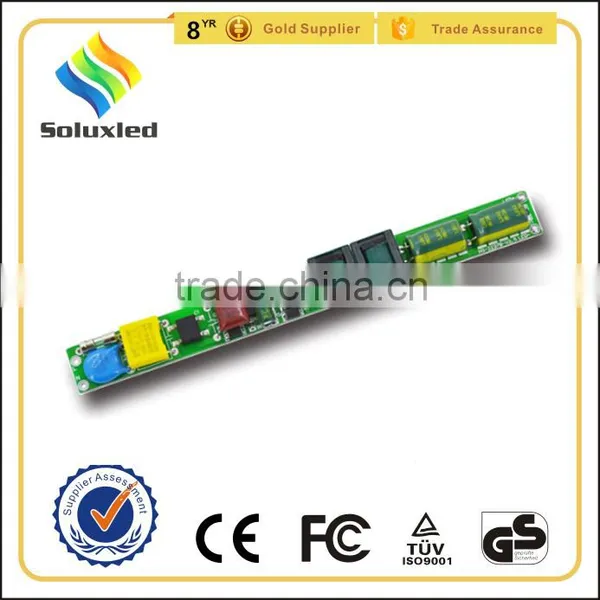

Detailed picture:
Application: led tube light, panal light
Certificate: CE and BV
Quality guarantee:
ü 1.The warranty period is 1-2 years.
2. During the time ,if the product have any question, we can change the same to you.
ü We can design the product according to your requirement. If you want to guarantee over 3 years, the price could be negotiated separately.
Production process:
Packing:
cartons
Shipping:
Payment:
Payment::L/C,T/T,Western union,Money grame,Ali-pay, etc.
About us:
Custumers feedback:
