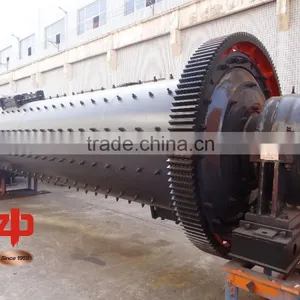

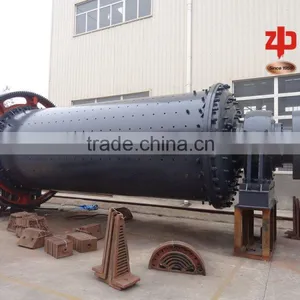

China Silica Powder Ball Mill and Classifying Machine With Higher Capacity and Long Life Span by Henan Zhongde thumbnail-1
China Silica Powder Ball Mill and Classifying Machine With Higher Capacity and Long Life Span by Henan Zhongde thumbnail-2
China Silica Powder Ball Mill and Classifying Machine With Higher Capacity and Long Life Span by Henan Zhongde thumbnail-3
China Silica Powder Ball Mill and Classifying Machine With Higher Capacity and Long Life Span by Henan Zhongde thumbnail-4
China Silica Powder Ball Mill and Classifying Machine With Higher Capacity and Long Life Span by Henan Zhongde thumbnail-5
China Silica Powder Ball Mill and Classifying Machine With Higher Capacity and Long Life Span by Henan Zhongde thumbnail-6
China Silica Powder Ball Mill and Classifying Machine With Higher Capacity and Long Life Span by Henan Zhongde photo-1

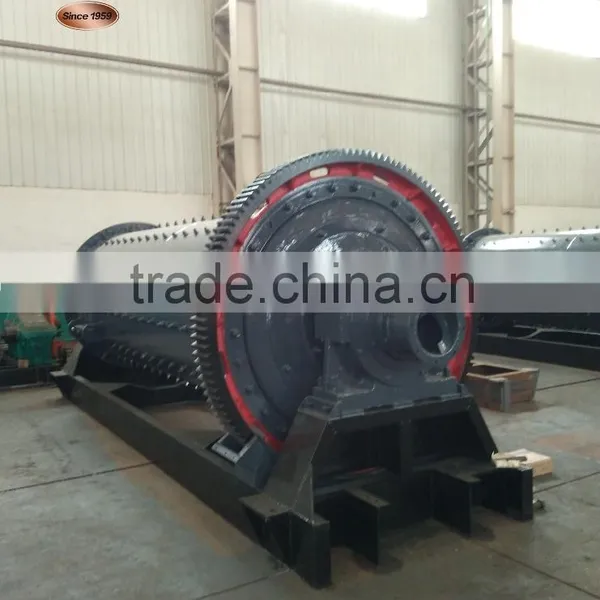

China Silica Powder Ball Mill and Classifying Machine With Higher Capacity and Long Life Span by Henan Zhongde photo-2

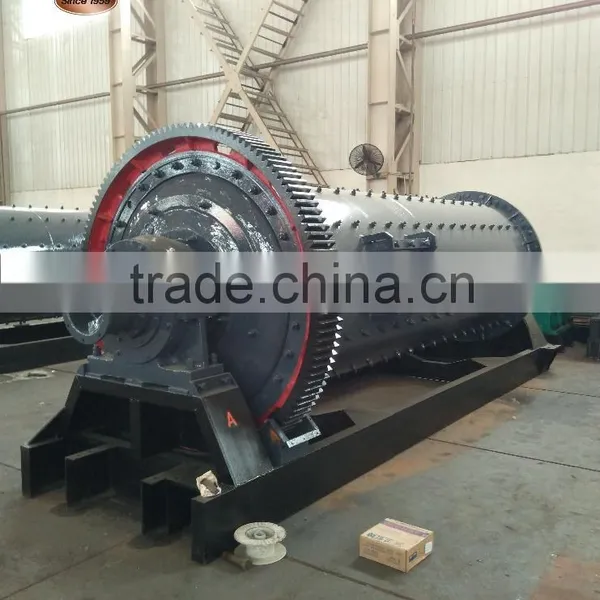

China Silica Powder Ball Mill and Classifying Machine With Higher Capacity and Long Life Span by Henan Zhongde photo-3

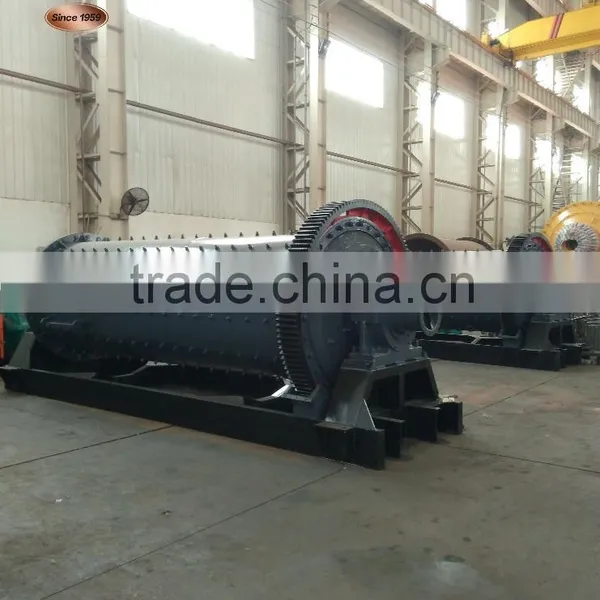

China Silica Powder Ball Mill and Classifying Machine With Higher Capacity and Long Life Span by Henan Zhongde photo-4

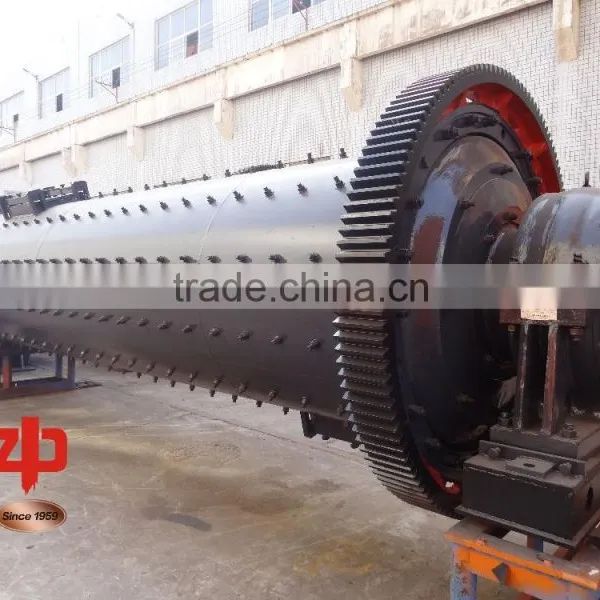

China Silica Powder Ball Mill and Classifying Machine With Higher Capacity and Long Life Span by Henan Zhongde photo-5

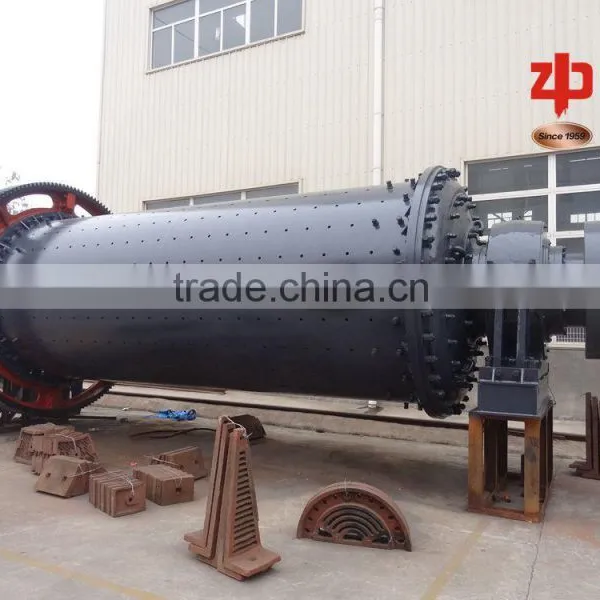

China Silica Powder Ball Mill and Classifying Machine With Higher Capacity and Long Life Span by Henan Zhongde photo-6
US$ 999 - 9,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Ball Mill
Motor Type:
AC Motor
Contact Supplier Request Quote Chat Now
Luoyang Zhongde Heavy Industries Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Ball Mill
Motor Type AC Motor
Power(W) 90kw
Capacity(t/h) 7~3.1t/h
Place of Origin Henan, China
Brand Name Zhongde
Model Number MQS-1530
Dimension(L*W*H) M) Dimension
Weight 19.5t
Certification ISO9001:2008 CE BV
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

 Product Description

Brief introduction of ball mill:

Ball mill can achieve selective crushing, commonly used in the industries, which require final product to be uniform size, little over-crushed particle size, such as metal rock, quartz sand, albite, potash feldspar, manual construct sand making, water-coal-slurry making industry.

The differences between rod mill and ball mill:

The main difference is: the grinding medium of rod mill is a long round rod, while the grinding medium of ball mill is ball. They are also different in the grinding form of grinding medium. The crushing process of rod mill is realized by line contact between rods. Thus the crushing is selective, and then small ones. So, compared to ball mill, the fineness of final products processed by rod mill is even.

China silica powder ball mill and classifying machine with higher capacity and long life span by henan zhongde

Model

Cylinder

Effective

volume

(m3)

Max.ball

loading(t)

Speed

(r/min)

Capacity

  (t/h)

Discharging

size(mm)

Main motor

   ( KW )

Total weight

   (t)

Diameter(mm)

Length(mm)

MQY-1845

1830

4500

10.5

19

26.8

15.5~6

0.3~0.074

180

35.5

MQY-2130

2100

3000

9.2

16

23.8

18~5.8

0.3~0.074

210

43

MQY-2136

2100

3600

11

20

23.8

22~6.8

0.3~0.074

210

47

MQY-2145

2100

4500

13.8

25

23.8

25~8

0.3~0.074

280

54

MQY-2230

2200

3000

10

18.5

21.3

23~6.9

0.3~0.074

210

48

MQY-2245

2200

4500

15.2

28

21.3

26.8~8.5

0.3~0.074

280

52

MQY-2430

2400

3000

12

22

21.3

26~7

0.3~0.074

245

51

MQY-2436

2400

3600

14

26

21.3

33.5~8.8

0.3~0.074

280

58

MQY-2445

2400

4500

17.8

30

21.6

42~11

0.3~0.074

320

69

MQY-2460

2400

6000

24

44

21.7

56~14.5

0.3~0.074

480

78

MQY-2736

2700

3600

18

33

20.7

54~11.7

0.3~0.074

400

86

MQY-2740

2700

4000

20.6

38

20.7

60~13

0.3~0.074

400

92

MQY-2745

2700

4500

23.2

43

20.7

67.5~14.5

0.3~0.074

480

98

MQY-2750

2700

5000

25.8

48

20.6

75~16

0.3~0.074

500

106

MQY-2760

2700

6000

31

57

20.6

90~19.5

0.3~0.074

630

116

MQY-3040

3000

4000

25.7

47

19

78~16.5

0.3~0.074

500

108

MQY-3064

3000

6400

40.2

74

19

125~26

0.3~0.074

800

138

MQY-3245

3200

4500

32

59

18.2

95~21.6

0.3~0.074

630

126

MQY-3254

3200

5400

38

73

18.2

114~25.9

0.3~0.074

800

138

MQY-3270

3200

7000

50.6

93

18.2

148~30.2

0.3~0.074

1250

150

MQY-3645

3600

4500

40

75

18

136~24.3

0.3~0.074

1000

144

MQY-3650

3600

5000

46

86

18

151~28.1

0.3~0.074

1250

152

MQY-3660

3600

6000

54

102

18

181~32.4

0.3~0.074

1250

163

MQY-3685

3600

8500

79

131

18

256~45.8

0.3~0.074

1800

252

MQY-4060

4000

6000

70

126

16.9

226~40.5

0.3~0.074

1500

203

MQY-4067

4000

6700

78

136

16.9

252~45

0.3~0.074

1600

206

MQY-4361

4270

6100

80

144

15.7

258~46

0.3~0.074

1850

215

MQY-4564

4500

6400

95

172

15.6

306~54

0.3~0.074

2000

280

MQY-5064

5030

6400

120

216

14.4

386~68

0.3~0.074

2600

320

MQY-5083

5030

8300

152

266

14.4

500~88

0.3~0.074

3300

403

MQY-5585

5500

8500

187

338

13.8

615~108

0.3~0.074

4500

525

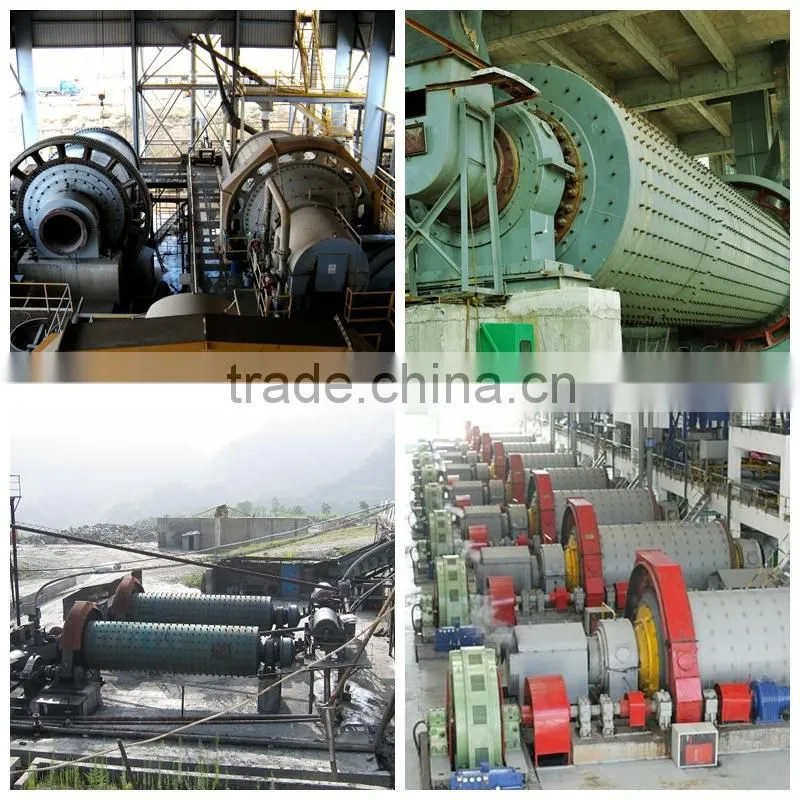

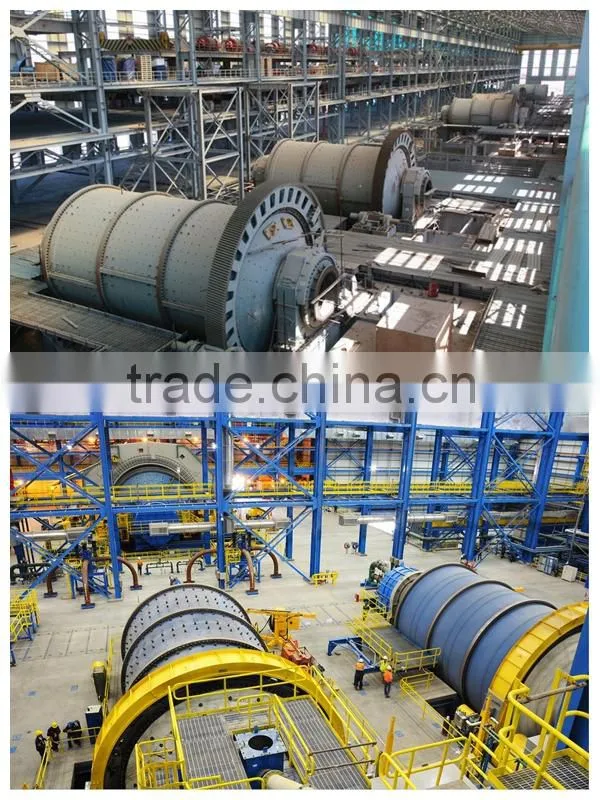

China silica powder ball mill and classifying machine with higher capacity and long life span by henan zhongdeChina silica powder ball mill and classifying machine with higher capacity and long life span by henan zhongde

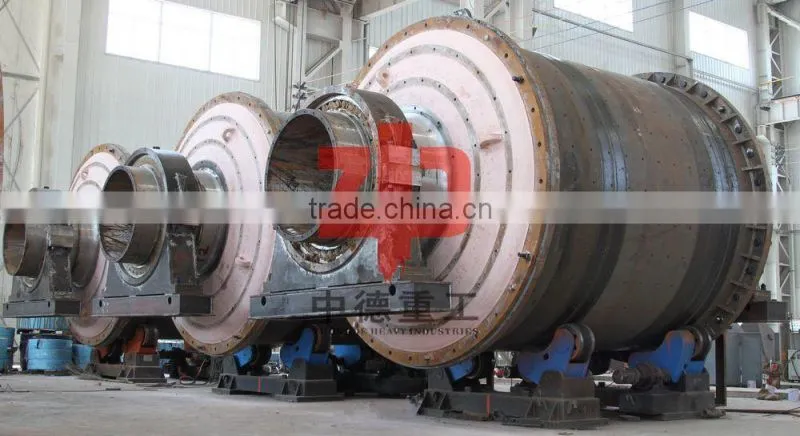

 ball mill manufacturing process:

China silica powder ball mill and classifying machine with higher capacity and long life span by henan zhongde



China silica powder ball mill and classifying machine with higher capacity and long life span by henan zhongde

China silica powder ball mill and classifying machine with higher capacity and long life span by henan zhongdeChina silica powder ball mill and classifying machine with higher capacity and long life span by henan zhongde



Our Services

 Our Services of ball mill:

  • Installation and adjustment of ball mill: The installation of our ball mill is needed. Technicist of ball mill will provided by supplier for buyer to assist the work such as weding connection of shell body, equipment installation, adjustment, training, etc.
  • Quality Guarantee of ball mill: Three-guarantees of ball mill and warrantly period is one year.
  • Technical support of ball mill is provided from the beginning to the end.
  • Spare parts of ball mill are serviced for sale in the whole year.

 Company Information

 Luoyang Zhongde Heavy Industries Co., Ltd, whose predecessor was Luoyang Mining Machinery Cement Equipment Factory, was founded in 1959. Over the past 50 years, Zhongde has made significant contribution to the economic development in China. In 1995, it took the lead in changing into the joint stock company, which had brought a rapid development to the company. In 2006, the old factory relocated into the large modern industrial workshop in Luoxin Industrial Park, Luoyang city, the middle of China.



We are a professional manufacturer of mining equipments, such as crusher, mining mill, tube mill, rotary kiln, cooler, rotary dryer, magnetic separator, flotation machine, thickener, etc. Our machines are widely used in the fields of mine, smelting, chemicals, building materials, coal, refractory materials, ceramics, etc. Moreover, technological designs on program, process flow, standard& non-standard parts are also provided from the beginning to the end for clients.



In 2010, we have accessed the ISO9001:2008 certification, and in 2012 we have acquired the BVQI certificate. To establish the business with credit and honesty is our management belief all the time.

Company Information

 Packaging & Shipping

FAQ

How about the quality of your ball mill?

  • Our ball mill manufactured strictly accordin to national and international standard.
  • We take a test on every ball mill before delivery.

How about price of ball mill?

  • We can give the lowest price of the ball mill than market one.
  • We do quotation of ball mill as soon as possible for any custome.
  • Discount of ball mill can be given according to quantity.

 How about the after-sale service of your company?

  • Our engineer is aviliable to installation ball mill overseas.
  • The guarantee period of our ball mill is one year.

should any of these items be of interest to you,contact us please!
