Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Mill > Ceramic Ball Mill, Ball Mill Price,small Ball Mill for Sale
Ceramic Ball Mill, Ball Mill Price,small Ball Mill for Sale
US$ 16,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Ball Mill
Motor Type:
AC Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Ball Mill Widely Used in Mining Field Ball Rolling MillUS$ 20,000 - 27,000MOQ: 1 Set -
CE Ball Mill Price / Cement Ball Mill / Small Ball Mill From ChinaUS$ 20,000 - 27,000MOQ: 1 Set
-
High Demand Good Function After-sales Service Provided Grinding Ball Mill for SaleUS$ 20,000 - 120,000MOQ: 1 Set
-
New Types Power Mill Used Ball Mill SaleUS$ 20,000 - 120,000MOQ: 1 Set
-
Good Function Ball Mill Grinding Media PriceUS$ 20,000 - 120,000MOQ: 1 Set
Condition
New
Type
Ball Mill
Motor Type
AC Motor
Power(W)
630000
Capacity(t/h)
90-19.5t/h
Place of Origin
Henan, China
Brand Name
ZHONGDE
Model Number
MQY-2760 ball mill
Dimension(L*W*H)
refer to specification
Weight
116t
Certification
CE/ISO
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
Ball mill application:
- Ball mill is used in manufacture industries;
- Ball mill is used in refractory material, fertilizer, ferrous metal;
- Ball mill is used in cement, silicate, new building material;
- Ball mill is used in nonferrous metal and glass ceramics;
- Ball mill is used in dry and wet grinding for all kinds of ores and other grind-able materials.
Ball mill advantages:
- Ball mill has large application range, simple structure and convenient maintenance;
- Ball mill has large capacity and continuous operation;
- Ball mill has barrel lining and grinding media can apply various abrasive materials;
- Ball mill'Iistallation and adjustment are very convenient and easy to be operate.
Classification of ball mill:
- As per the grinding media: ball, rod mill and AG mill(without grinding, media);
- As per material discharging mode:wet grid mill, dry grid mill&overflow mill;
- As per driving mode:side¢ral. The former is more popular now;
- As per driving configuration:
- Asynchronous motor driving motor driving: asynchronous motor+reducer+pinion+girthgear;
- Synchronous motor driving: synchronous motor+air cluth+pinion+girthgear;
- Asynchronous motor +reducer+diaphgram coupling.
Features of ball mill:
The ball mill, with compact structure, is easy to install & maintain, steady in running, and widely used for grind limestone, phosphate ore and other grindable materials of different hardness. The performance is advanced in domestic market. Wear parts are easy to change.
Overflow Ball mill teremeter:
| Model | Rotation speed of shell(r/min) | Ball load(t) | Feeding size(mm) | Discharging size(mm) | Capacity(t/h) | Motor power(KW) |
| Φ900×3000 | 36 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 6.8 |
| Φ1200×2400 | 36 | 3 | ≤25 | 0.075-0.6 | 1.5-4.8 | 12 |
| Φ1200×3000 | 36 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 13.2 |
| Φ1500×4500 | 27 | 11 | ≤25 | 0.074-0.4 | 3-6 | 21 |
| Φ1500×5700 | 28 | 12 | ≤25 | 0.074-0.4 | 3.5-6 | 24.7 |
| Φ1830×3000 | 25.4 | 11 | ≤25 | 0.074-0.4 | 4-10 | 34.5 |
| Φ1830×6400 | 24.1 | 21 | ≤25 | 0.074-0.4 | 6.5-15 | 46 |
| Φ1830×7000 | 24.1 | 23 | ≤25 | 0.074-0.4 | 7.5-17 | 49 |
| Φ2100×4500 | 23.7 | 24 | ≤25 | 0.074-0.4 | 8-43 | 59 |
| Φ2100×7000 | 23.7 | 26 | ≤25 | 0.074-0.4 | 8-48 | 67.5 |
| Φ2200×4500 | 21.5 | 27 | ≤25 | 0.074-0.4 | 9-45 | 58 |
| Φ2200×6500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 14-26 | 63 |
| Φ2200×7500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-30 | 66.5 |
| Φ2400×3000 | 21 | 23 | ≤25 | 0.074-0.4 | 7-50 | 65 |
| Φ2400×4500 | 21 | 30 | ≤25 | 0.074-0.4 | 8.5-60 | 70 |
| Φ2700×4000 | 20.7 | 40 | ≤25 | 0.074-0.4 | 12-80 | 92 |
| Φ3200×4500 | 18 | 65 | ≤25 | 0.074-0.4 | Determined by the technological process | 137 |
| Φ3600×4500 | 17 | 90 | ≤25 | 0.074-0.4 | Determined by the technological process | 158 |
| Φ3600×6000 | 17 | 110 | ≤25 | 0.074-0.4 | Determined by the technological process | 175 |

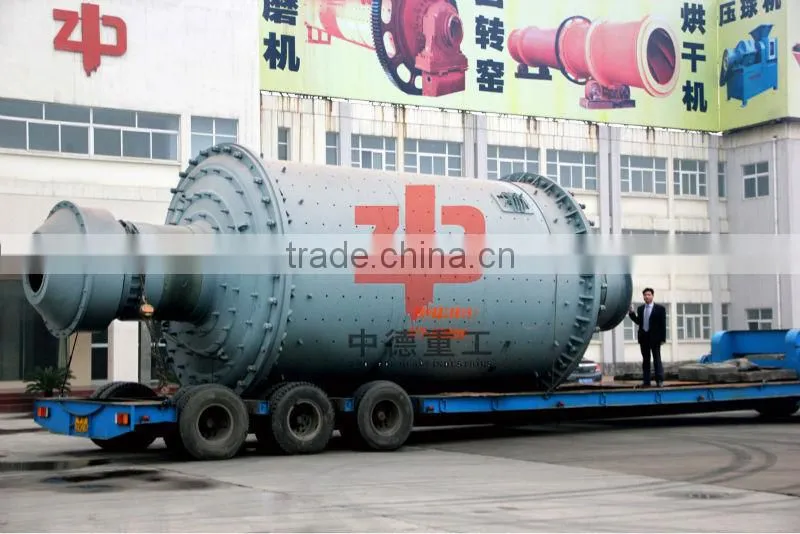

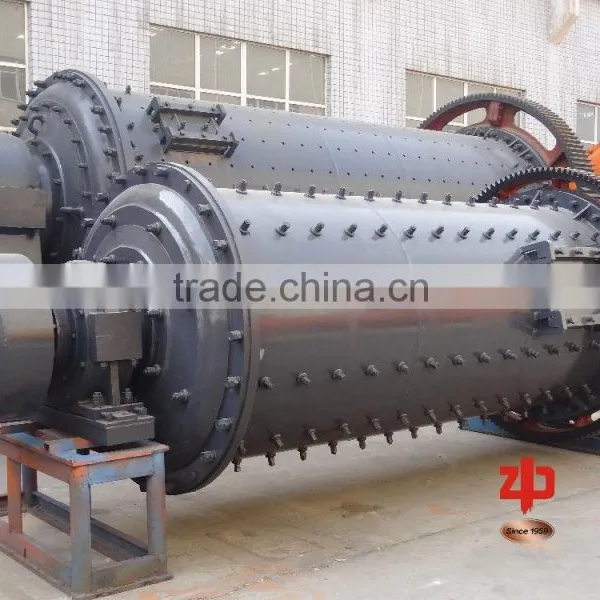

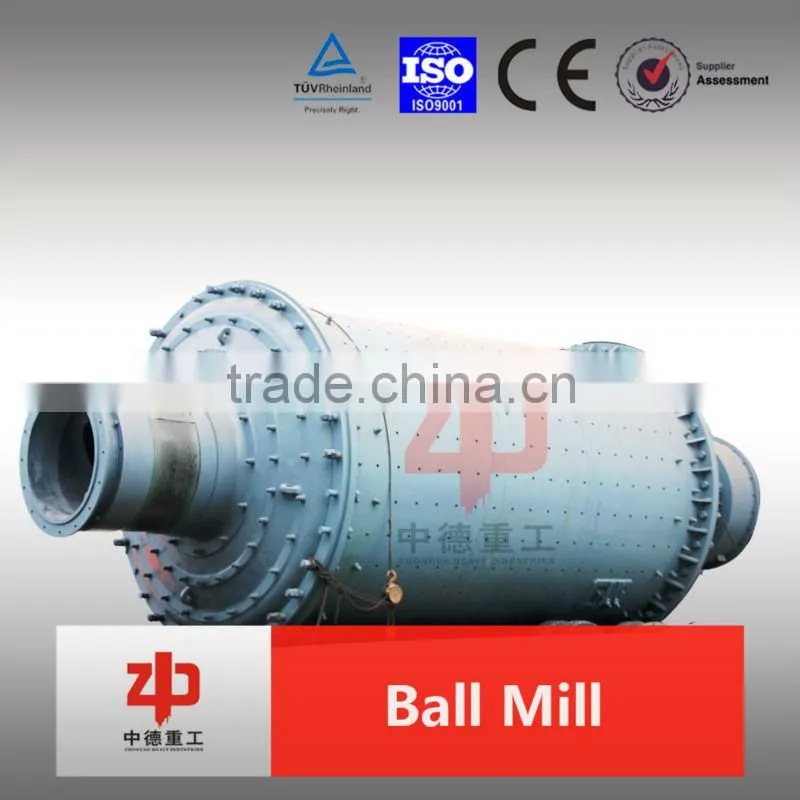

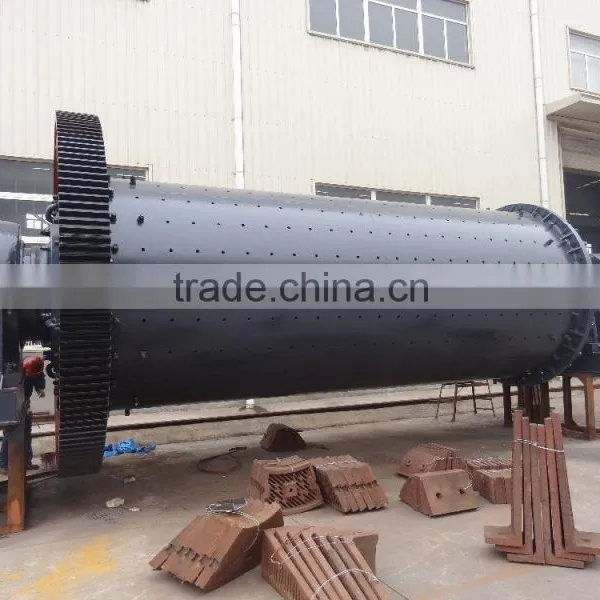

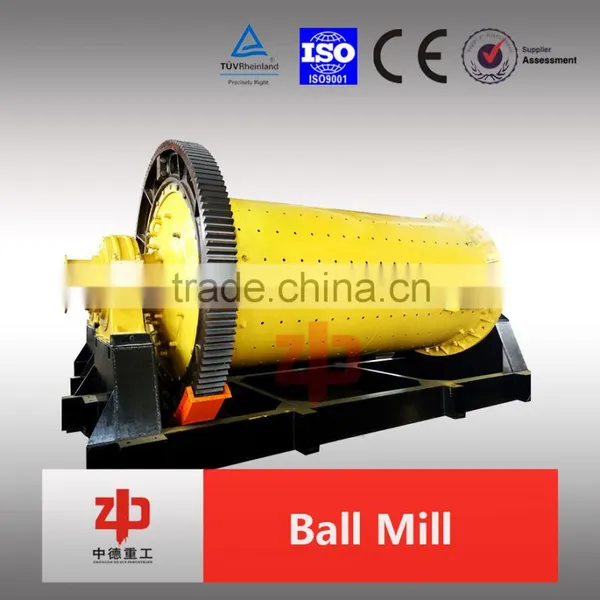

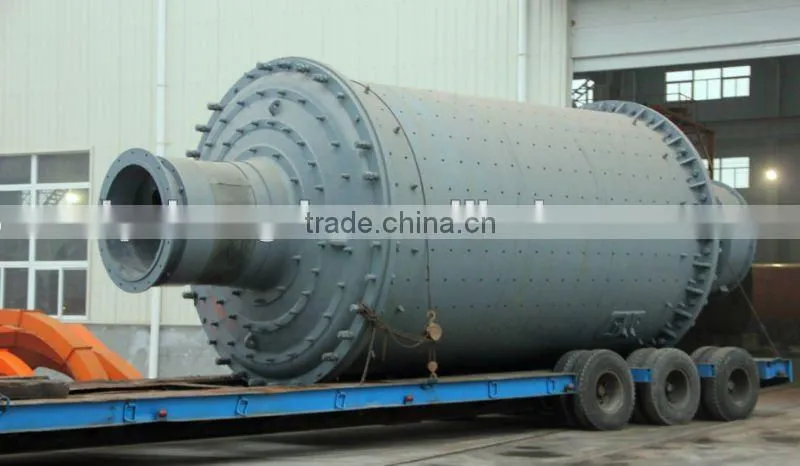

Ball mill picture show:

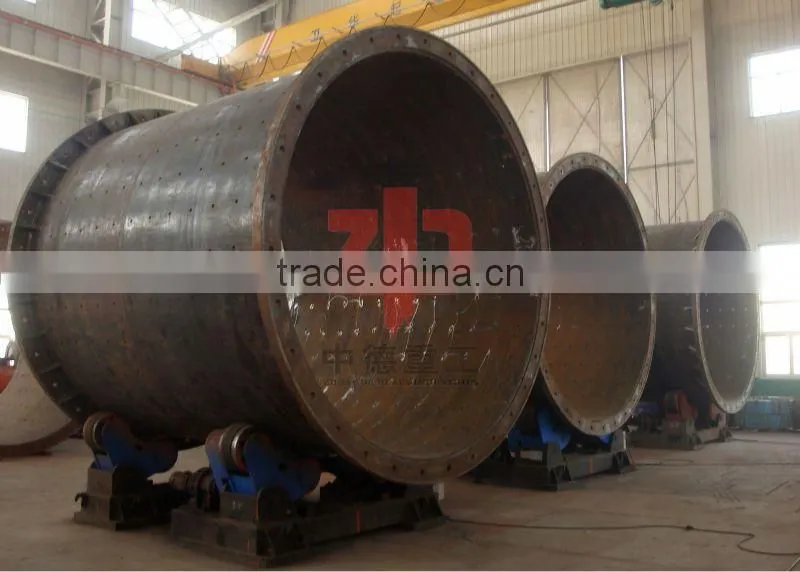

ball mill manufacturing process:
Our Services
Our service of ball mill:
- Installation and adjustment of ball mill: The Installation and adjustment of our ball mill is provided by our company. Technicist of ball mill will provided by supplier for buyer to assist the work such as weding connecion of shell body ,equipment installation, adjustment, training etc.
- Quality of guarantee of ball mill: Three-guarantees of ball mill and warrantly period id one year.
- Technical support of ball mill is provided from the beginning to the end.
- Spare parts of ball mill are serviced for sale in the whole year.
Company Information
- Luoyang Zhongde Heavy Industries Co., Ltd, whose predecessor was Luoyang Mining Machinery Cement Equipment Factory, was founded in 1959.
- Over the past fifty years, it has made significant contribution to the economic development in China.
- In 1995, it took the lead in changing into the joint stock company, which brought rapid development to the company .
- In 2006, the old factory relocated into the large modern industrial workshop in Luoxin Industrial Park.
FAQ
How about the quality of your ball mill?
- Our ball mill is manufactured strictly according to national and international standard.
- We take a test on every ball mill before delivery.
How about price of your ball mill?
- We can give the lowest price of ball mill than market one.
- We do quotation of ball mill as soon as possible for any custome.
- Discount of ball mill can be given according to quantity.
How about the after-sale service of your company?
- Our engineer is aviliable to installation ball mill overseas.
- The guarantee period of our ball mill is one year.
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2003
Factory Size
50,000-100,000 square meters
Total Employees
101 - 200 People
