Specifications
1.large conveying volume2.high lifting height
3.stable driving, easy operation and maintenance
4.ISO9001:2008; TUV; CE
TH Bucket Elevator is characterized by large conveying volume, high lifting height, stable driving, easy operation and maintenance and long service life, etc. It's suitable to convey powder, grain and small lump material. The material density is less than 1.5t/m³. The temperature of scattered material is not above 250 centigrade.
Model |
TH160 |
TH200 |
TH250 |
TH315 |
TH400 |
TH500 |
TH630 |
|||||||||
Bucket mode |
ZH |
SH |
ZH |
SH |
ZH |
SH |
ZH |
SH |
ZH |
SH |
ZH |
SH |
ZH |
SH |
||
Conveying capacity(100%)m³/h |
155.77 |
24.97 |
17.87 |
28.6 |
31.43 |
48.19 |
35 |
59 |
58 |
94 |
73 |
118 |
114 |
185 |
||
Bucket |
Bucket capacity(for water)Liter |
1.2 |
1.9 |
1.5 |
2.4 |
3.0 |
4.6 |
3.75 |
6.0 |
5.9 |
9.5 |
9.3 |
15.0 |
14.6 |
23.6 |
|
Bucket pitch(mm) |
500 |
512 |
688 |
|||||||||||||
Chain |
Round steel diameter*pitch(mm) |
14*50 |
18*64 |
22*86 |
||||||||||||
Tensile load per unit(kn) |
≥190 |
≥320 |
≥480 |
|||||||||||||
Speed of transmission sprocket(r.p.m) |
69.71 |
63.22 |
44.11 |
42.5 |
37.6 |
35.8 |
31.8 |
|||||||||
Max. conveying size(mm) |
20 |
25 |
30 |
35 |
40 |
50 |
66 |
|||||||||
Pictures for reference:
Our service of TH Bucket Elevator:
- Installation and adjustment of TH Bucket elevator: The Installation and adjustment of our TH Bucket is provided by our company. Technicist of TH Bucket elevator will provided by supplier for buyer to assist the work such as weding connection of shell body ,equipment installation, adjustment, training etc.
- Quality of guarantee of TH Bucket elevator : Three-guarantees of TH Bucket elevator and warranty period is one year.
- Technical support of TH Bucket elevator is provided from the beginning to the end.
Luoyang Zhongde Heavy Industries Co., Ltd, whose predecessor was Luoyang Mining Machinery Cement Equipment Factory, was founded in 1959. Over the past 50 years, Zhongde has made significant contribution to the economic development in China. In 1995, it took the lead in changing into the joint stock company, which had brought a rapid development to the company. In 2006, the old factory relocated into the large modern industrial workshop in Luoxin Industrial Park, Luoyang city, the middle of China.
We are a professional manufacturer of mining equipments, such as crusher, mining mill, tube mill, rotary kiln, cooler, rotary dryer, magnetic separator, flotation machine, thickener, etc. Our machines are widely used in the fields of mine, smelting, chemicals, building materials, coal, refractory materials, ceramics, etc. Moreover, technological designs on program, process flow, standard& non-standard parts are also provided from the beginning to the end for clients.
The total area of the three standard heavy-duty industrial workshops covers 70000 square meters. More than 500 sets advanced processing equipments, including 300 sets of high-precision digital control machine tools, large-sized processing equipment and special processing, riveting& installing machines, are introduced to guarantee for product quality and company development.
In 2010, we have accessed the ISO9001:2008 certification, and in 2012 we have acquired the BVQI certificate. To establish the business with credit and honesty is our management belief all the time.

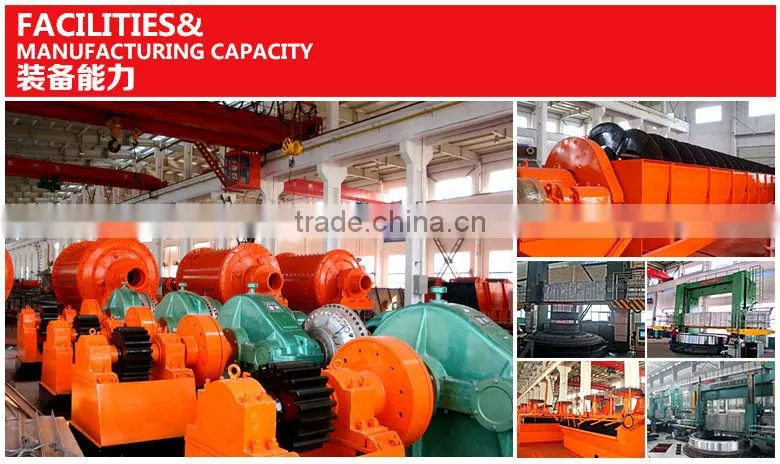

Company pictures:
Certificates:
Design and research capacity:
Consignment:
International market:
How about the quality of your TH Bucket Elevator?
- Our TH Bucket Elevator is manufactured strictly according national and international standard.
- We take a test on every TH Bucket Elevator before delivery.
How about price of your TH Bucket Elevator ?
- We can give the lowest price of TH Bucket Elevator than market one.
- We do quotation of TH Bucket Elevator as soon as possible for any customer.
- Discount of TH Bucket Elevator can be given according to quantity.
How about the after-sale service of your company?
- Our engineer is available to installation TH Bucket Elevator overseas.
- The guarantee period of our TH Bucket Elevator is one year.
Welcome to visit our company and workshop, we sincerely look forward to cooperating with you. We will provide you with the most suitable products with the reasonable price.
