Specifications

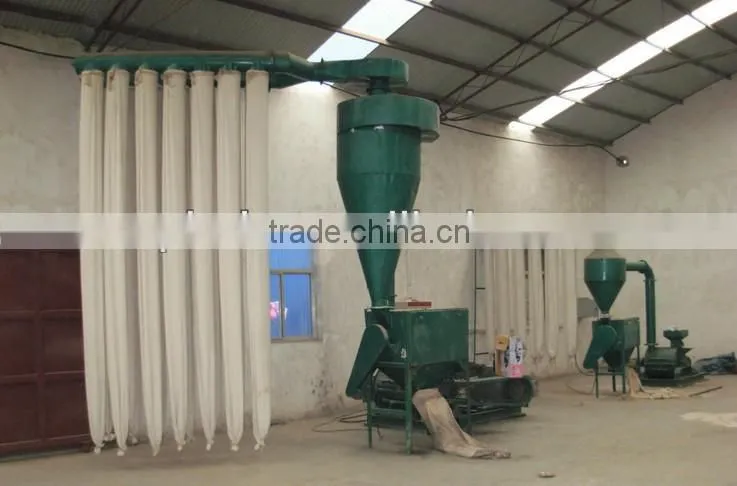

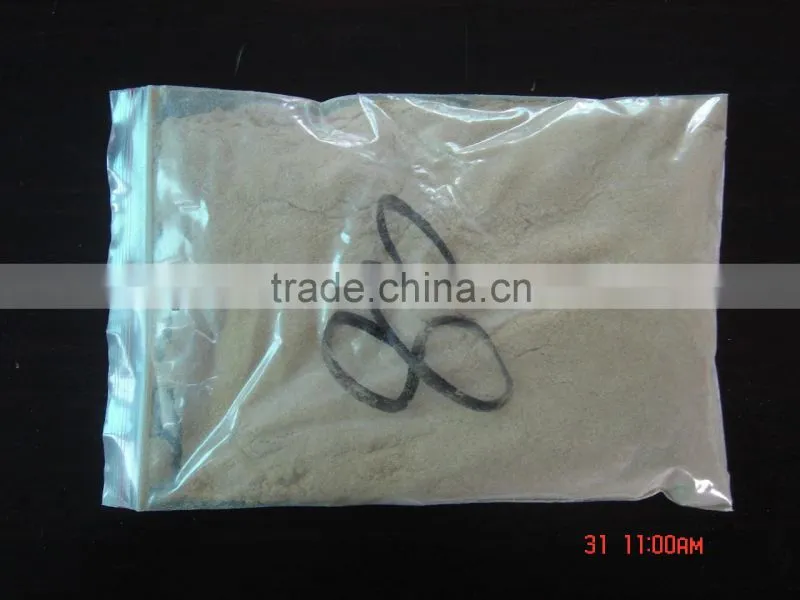

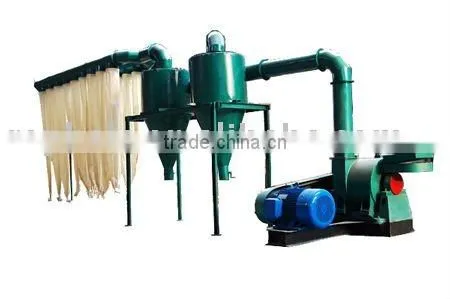

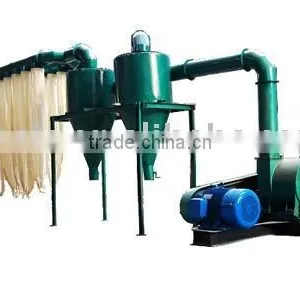

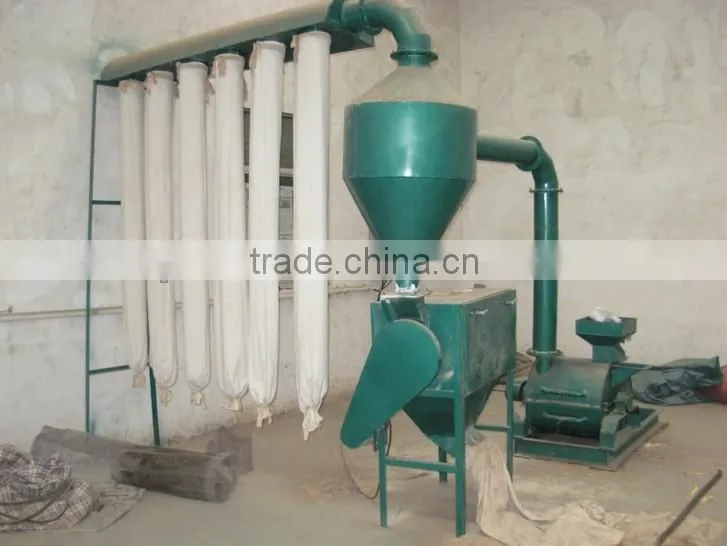

Sawdust flour grinding machine is used to grind the wood into flour,the size of the final product can be 800 meshSawdust flour grinding machine
Introduction:
The machine is our new model. The final product is with high finess. The smallest size can be crushed into 120mu. And we also could change the screen according to client’s request.The machine can work constitutionally, which make the machine with a big capacity.
The machine consists of First separator, Second separator,Micro powder collector, and superfine powder collector. The finess can be adjusted from 400-1500mu.
The hard grade is below Grade 6.5, the moistures is better between 3-10%.
main parameter:
model |
50 |
60—65 |
70 |
80 |
|
Main-shaft rotation |
4000r/min |
3800r/min |
3200r/min |
2900r/min |
|
power |
18.5-30Kw |
22-30kw |
37-45Kw |
45Kw |
|
Capacity/8hrs |
2—8T |
3—12T |
7—20T |
8—22T |
|
finess |
20—525mu |
||||
Wind volume |
454m3/min |
454m3/min |
720m3/min |
780m3/min |
|
Wind speed |
434m/s |
390m/s |
396m/s |
450m/s |
|
weight |
1.6T |
1.8T |
3.4T |
3.8T |
|
Floor area |
12m2 |
18.5m2 |
20m2 |
22m2 |
|
pictures:
