Large Diameter Pipe Bending Machine Cost
Specifications:
*Large Diameter Pipe Bending Machine Cost
*Established in 2001, has more than 15 years experience in machinery and equipment manufacturing
*OEM service offered
*CE, ISO Certificate
*Competitive price
*Located in Zhangjiagang city at the center of Shanghai, Suzhou, Wuxi, Nanjing etc., transportation is very convenient

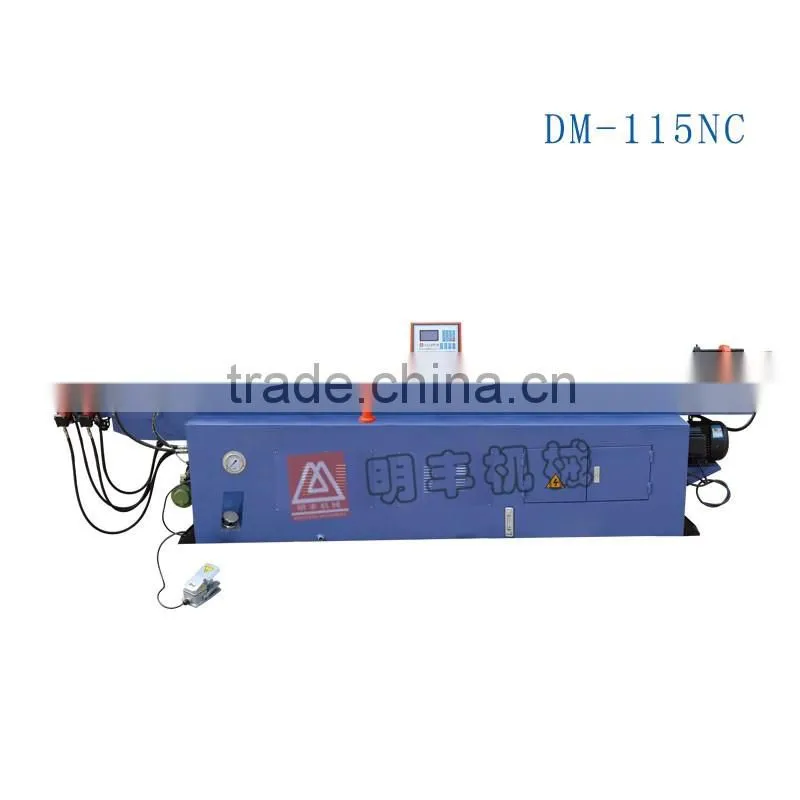

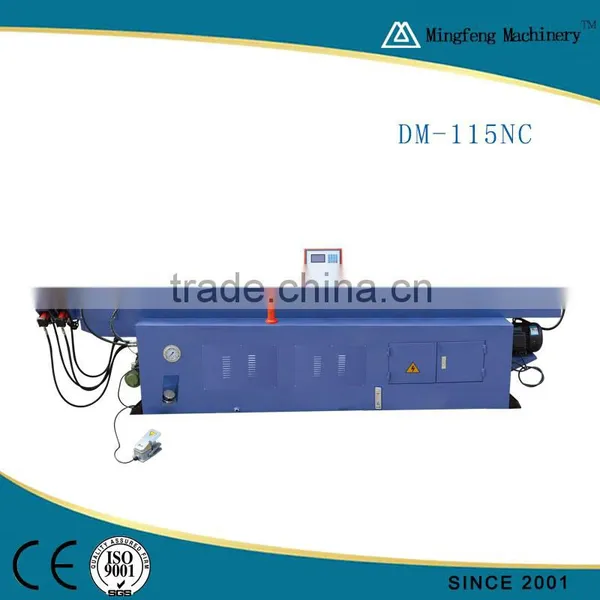

Manufacturer Customizable 115NC Large Diameter Pipe Bending Machine Cost
*Mechanical Features
1. Using NC modules, operated by man-machine conversation mode
2. Manual and automatic pattern can be chosen freely and automatically convert
3. Multi-angles can be set and controlled by multi-groups of procedures
4. Error message displayed on the screen to help the operator immediately excluded
5. With automatic counting, automatic core pulling and anti-wrinkle device (Except the vertical type)
6. With stable bed structure and anti-deformed
*Main Technical Parameters
Model |
DM115NC |
Max-applicable steel pipe (mm) |
φ115 |
Max-applicable stainless steel pipe (mm) |
φ101 |
Maximum bending radius (mm) |
R650 |
Maximum bending angle |
190° |
Maximum straight-length (mm) |
4800 |
Oil pressure (Mpa) |
14 |
Motor power (KW) |
22 |
Machine size (L * W * H / mm) |
5900×1300×1400 |
Weight (kg) |
7500 |
Mode |
DM-115NC Large Diameter Pipe Bending Machine Cost |
Trademark |
Mingfeng Machinery |
Color |
Blue |
Warranty |
One year warranty and lifetime maintenance |
1)Observing &Testing
After we receipt 30% advance deposit, we will start to produce. When the machine is completed, buyers come to observe and test machine by themselves, until the machine is satisfied with the buyers, they can pay for the other 70% balance.
2)Technical documents
The seller should supply buyer the documents for installation and commissioning within 5 days after contract is available, other related documents will be supplied to buyer before shipment.
3)Installation
We provide electrical control maps and instruction book to you for installation with English instruction. If required, we can send 1 or 2 engineers to buyer’s country for installation and training.
4)After-sale service
After sale service shall be done by the seller. Seller will provide all kinds of technical support to the buyer by telephone, fax or email free of charge. After one-year guarantee period, we assure you life-long maintenance.
Large Diameter Pipe Bending Machine Cost
