Make Paper Colorful
Simple Introduction:
We forge and design our machine center around intelligentization, humanization, market requirement and high quality user experience. Start from the minor details, make product create more possibility in client’s production process.
This production line is researched ,developed and manufactured based on old wallpaper production technology and new market requirement by our factory. It’s a new high-tech and versatile production equipment.can produce PVC wallpaper ,PE wallpaper, Embossing non-woven wallpaper,Pure-paper wallpaper that you see on the market.

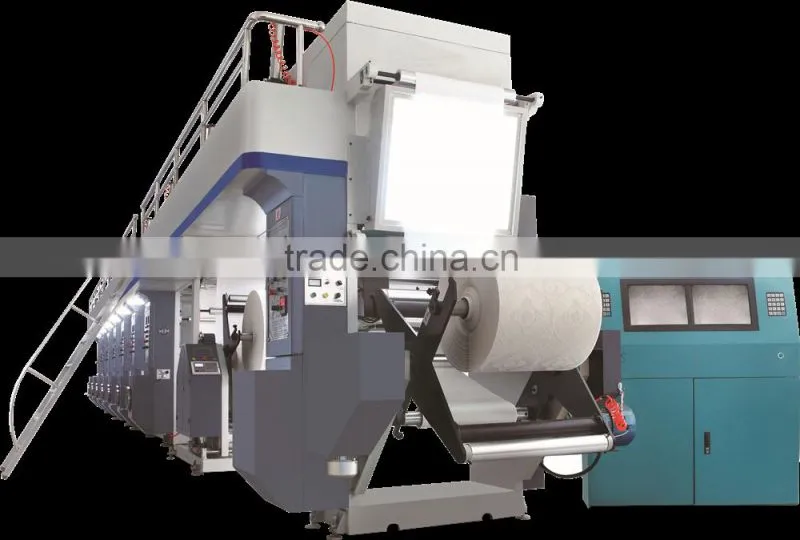

Wallpaper Printing Embossing Machine
Main Technical Parameters:
Direction |
Printing process from left to right , Embossing &winding from right to left |
Max. Material Width |
1100mm |
Max. Mechanical Speed |
80m/min |
Max. Producing Speed |
60m/min(Actual speed depend on material and,process conditions) |
Max. Unwinding Diameter |
φ1100mm |
Unwinding Paper Cores Diameter |
φ76 |
Printing Register Accuracy |
±0.15mm |
Printing Cylinder Diameter |
φ120mm~φ300mm |
Printing Cylinder Width |
680mm~850mm |
Blade Movement |
±5mm |

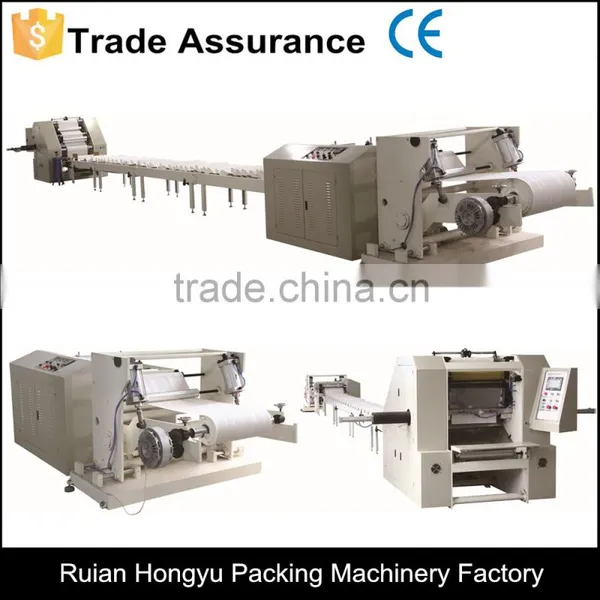

Wallpaper Slitting Cutting Machine
Main Technical Parameters:
Model |
HYW-S1100 |
Direction |
Unwinding to winding |
Max. Roller width |
1100mm |
Max. Mechanical speed |
110m/min |
Max. Producing speed |
10-85m/min(Actual speed depend on material and,process conditions) |
Max. Unwinding diameter |
φ1100mm |
Unwinding Paper cores diameter |
φ76 |
Slitting accuracy |
±0.2mm |
Feed Servo motor power: |
3kw |
Drive Motor |
1.5Kw |
Sending Motor |
1.5Kw |
Fan motor power: |
0.75kw |
Machine Size: |
L13500mm*W3200mm*H2200mm |
Weight: |
5Tons |

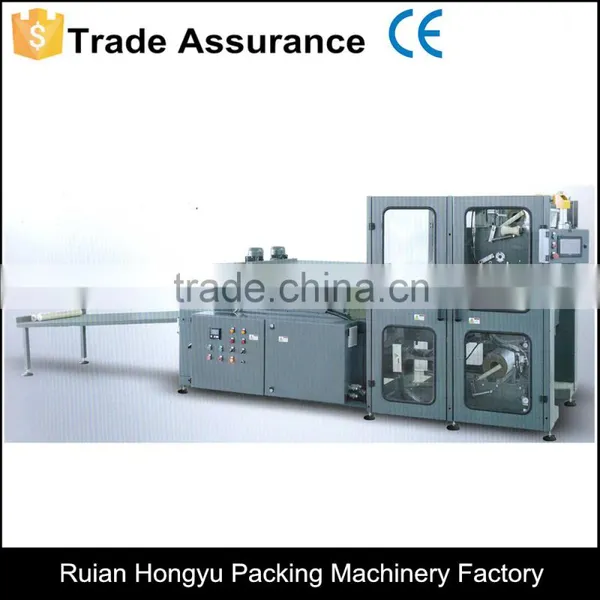

Wallpaper Packing Machine
Main Technical Parameters:
Model |
HYW-P1100 |
Max packing width |
1100mm |
Packing diameter |
50-120mm |
Packing speed |
≤8Rolls/Min |
Voltage |
380V 50HZ/60HZ |
Power |
20KW |
Air pressure |
0.6m³/min ( Offered by user) |
Machine dimension |
L5500*W2300*H1800mm |
- 24 Hours Technical Support By E-mail.
- We can offer 10 or more days free training service in your factory ,you also can send your worker to our factory to do training.
- 1 Year Warranty.
