Specifications
PVC Coated Welded Gabion Baskets1 CE,ISO9001,SGS
2 Galvanized&PVC Gabion box
3 Various sizes& high quality
4 Fast delivery
1. Introduction
PVC Coated Welded Gabion Baskets
PVC Coated Welded Gabion Baskets can be design as your request. It is the most common and most practical kind that is used in the project.
Filled with stones at the river bank or seaside, it can be used to stop flood, and prevent the rock on the mountaion from falling. Steel wire used is hot-dip galvanized or galfan(zinc 95%, aluminum 5%). If it is required, 0.5 mm PVC is then coated on the galvanized/galfan wire to provide protection when used in aggressive environment.
PVC Coated Welded Gabion Baskets can withstand acid soils, salt or fresh water or wherever the risk of errosion. In order to reinforce the structure, the edge wire has a greater diameter than the mesh wire.
PVC Coated Welded Gabion Baskets is divided into units by means of diaphragms positioned at approximately 1m centre.
We mainly export gabions to Western Europe, Mid-South America, Southeast Asia etc..
A1. Control and guide of water or flood
A2. Flood bank or guiding bank
A3. Prevention of rock breaking
A4. Water and soil protection
A5. Bridge protection
A6. Strengthening structure of soil
A7. Protection engineering of seaside area
A8. Seaport engineering
A9. Isolation walls
A10. Protection of road
Length (m) |
width (m) |
height (m) |
diaphragm |
volume |
tolerance |
2 |
1 |
0.3 |
1 |
0.6 |
Length+/-3% |
3 |
1 |
0.3 |
2 |
0.9 |
|
4 |
1 |
0.3 |
3 |
1.2 |
|
2 |
1 |
0.5 |
1 |
1 |
|
3 |
1 |
0.5 |
2 |
1.5 |
|
4 |
1 |
0.5 |
3 |
2 |
|
1 |
1 |
0.5 |
0 |
1 |
|
1.5 |
1 |
1 |
0 |
1.5 |
|
2 |
1 |
1 |
1 |
2 |
|
3 |
1 |
1 |
2 |
3 |
|
4 |
1 |
1 |
3 |
4 |
Opening(mm) |
Wire diameter (mm) |
Wire Diameter (PVC Coated)/ Inner/Outside(mm) |
Size(m) |
60x80 |
2.0-2.8 |
2.0/3.0-2.5/3.5 |
1x1x0.3 1x1x0.5 |
80x100 |
2.0-3.2 |
2.0/3.0-2.8/3.8 |
|
80x120 |
2.0-3.2 |
2.0/3.0-2.8/3.8 |
|
100x120 |
2.0-3.4 |
2.0/3.0-2.8/3.8 |
|
100x150 |
2.0-3.4 |
2.0/3.0-2.8/3.8 |
|
120x150 |
2.0-4.0 |
2.0/3.0-3.0/4.0 |
4. Characteristics
C1. Economcal. It only needs to load a stone cage that can be sealed.
C2. Construction is simple, without special skills.
C3. A strong withstand natural damage and corrosion resistance and resistance to adverse effects of climate.
C4. Withstand large-scale deformation, and does not collapse.
C5. Cage rock crevice between the mud to plant production, with the surrounding natural environment melting together.
C6. Has good permeability to prevent static fluid from the damage caused.
C7. Save transportation costs. Can be folded up and assembly on site.
5. Customers and Certificates
6. Packing and Loading
7. Offer Below Services
S1. We can offer any sizes of gabion mesh, baskets or boxes according to the requirements of customers.
S2. We will reply you as soon as possible upon receving your request of your products.
S3. We can provide you with samples free of charge.

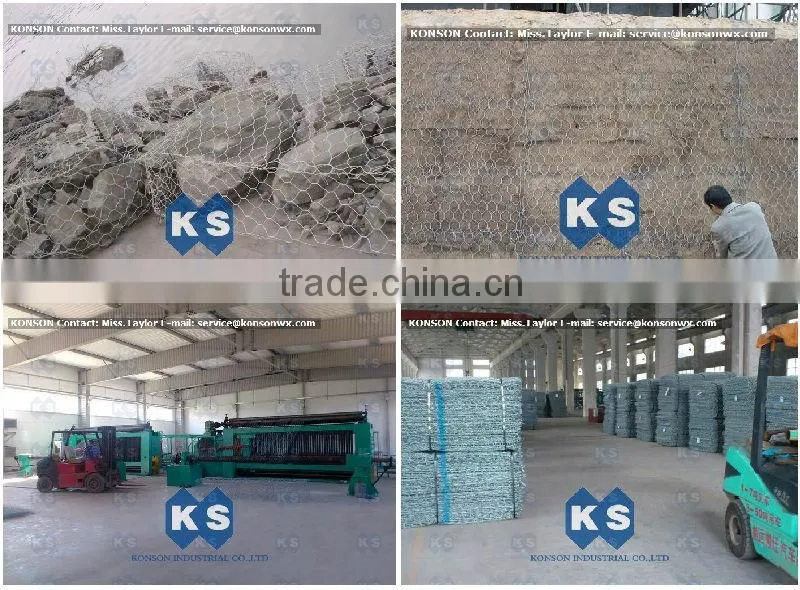

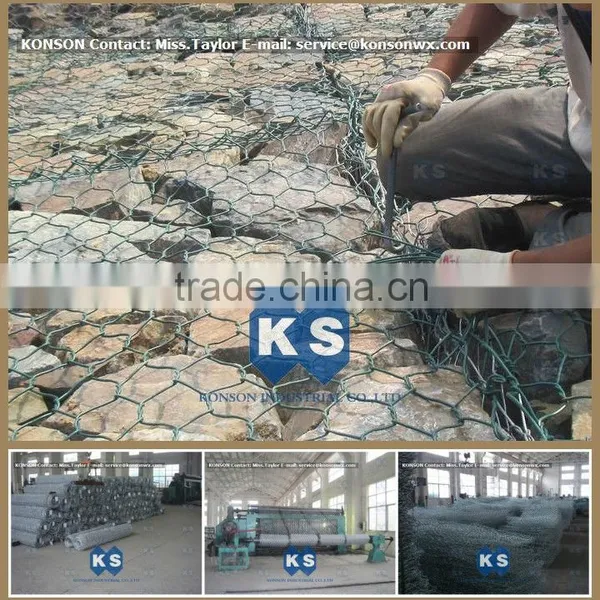

8. Projects and Workshop Photos

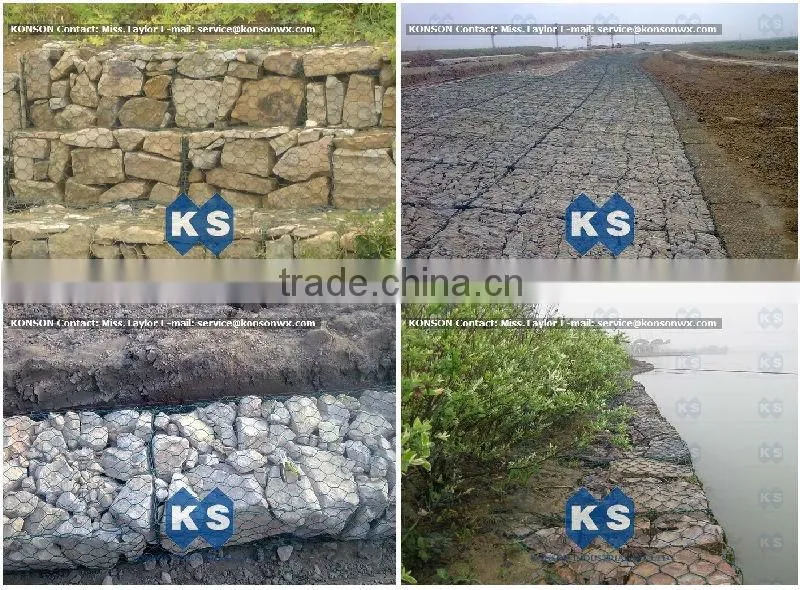

P1 Project in Chongming Island near Shanghai; P2 Project in Changsha of Hunan Province
P3 Worshop manufacturing gabion machine; P4 Workshop manufacturing gabion mesh
9. About Konson
Konson Industrial Company Limited, with more than 15 years production experience, becomes one of the leading manufacturers of the gabions, mattress and gabion production line in China. We would like to offer good service and excellent products to customers wholeheartedly!
The company, with more than 100 experienced employees, has two workshops, one is for the gabion machine making, the other is for the gabion&mattress making. It has a production facility of more than 10 complete sets of gabion production line and four million square meters hexagonal wire mesh(gabion box) each year.
