High Pricision Solar Panel Tracking Linear Actuator With Waterproof Jacket

High Pricision Solar Panel Tracking Linear Actuator With Waterproof Jacket thumbnail-1
High Pricision Solar Panel Tracking Linear Actuator With Waterproof Jacket thumbnail-2
High Pricision Solar Panel Tracking Linear Actuator With Waterproof Jacket thumbnail-3
High Pricision Solar Panel Tracking Linear Actuator With Waterproof Jacket thumbnail-4
High Pricision Solar Panel Tracking Linear Actuator With Waterproof Jacket thumbnail-5
High Pricision Solar Panel Tracking Linear Actuator With Waterproof Jacket thumbnail-6

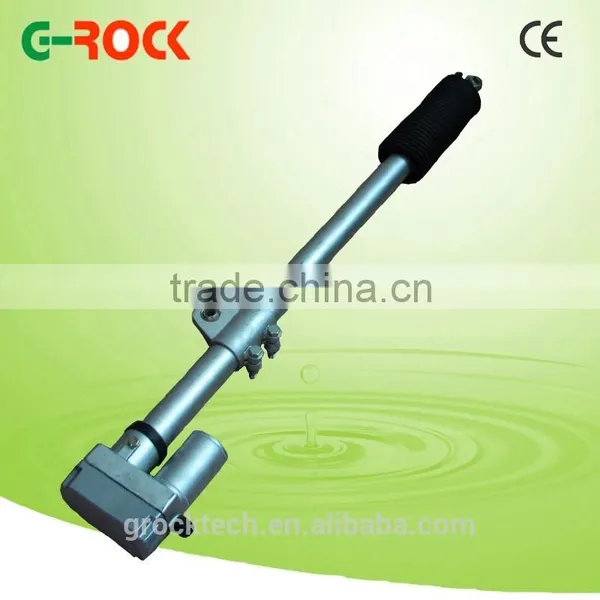

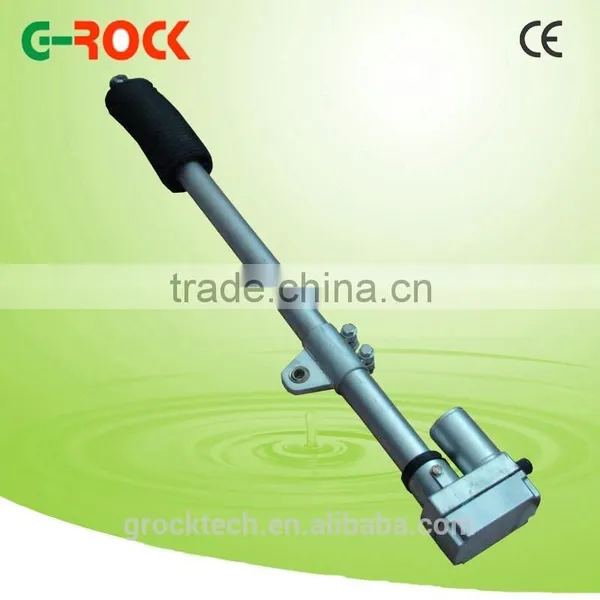

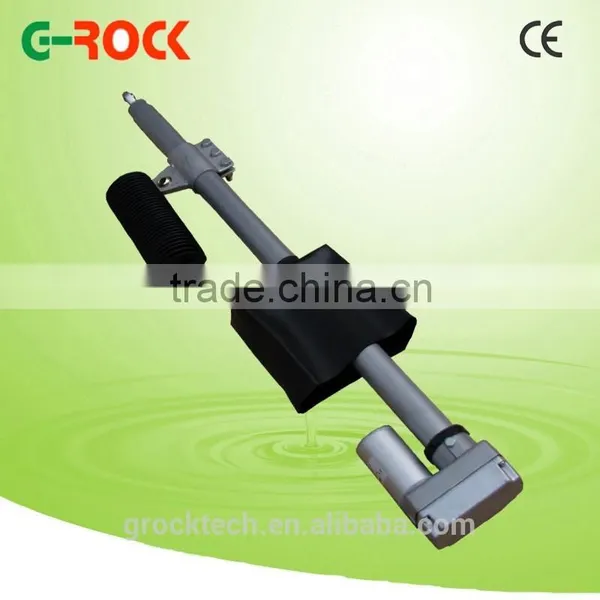

High Pricision Solar Panel Tracking Linear Actuator With Waterproof Jacket photo-1
High Pricision Solar Panel Tracking Linear Actuator With Waterproof Jacket photo-2
High Pricision Solar Panel Tracking Linear Actuator With Waterproof Jacket photo-3

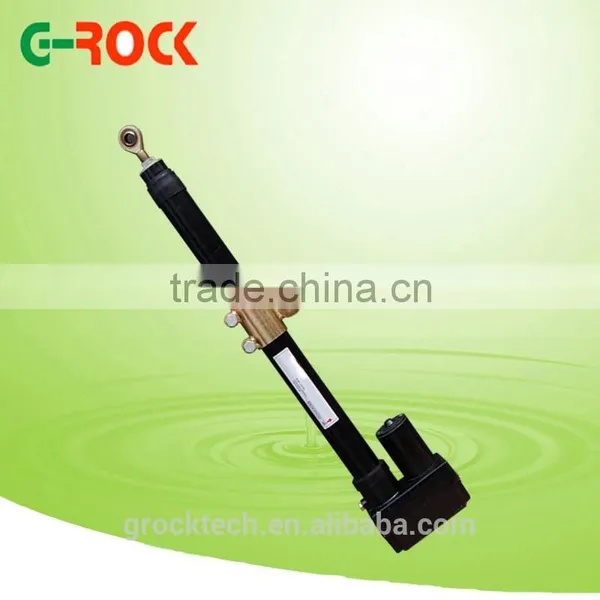

High Pricision Solar Panel Tracking Linear Actuator With Waterproof Jacket photo-4

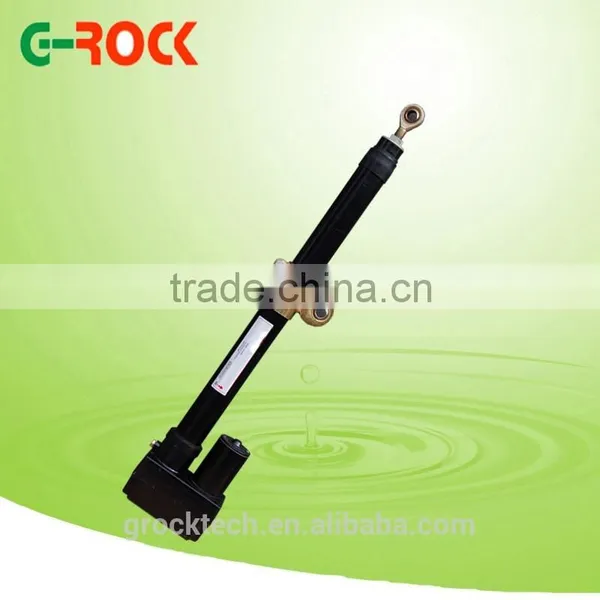

High Pricision Solar Panel Tracking Linear Actuator With Waterproof Jacket photo-5
High Pricision Solar Panel Tracking Linear Actuator With Waterproof Jacket photo-6
US$ 138.00 - 150.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
G-ROCK
Model Number:
GRA-3000
Contact Supplier Request Quote Chat Now
Dongguan G-Rock Mechanical And Electronic Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name G-ROCK
Model Number GRA-3000
Usage Other, Solar panel tracking
Certification CE
Type Gear Motor
Torque 1:10
Construction Permanent Magnet
Commutation Brush
Protect Feature Waterproof
Speed(RPM) 1800 RPM
Continuous Current(A) 5.05
Output Power 120W
Voltage(V) 24V
Efficiency IE 1

Feature of tracking linear actuator

Grock solar tracking actuator greatly improves the performance of the PV system, it drives the PV panel

follow the course of the sun, so that the panels surface is always in an optimum angel to sun rays,

as the testing data shows, can increase the amount of power by 30%-50%,

and G-rock actuator character list below;



1. Featuring DC, 12v to 48v optional.
2. Limit switch built-in. The cam-operated limit switches form part of the actuator body and is contained within

a robust metal housing.

3. Kinds of options on sensor. For machines that require accurate positioning,

it is possible to replace the third switch with a single-turn geared potentionmeter to control the position of the actuator throughout the stroke.
4. Lubricated with long-life grease, armed with tube boot and motor boot, the linear actuators offer unbeatable reliability and

virtually maintenance-free operation.
5. Anti-rust quality.
6. Self-locking function.
Especially, we utilize below element:
7. Industrial grade rod end, which guarantees smooth tracking through the years
8. Super-grip heavy duty bracket: No more slipping tube, hold up to more than 8000lbs.
9. -30℃ cold resistance.
10. Bronze nut, super-hold high static load capacity.

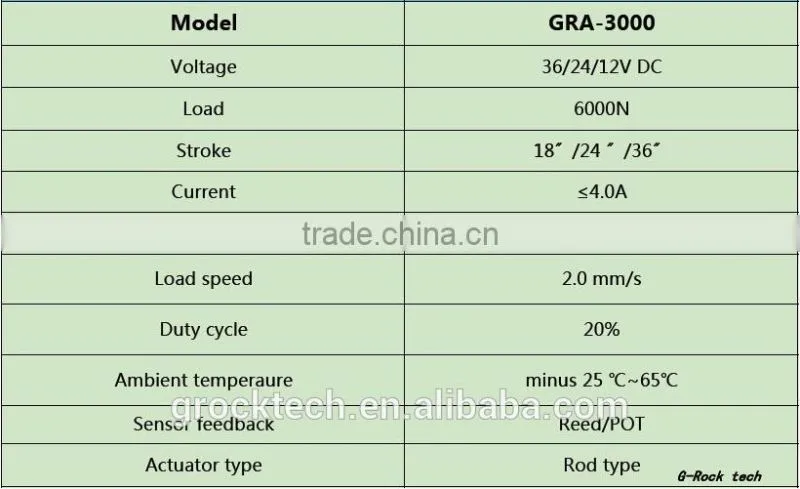

Tracking Linear actuator Parameters

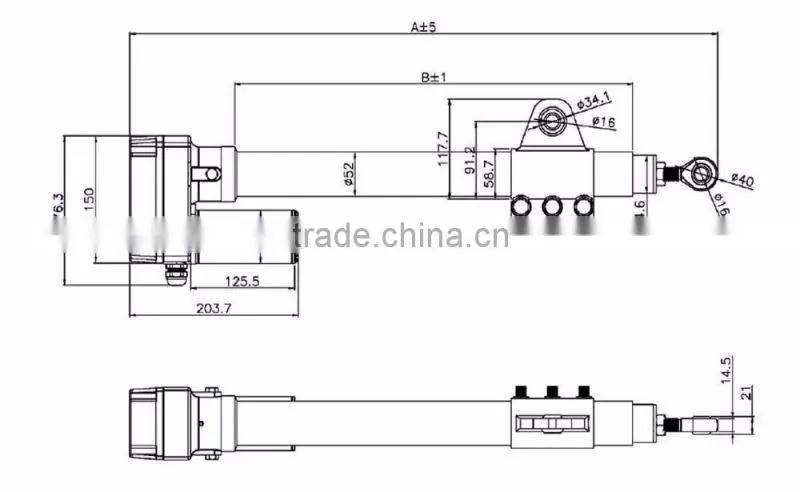

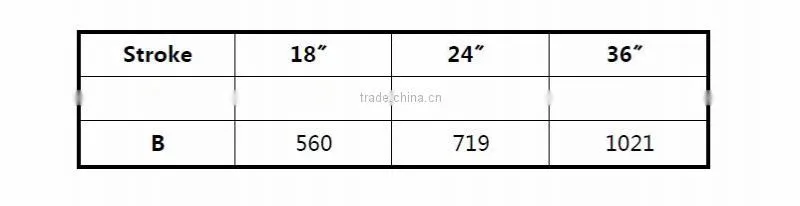

Drawing & Dimension

 High pricision solar panel tracking linear actuator with waterproof jacket

Parameters

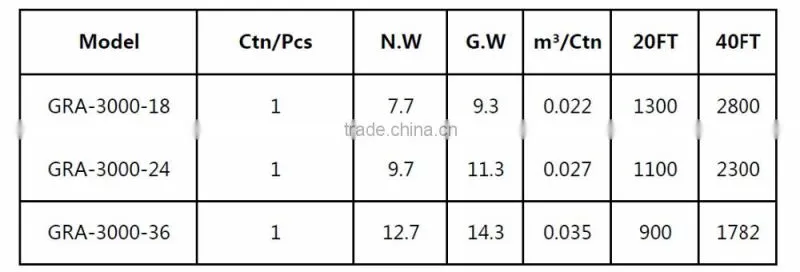

Packaging Detail









CE certification

 High pricision solar panel tracking linear actuator with waterproof jacket

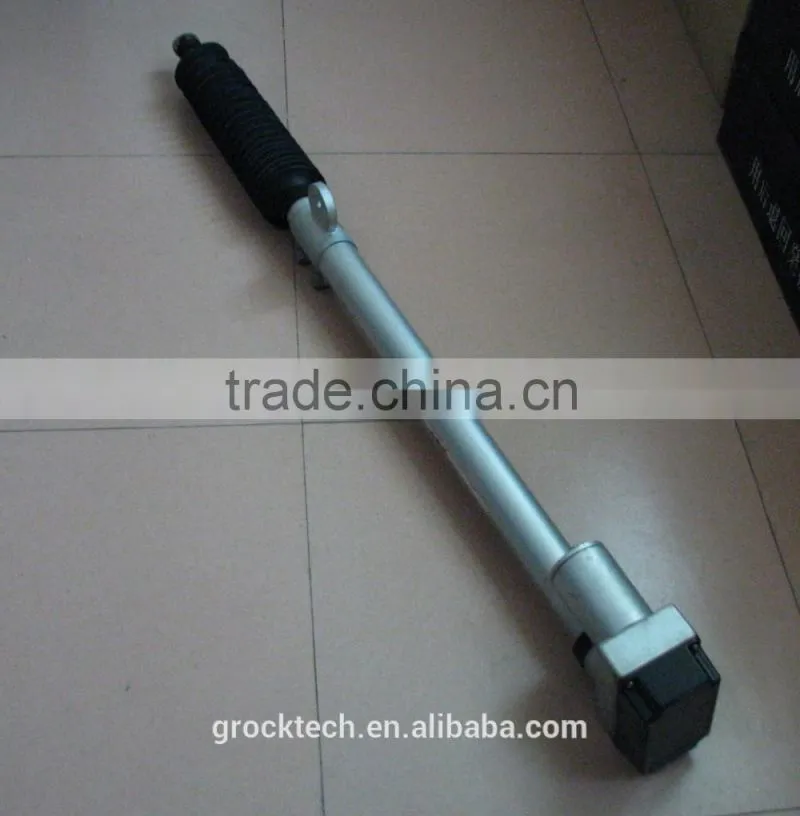

Photos View

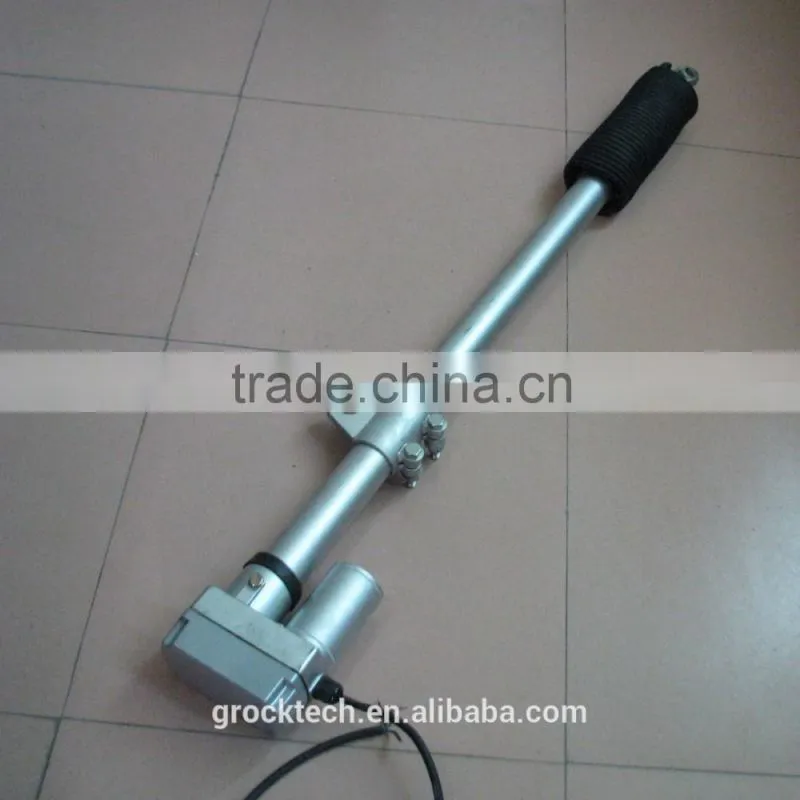

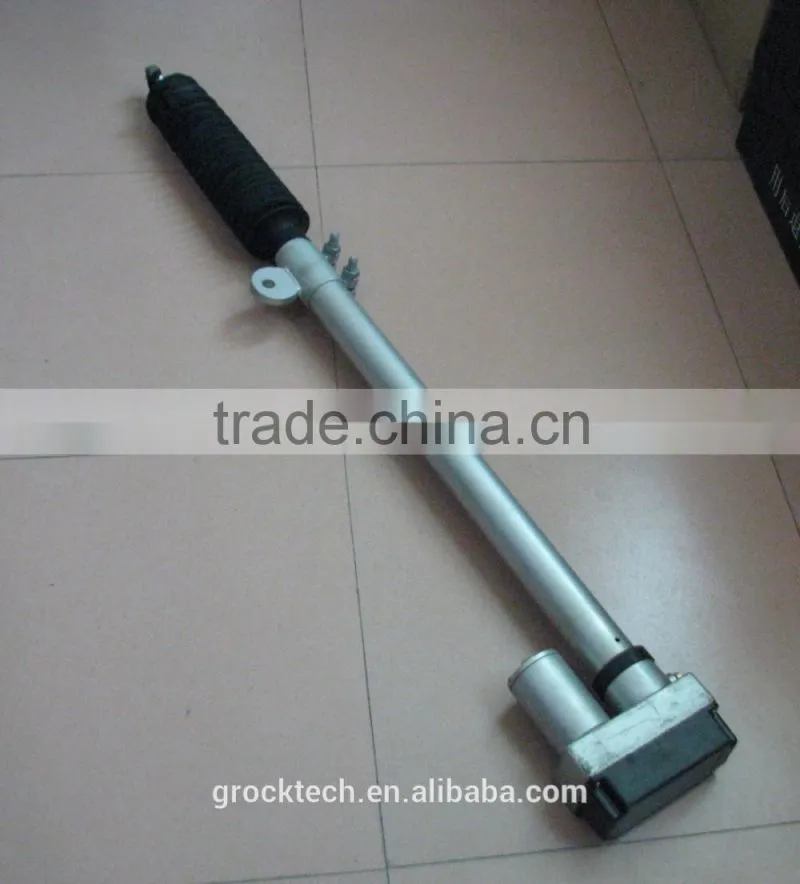

  High pricision solar panel tracking linear actuator with waterproof jacket
High pricision solar panel tracking linear actuator with waterproof jacketHigh pricision solar panel tracking linear actuator with waterproof jacketHigh pricision solar panel tracking linear actuator with waterproof jacket





Why choose G-Rock

1, 10 years manufacturing experience in linear motion.

2, Professional R&D team, can meet non-standard design at any time.

3, Gold supplier for well-known enterprise.

4, A number of large-scale of solar power station project success at home and abroad.

High pricision solar panel tracking linear actuator with waterproof jacket

 High pricision solar panel tracking linear actuator with waterproof jacket



About us

G-Rock technology Co., Ltd found in 2005,  Built as a spin-off from JAEGER INDUSTRIAL CO., LTD,

G-ROCK (old name is JGR industrial co., ltd) has operated since 2005, intergrated the R&D, and grown

up to be a reliable quality products manufacturer in Hong Kong with factories in Dongguan city,China.



Full series of actuators, cover the whole linear industry. sample and bulk production delivery is fast,

Also with 24 hours online service and professional after-sales team.



The factory is located in Dongguan city, the transportation is quite convenient. near Guangzhou port and

Shenzhen port.

High pricision solar panel tracking linear actuator with waterproof jacket
