Home > Electrical & Electronics > Electric Motor > DC Motor > Compact Type 50-700mm Tubular Electrical Actuator With Limit Switch

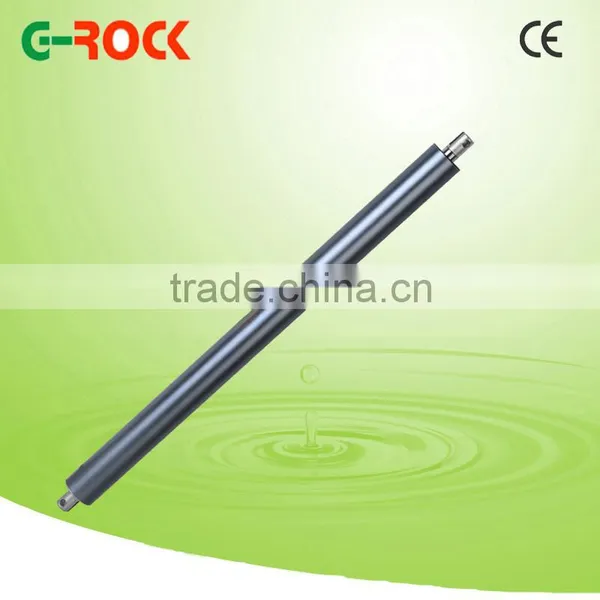

Compact Type 50-700mm Tubular Electrical Actuator With Limit Switch

Compact Type 50-700mm Tubular Electrical Actuator With Limit Switch thumbnail-1
Compact Type 50-700mm Tubular Electrical Actuator With Limit Switch thumbnail-2

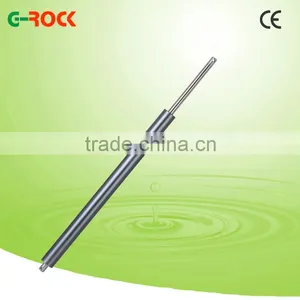

Compact Type 50-700mm Tubular Electrical Actuator With Limit Switch thumbnail-3

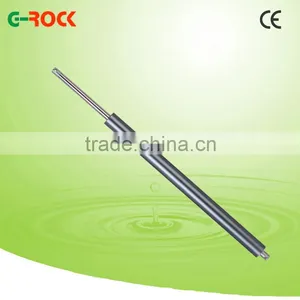

Compact Type 50-700mm Tubular Electrical Actuator With Limit Switch thumbnail-4
Compact Type 50-700mm Tubular Electrical Actuator With Limit Switch thumbnail-5
Compact Type 50-700mm Tubular Electrical Actuator With Limit Switch photo-1

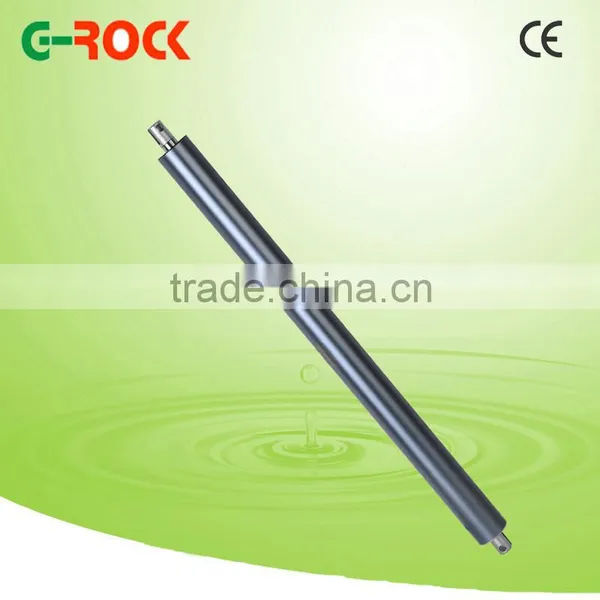

Compact Type 50-700mm Tubular Electrical Actuator With Limit Switch photo-2

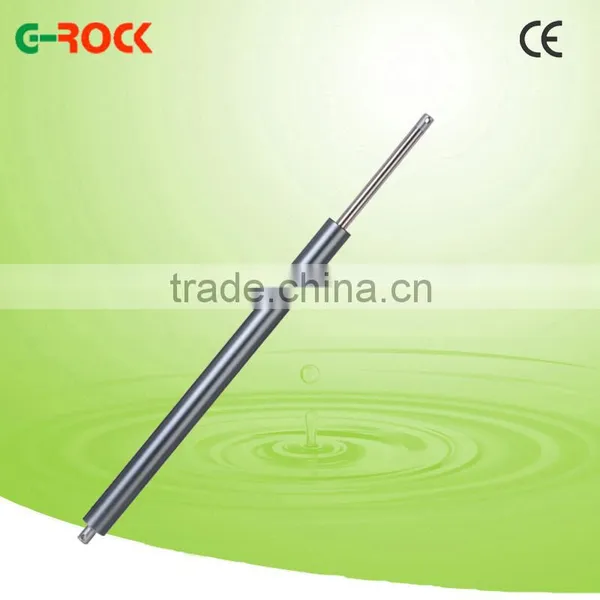

Compact Type 50-700mm Tubular Electrical Actuator With Limit Switch photo-3

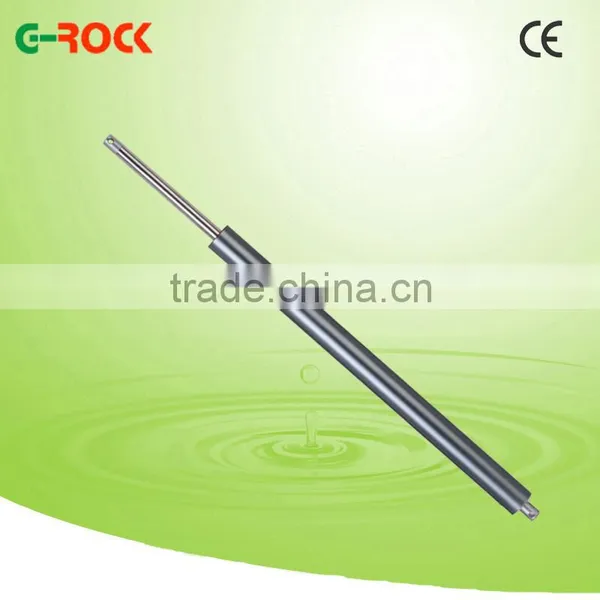

Compact Type 50-700mm Tubular Electrical Actuator With Limit Switch photo-4

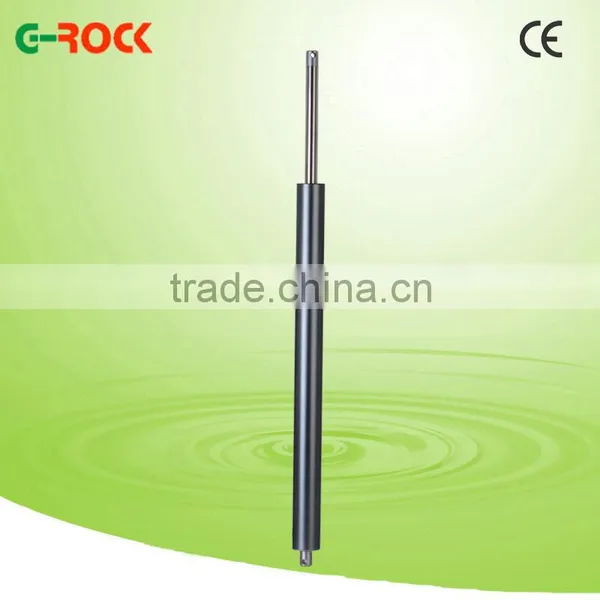

Compact Type 50-700mm Tubular Electrical Actuator With Limit Switch photo-5
US$ 58.00 - 70.00 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
G-ROCK
Model Number:
GRA-L42
Contact Supplier Request Quote Chat Now
Dongguan G-Rock Mechanical And Electronic Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name G-ROCK
Model Number GRA-L42
Usage Boat, Car, Home Appliance
Certification CE, UL
Type Tubular Motor
Torque 1:10
Construction Permanent Magnet
Commutation Brush
Protect Feature Drip-proof
Speed(RPM) 6000RPM
Continuous Current(A) 1.8A
Output Power 8.4W
Voltage(V) 12V/24V
Efficiency IE 1



Feature of Tubular Electrical Actuator

G-Rock tubular electrical actuator, with compact and flexible installation advantage, the thrust from 60-5000N, load speed from 3.5-8.0mm/s, tube diameter with the range 20,30,33,42,50mm, widely used in small automatic industry, side window, etc.



1. Featuring DC, 12 /24V optional;
2.Simple but delicacy design,low noise operation;

3. Tubular motor+Variable speed gear box;

4.  Aluminium alloy tube;

5.  Stroke:S=50-700mm, other stroke can be customized.
6. Self-locking function.
7.  Endurance tests(10000 cycles) are carried out
8.  Duty cycle:10%
9.  Protection class IP66





Parameters

Compact type 50-700mm tubular electrical actuator with limit switch



Drawing & Dimension

Compact type 50-700mm tubular electrical actuator with limit switch

Compact type 50-700mm tubular electrical actuator with limit switch

Parameters



Packaging Detail

 Compact type 50-700mm tubular electrical actuator with limit switch





Photos View

Compact type 50-700mm tubular electrical actuator with limit switch

Compact type 50-700mm tubular electrical actuator with limit switchCompact type 50-700mm tubular electrical actuator with limit switch

Compact type 50-700mm tubular electrical actuator with limit switch

Compact type 50-700mm tubular electrical actuator with limit switch

Compact type 50-700mm tubular electrical actuator with limit switch



Why choose G-Rock

1, 10 years manufacturing experience in linear motion.

2, Professional R&D team, can meet non-standard design at any time.

3, Gold supplier for well-known enterprise.

Compact type 50-700mm tubular electrical actuator with limit switch





About us

G-Rock technology Co., Ltd found in 2005,  Built as a spin-off from JAEGER INDUSTRIAL CO., LTD,

G-ROCK (old name is JGR industrial co., ltd) has operated since 2005, intergrated the R&D, and grown

up to be a reliable quality products manufacturer in Hong Kong with factories in Dongguan city,China.



Full series of actuators, cover the whole linear industry. sample and bulk production delivery is fast,

Also with 24 hours online service and professional after-sales team.



The factory is located in Dongguan city, the transportation is quite convenient. near Guangzhou port and

Shenzhen port.

Compact type 50-700mm tubular electrical actuator with limit switch
