Automatic backwashing plastic disc filters as prefiter of seawater desalination
Product General
Principle descriptions (The video of principle)
Technical parameters
| Model | DLLF-3-3 |
| Design pressure | 1.0Mpa |
| Backwash pressure | 0.2Mpa(min) |
| Flow(max) | 66m3/h |
| Filtration units | 2 |
| Size of filtration units | 2" |
| Filtration range | 100 micron |
| Power supply | 240 v / 50 Hz , AC24V (customized is OK) |
| Control modes | Pressure difference/time/manual/PLC |
| Pipe material | Plastic |
| Filtration units material | Nylon |
| Main accessories | Pipeline;filtration units;differential pressure transducer ;triple backwash valve;air release valve;control box etc. |
Product model selecting
When you are choosing automatic screen filters, please consider the following parameters:
1. Flow capacity( Pipe diameter)
2. Filtration range
3. Shell material
4. Pipeline pressure
5. Chemical properties of the filter medium
6. Suspended solids(SS) concentration of filter medium
The explanation of models
Filtration range selecting
| Main application | Filtration precision(micron) |
| Pretreatment of good quality | 20 |
| Pretreatment of drinking water; production process;protecting nozzle |
50
|
| circulating water; pretreatment of uf/RO |
100
|
| Agricultural irrigation | 120 |
| Wastewater treatment; reclaimed water treatment; Pretreatment of seawater | 200 |
Picture show

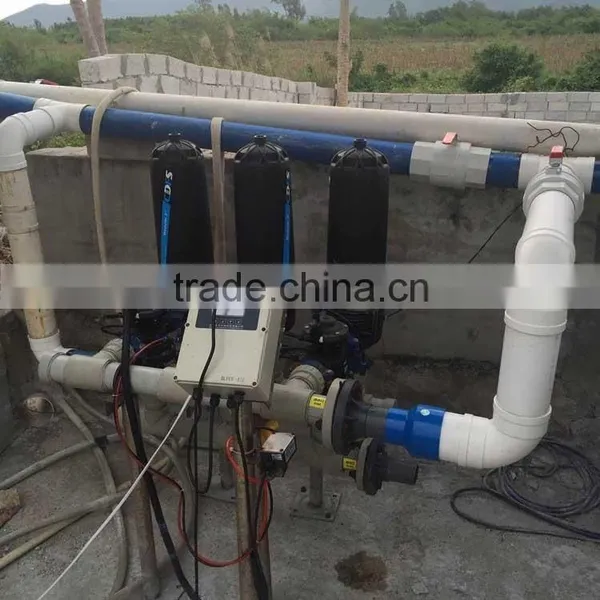

Auto continuous backwash disc filters as pretreatment of sea water desalination
1.Dawning Environmental Protection Technology Co., LTD.is a emerging technology company specialized in environmental water treatment. Our factory covers an area of 13000 square which is domestic largest water filter production base.
2. The main products have self-cleaning filter,disc filter,sand filter etc.
3. We have a few professional engineers with over ten years experience in water filtration technology.
4. Our products have been widely used in circulating water,Ro pretreatment,agriculture irrigation,wastewater treatment and so on.
1.OEM/ODM is availlable.
2.Service for you at any time with an excellent sales tem.
Q: Where is your factory?
A:Changsha city,Hunan province, China
Q:Can you accept OEM?
A:Yes.We could do OEM for you.
Q: Do you have a certification?
A: Yes. we have ISO / CE certificate and certificate of patent
Q: How about the delivery tme?
A: Usually 7-15 days after prepayment is confirmed.
Q:Do you have a design team?
A:Yes,we have.Providing outline drawning,electric drawning and others.
Q:Can you send me a sample?
A: Yes.But it is not for free.
Q. :What is your payment?
A: T/T,T/C,Western Union,Paypal.
Q:How can I contact you?
A:You could contact me by email or Trademanager or others.
We will select suitable model according to water source and actual situation.
If you have any question, please don't hesitate to contact us.
