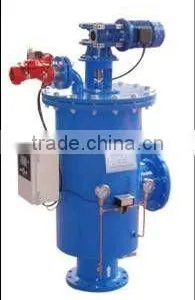

Help CenterBig Flow Capacity 200 Micron Auto-sucking Filter
Related Products
-
Carbon Steel Material High Efficiency Water Filter Self-cleaningUS$ 50 - 1,500MOQ: 1 Set -
PP Cotton High Quality Self-cleaning Air FilterUS$ 1 - 50MOQ: 1 Piece
-
Air Cleaning Type Air Filter China Top BrandUS$ 500 - 10,000MOQ: 1 Set
-
High Efficiency Back-washing Industry Water FilterUS$ 1,000 - 5,500MOQ: 1 Set
-
500micron High Quality Backwashing StrainerUS$ 1 - 50MOQ: 1 Set
Introduction:
The AXF series of auto-sucking filter is an intelligent automatic filter with the world’s leading technology . compared with the traditional filter has a high degree of automation , large capacity , self-sucking sewage , uninterrupted water supply , wide range of applications , etc . This filter has high micron rating , washing time short , few water consumption ,small pressure loss . etc . can provide a reliable standard to you .

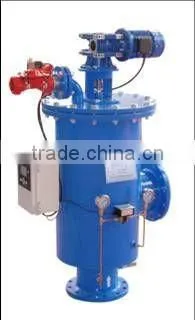

Structure:
The filter is equipped with intelligent control systems and power-driven , self-sucking device . The control system is equipped with pressure , timing , manual three control methods , real-time online display equipment operating status and set aside the output interface , allowing remote monitoring . With overload protection and no-load protection and alarm functions .
This filter is widely used in chemical industry , metallurgy , paper , electricity , mining , water and other industries of the source water , cooling water , water , white water , next to water treatment , recycling water and chilled water filtration .
Operating principle:
The raw water flows from the inlet into the filter cartridge internal , and then was blocked in the filter tube wall from the inside to outside through the filter , impurities is intercept on the filter cartridge inner wall ,filtered clean water outflow from the outlet , filter cake formed on the surface of the cartridge when the cartridge wall impurities piled , and cartridge gradually formed inside and outside pressure , when the pressure hit the default value of the differential pressure controller will start automatically sucking procedure .
Filter sucking process is to rely on the surface of the spiral motion of sucking scanner and a drain valve together to complete along the cartridge , open the drain valve so that the sucking nozzle front end of the scanner generated at very high backwash flow rate and the formation of vacuum negative pressure zone , attached to the cartridge inner wall of the cake is the suction and discharge . The whole sucking process about 60 seconds , sucking the system continues to flow .
Model and size:
Model |
Nominal diameter(mm) |
Nominal flow rate(m3/h) |
Micron rating(um) |
Pressure P(MPa) |
Pressure loss(MPa) |
Housing material |
|
Initial |
Max |
||||||
AXF-80×* |
80 |
50 |
Micropore plate≥500 Wedge-shape net≥100 Mesh gride≥20 |
1.6 |
≤0.1 |
0.4 |
Stainless steel Carbon steel |
AXF-100×* |
100 |
80 |
|||||
AXF-125×* |
125 |
105 |
|||||
AXF-150×* |
150 |
150 |
|||||
AXF-200×* |
200 |
320 |
|||||
AXF-250×* |
250 |
450 |
|||||
AXF-300×* |
300 |
600 |
|||||
AXF-350×* |
350 |
850 |
|||||
AXF-400×* |
400 |
1200 |
|||||
Model |
Size(mm) |
Blow off time(s) |
Weight(kg) |
||||||
DN |
L |
L1 |
L2 |
H |
D |
D1 |
|||
AXF-80×* |
80 |
500 |
1040 |
1270 |
317 |
273 |
40 |
30-60 |
148 |
AXF-100×* |
100 |
520 |
1040 |
1270 |
317 |
273 |
40 |
151 |
|
AXF-125×* |
125 |
540 |
1090 |
1320 |
342 |
325 |
40 |
255 |
|
...
