Specifications
1.Quick installation2.Professional design
3. Safety Guarantee
4.Preservative Treatment
The Sunforson SunRack Solar Ground Mounting System has been developed as a universal solar module mounting system for open ground installations.
Specification
Installation Site: |
open field |
Wind Load: |
130mph(60m/s) |
Snow Load: |
30psf(1.4kN/m2) |
Applicable Module: |
Framed or Thin Film |
Module Orientation: |
Vertical |
Standard: |
IBC AS/NZS 1170 |
Material: |
Aluminum 6005-T5, Stainless steel |
Module Width |
Any |
Support Rail |
Extruded aluminum |
Warranty: |
10 years |
Products Strengths of Sunforson technology
Quick installation, saving schedule
with the professional design, Sunforson PV system composed by a small number of assembly (assembly of
parts in advance), no on-site drilling or welding, can be quickly assembled on site, unique pieces of
aluminum card guide and installation design, improve the installation efficiency, saving schedule.
Professional design, lower costs
Product were design by experienced designers, to meet the AS / NZS1170 , with mature process maturity,
stable structure, systematic design to save cost for the customers.
Load design, Safety Guarantee
Sunforson Ground PV bracket system design, have high load capacity, applications take
full account of dynamic load and static load characteristics. Such as: component weight, combine factors of
wind, snow and earthquake load, to ensure the long-term performance of the product.
Preservative Treatment, increase service life
Sunforson ground PV bracket system provides aluminum oxide and stainless steel
components, which is easy for maintenance; the product can meet the general outdoor service life of 25
years PV module requirements.

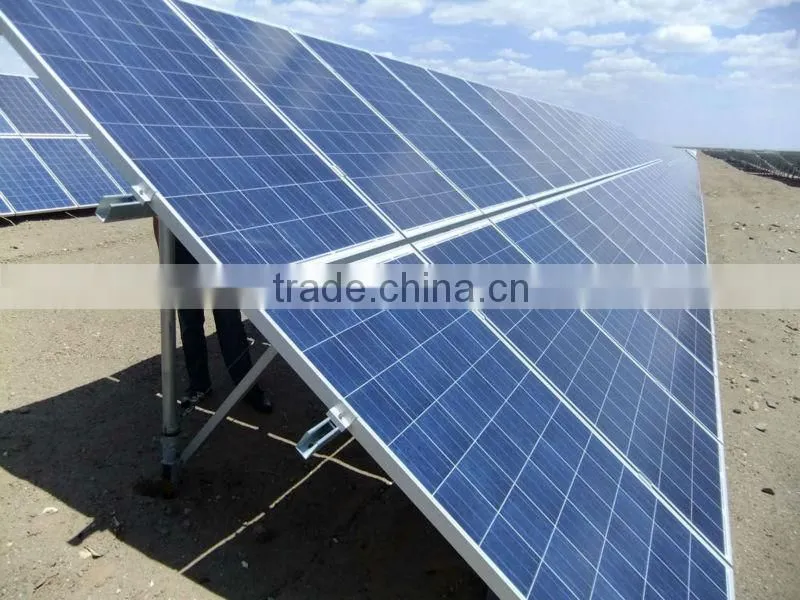

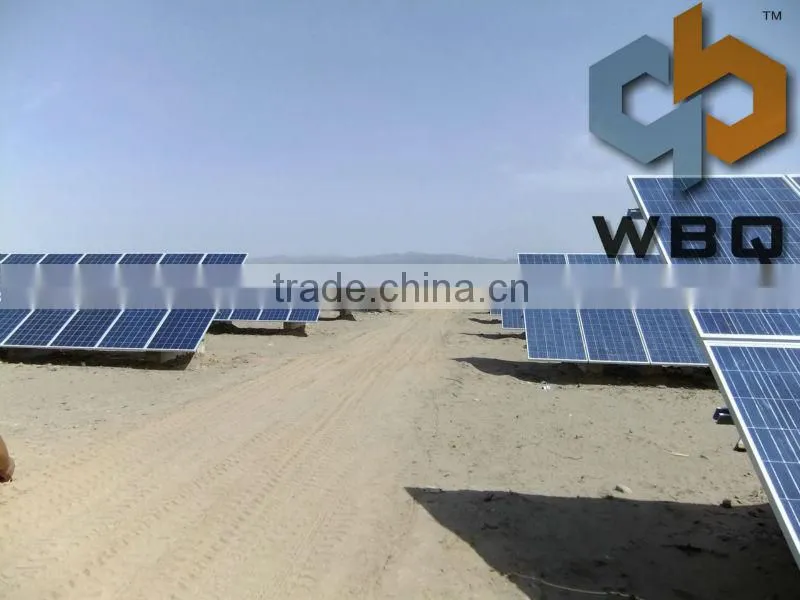

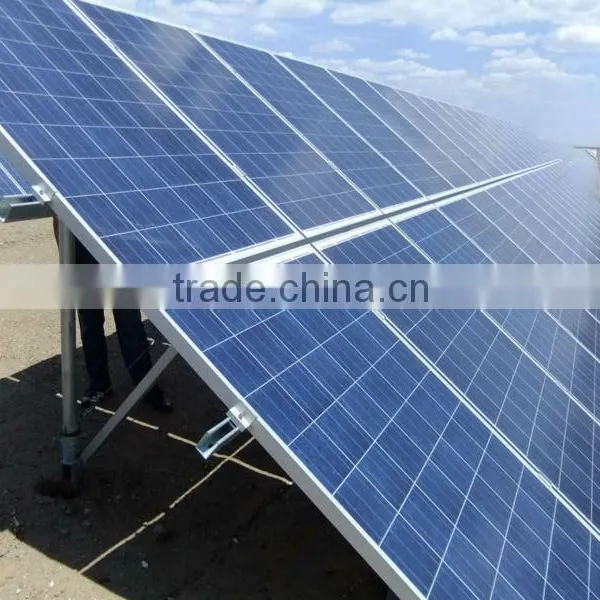

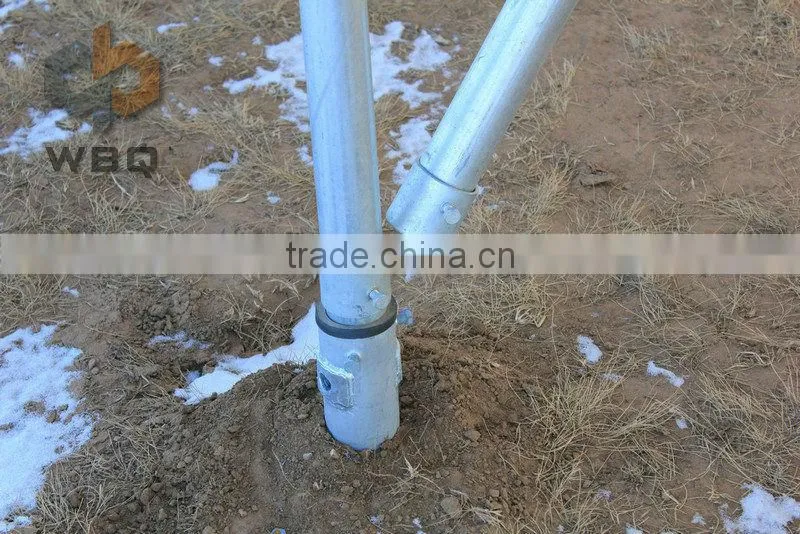

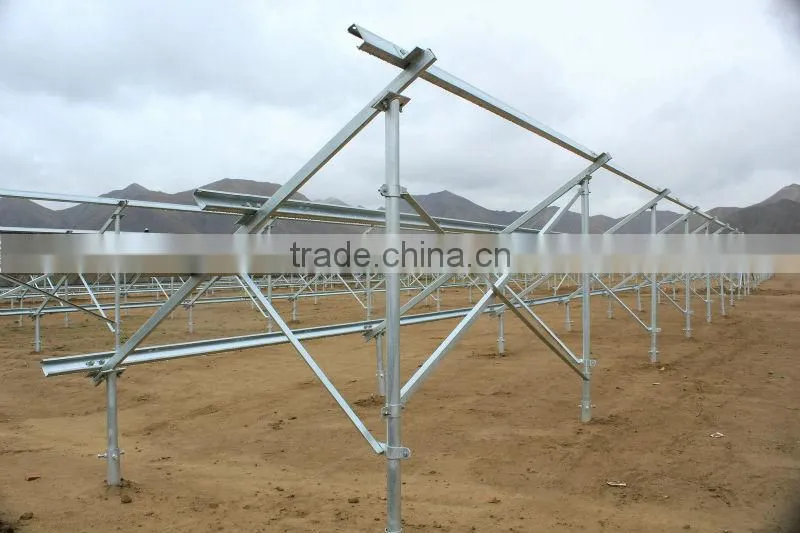

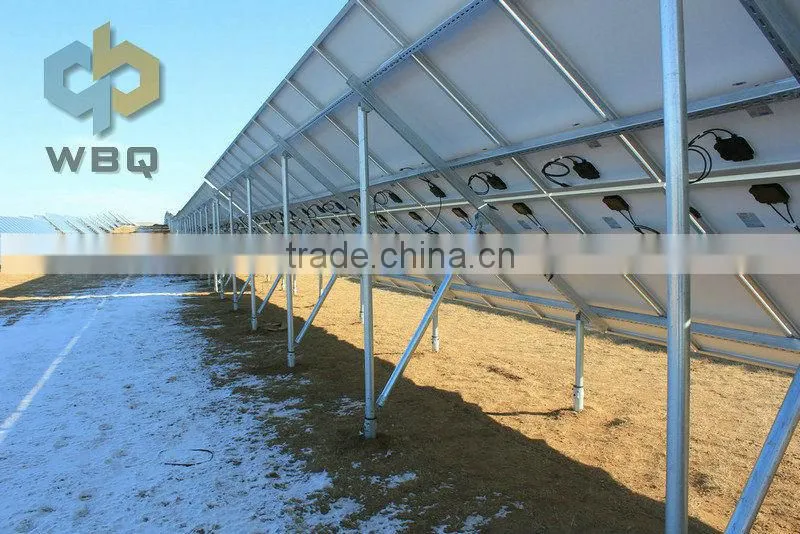

pictues show,
