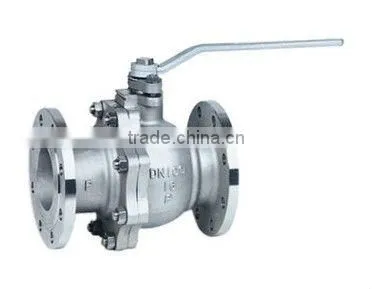

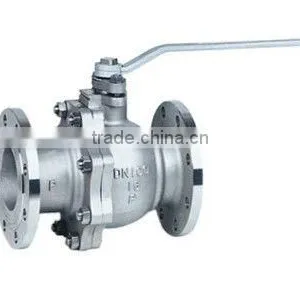

API WCB Stainless Steel Manual Ball Valve

US$ 10 - 1,000 MOQ: 1 Piece

Key Specifications

Standard or Nonstandard:

Standard

Structure:

Ball

Pressure:

Medium Pressure

Wenzhou Jiasheng Valve Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo shanghai

Delivery Detail:

Delivery time depends on order quantity.

Standard or Nonstandard Standard

Structure Ball

Pressure Medium Pressure

Power Manual

Material Stainless Steel

Temperature of Media Normal Temperature

Media Water

Place of Origin Zhejiang, China

Model Number API

Brand Name JSV

Specifications

Manual Ball Valve
1.Nominal Diameter:2"~40"
2.Nominal Pressure:PN less than 900Lb

Manual Ball Valve
1.Nominal Diameter:2"~40"
2.Nominal Pressure:PN less than 900Lb

API WCB Manual Ball Valve

Unit:mm

DN DN	Main external and connectiong dimensions	WT (kg)
L	D	D1	D2	b	Z-Φd	H	W
Q41F-16C Q41F-16P Q641F-16C Q641F-16P Q9B41F-16C Q9B41F-16P
15	130	95	65	45	14	4-Φ14	78	140	3
20	140	105	75	55	14	4-Φ14	84	160	4
25	150	115	85	65	14	4-Φ14	95	180	5
32	165	135	100	78	16	4-Φ18	150	250	9
40	180	145	110	85	16	4-Φ18	150	300	11
50	203	160	125	100	16	4-Φ18	170	350	15
65	222	180	145	120	18	4-Φ18	195	350	19
80	241	195	160	135	20	8-Φ18	215	400	27
100	305	215	180	155	20	8-Φ18	250	500	38
125	356	245	210	185	22	8-Φ18	265	600	58
150	394	280	240	210	24	8-Φ23	270	800	81
200	457	335	295	265	26	12-Φ23	330	800	95
250	533	405	355	320	30	12-Φ25	450	1300	140

Fixed Ball Valve

Unit:mm

DN DN	Main external and connectiong dimensions									WT (kg)
DN DN	L	D	D1	D2	b	Z-Φd	H	H1	Do	WT (kg)
Q47F-16C Q67F-16C Q47F-16P Q347F-16C Q367F-16C Q347F-16P Q647F-16C Q667F-16C Q647F-16P Q747F-16C Q767F-16C Q747F-16P Q9B47F-16C Q9B67F-16C Q9B47F-16P
50	178	160	125	100	16	4-Φ18	177	120	-	15
65	191	180	145	120	18	4-Φ18	190	140	-	19
80	203	195	160	136	20	8-Φ18	210	150	-	27
100	229	215	180	155	20	8-Φ18	235	172	-	38
125	356	245	210	185	24	8-Φ18	350	215	-	58
150	394	280	240	210	24	8-Φ23	530	250	-	81
200	457	335	295	320	30	12-Φ23	620	290	600	140
250	533	405	355	320	30	12-Φ25	650	320	600	160
300	610	460	410	375	30	12-Φ25	780	360	600	205
350	686	520	470	435	34	16-Φ25	790	395	800	260
400	762	580	525	485	36	16-Φ30	920	450	800	390
450	864	640	585	545	40	20-Φ30	970	490	800	510
500	914	705	650	608	44	20-Φ34	1100	530	800	750
600	1067	840	770	718	48	20-Φ41	1150	590	800	1200
700	1245	910	840	788	50	24-Φ41	1850	700	800	2100
