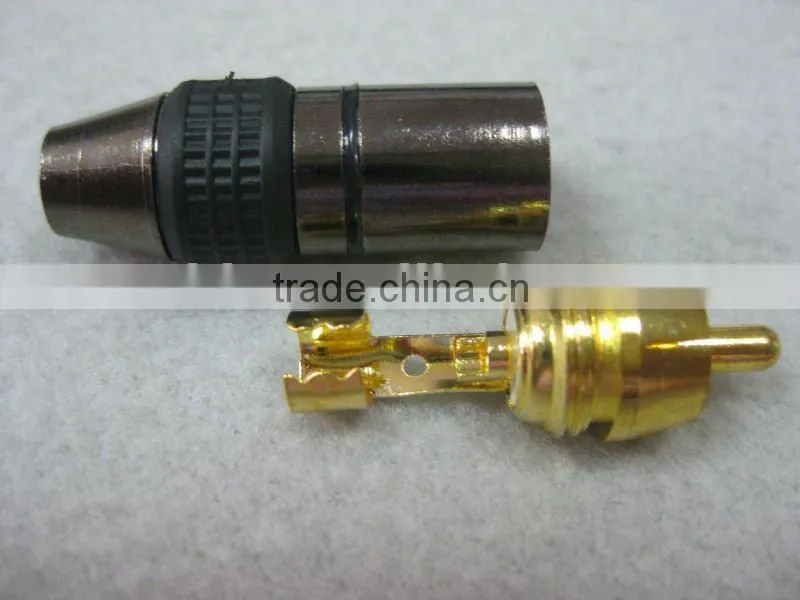

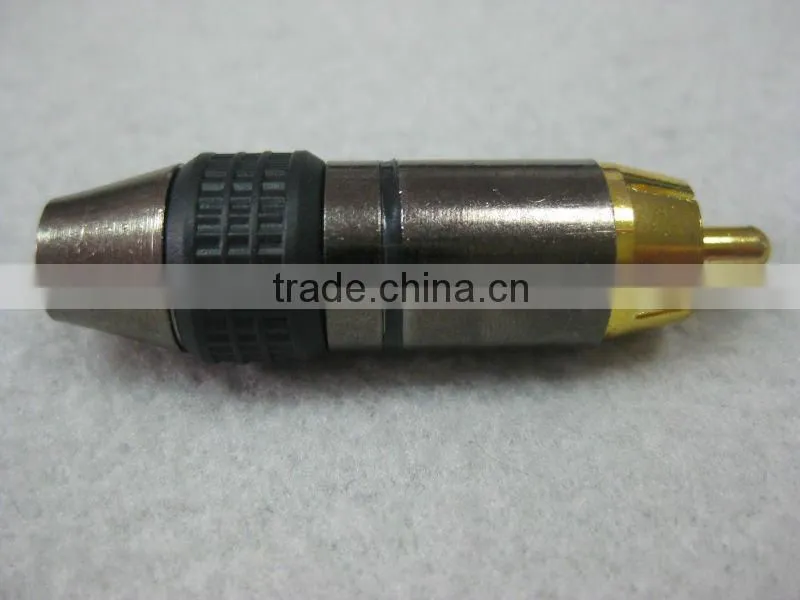

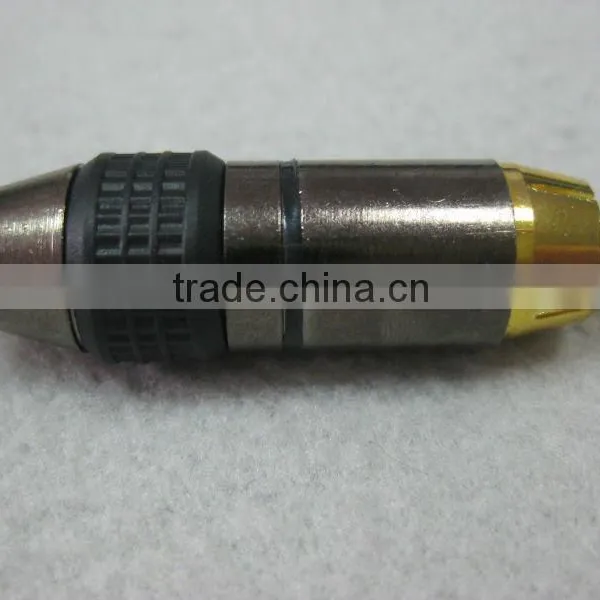

Help CenterRCA Connector Brass Material Gold and Black Nickel Plating Rohs Comliant
Related Products
-
Rca Connector Black Color Plastic Part Rohs ComliantUS$ 0.01 - 0.02MOQ: 1 Piece -
Rca Connector Brass Material Gold PlatingUS$ 0.01 - 0.02MOQ: 1 Piece
-
RCA Female Adaptor Gold Plating Red and Black Plastic Part PlatingUS$ 0.01 - 0.02MOQ: 1 Piece
-
RCA Female Adaptor Brass Material Gold Plating Rohs ComliantUS$ 0.01 - 0.02MOQ: 1 Piece
-
RCA Male Adaptor Brass Material Gold Plating Rohs ComliantUS$ 0.01 - 0.02MOQ: 1 Piece
Specifications
RCA connectorrca plug
rca male connector
rca gold connector brass material gold and black nickel plating rohs comliant
rca connector
rca male connector
rca gold connector
rca plug
rca connector
1brass/zinc
2 Plating: nickel/gold
3 wide frequency range,nice looking
4 ROSH,high quality, competitive price
RCA JACK connector:
Impedance: 50Ω
Temperature Range: -55~+155 oC
Vibration: 100m/s2 (10-500Hz)10g
Frequency Range: DC~7.5GHz
Working Voltage: 2700V r.m.s at sea level
Withstanding Voltage: 4000V r.m.s at sea level
Contact resistance:
Center contact ≤0.4 mΩ
Outer contact ≤ 1.5 mΩ
Insulation resistance : ≥ 10000 M Ω
Average power 3kw max
Center conductor retention force ≥6N
Voltage standing wave ratio
Durability(mating) ≥500 (cycles)
Insulator: PTFE
Body: brass & gold plated
Pin contact: brass & gold plated
Socket contact: beryllium-copper & gold plated.
Crimp ferrule: copper alloy & nickel or gold plated
o-ring sealing: 6146 sllicone rubber.
Resilient contact: beryllium-copper & gold plated.
