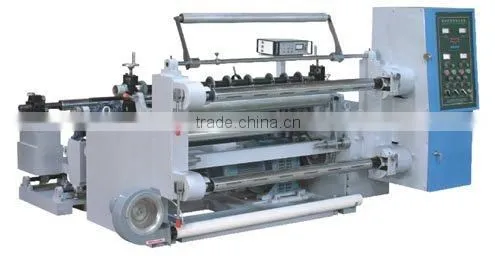

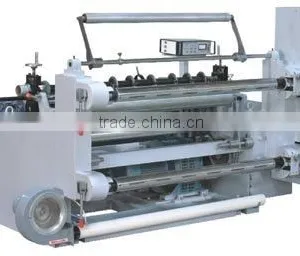

YAD-Model Series of Horizontal Slitting Machines
US$ 10,000 - 200,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
xintai
Model Number:
YAD-A
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Model YAD Series Vertical Automatic Separating Cutting MachineNegotiableMOQ: 1 Set -
YAD-Series of Microcompter Control Auto Slitting MachinesUS$ 10,000 - 200,000MOQ: 1 Set
-
YAD-series High-speed Slitting MachineUS$ 10,000 - 300,000MOQ: 1 Set
-
WFQ700-1300 Series Horizontal Type Computer Slip-separating MachineUS$ 10,000 - 200,000MOQ: 1 Set
-
High Speed Slitting & Rewinding MachineUS$ 1,000 - 20,000MOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
xintai
Model Number
YAD-A
Specifications
USE:Machines in this series are suitable for stripping of backing materials such as self-adhesive ,aluminum foil, insulation p
FEATURE:
1.Photoelectric auto tracing and error correction devices.
2.Magnetic powder tension control.
3.Auto metering and waste scrap air-blowing devise.
| Model | YAD-A/700 | YAD-A/1100 | YAD-A/1300 |
| Diameter of Width | 700mm | 1100mm | 1300mm |
| Unwinding Diameter | 800mm | 800mm | 800mm |
| Rewinding Diameter | 600mm | 600mm | 600mm |
| Speed of parting cut | 10-160m/min | 10-160m/min | 10-160m/min |
| Power of electric machine | 3kw | 4kw | 4.5kw |
| Weight of overall | 2000kg | 2200kg | 2500kg |
| Overall dimension | 2500X1900X1350mm | 2500X2300X1350mm |
